6.5" 2011-2019 Chevy Silverado 2500HD/3500HD (w/diesel engine) Fox 2.5 CoilOver Lift Kit by BDS Suspension

Transform the performance of your 2011–2019 Chevy Silverado diesel with the BDS 6.5-inch Coilover Conversion Lift Kit. This premium suspension system replaces the factory torsion bar suspension with FOX 2.5 Performance Elite DSC coilovers, delivering exceptional ride quality, increased suspension travel, and outstanding off-road capability while maintaining confident on-road handling.

Designed for enthusiasts who demand maximum performance, this system completely re-engineers the front suspension with heavy-duty BDS tubular upper control arms, fully boxed and gusseted lower control arms, and precision differential relocation brackets to optimize suspension geometry and CV axle angles. The result is a stronger suspension capable of handling larger tires, rough terrain, and demanding driving conditions.

The included FOX 2.5 Performance Elite coilovers feature large 2.5-inch aluminum bodies, remote reservoirs, and race-proven Internal Floating Piston (IFP) technology for outstanding heat dissipation and fade-free performance. Standard DSC (Dual Speed Compression) adjusters allow independent tuning of both high-speed and low-speed compression, making it easy to fine-tune ride quality for daily driving, towing, or aggressive off-road use.

BDS tubular upper control arms utilize 1.5-inch DOM tubing with indexed ball joint cups to improve suspension travel while maintaining proper ball joint geometry. Fully boxed lower control arms add strength and rigidity while greaseable ball joints and maintenance-free rubber bushings provide long-lasting durability and quiet operation.

In the rear, replacement lift blocks maintain factory ride quality and load capacity while optional 3-inch or 5-inch block configurations allow you to fine-tune your truck's stance. A U-bolt flip kit increases ground clearance, while your choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks completes the suspension package.

Designed to clear up to 37-inch tires, the BDS 727PSS offers premium ride quality, exceptional off-road capability, and the legendary durability BDS Suspension is known for. It is also backed by the BDS Factory Protection Plus Drivetrain Warranty for additional peace of mind.

All possible SKUs depending on options selected: BDS727PSS BDS727PES BDS728PSS BDS728PES BDS729PSS BDS729PES BDS730PSS BDS730PES

Features & Benefits

• Fits 2011–2019 Chevy Silverado and GMC Sierra 2500HD/3500HD diesel models
• Provides 6.5 inches of front suspension lift
• Converts factory torsion bar suspension to premium coilover suspension
• FOX 2.5 Performance Elite DSC remote reservoir coilovers included
• Dual Speed Compression (DSC) adjusters independently tune high- and low-speed compression
• Remote reservoirs improve cooling and reduce shock fade
• Heavy-duty BDS tubular upper control arms increase strength and suspension travel
• Fully boxed and gusseted lower control arms improve rigidity and durability
• Differential relocation brackets maintain proper CV axle angles
• Greaseable ball joints and maintenance-free rubber bushings
• Replacement rear lift blocks retain factory ride quality and load capacity
• U-bolt flip kit increases ground clearance
• Choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks
• Clears up to 37-inch tires with proper wheel specifications
• Backed by the BDS Factory Protection Plus Drivetrain Warranty

Recommended Tire & Wheel Combinations

• 37x12.50 on 17x9 wheels with 4.75-inch backspacing
• 37x12.50 on 18x9 wheels with 4.75-inch backspacing
• 37x12.50 on 20x9 wheels with 4.75-inch backspacing
• Minor trimming may be required depending on wheel offset and tire selection

Rear Lift Options

• 3-inch rear block: Produces a slightly tail-low stance
• 5-inch rear block: Provides a level to slightly tail-high stance and includes a U-bolt flip kit

FOX Rear Shock Options

• FOX 2.0 Performance Series — 2-inch aluminum IFP monotube shocks with application-specific valving
• FOX 2.5 Performance Elite Series — Remote reservoir shocks with DSC adjusters for maximum off-road performance and fully rebuildable construction

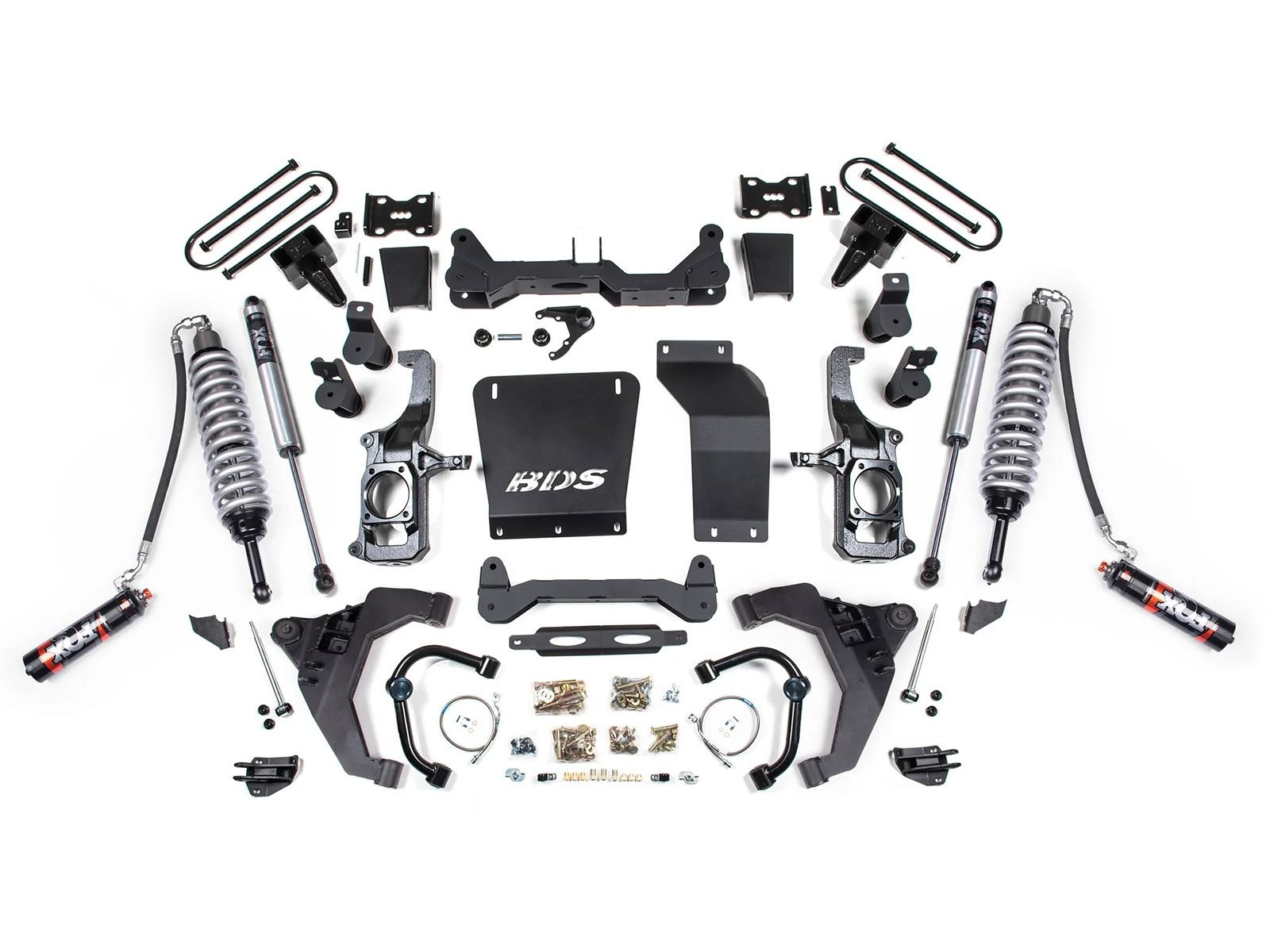

What's Included

• FOX 2.5 Performance Elite DSC front coilovers
• BDS tubular upper control arms
• BDS fully boxed lower control arms
• Differential relocation brackets
• Sway bar links
• Rear lift blocks
• U-bolt flip kit (with applicable rear block option)
• Rear FOX shocks (based on selected option)
• Installation hardware and brackets
