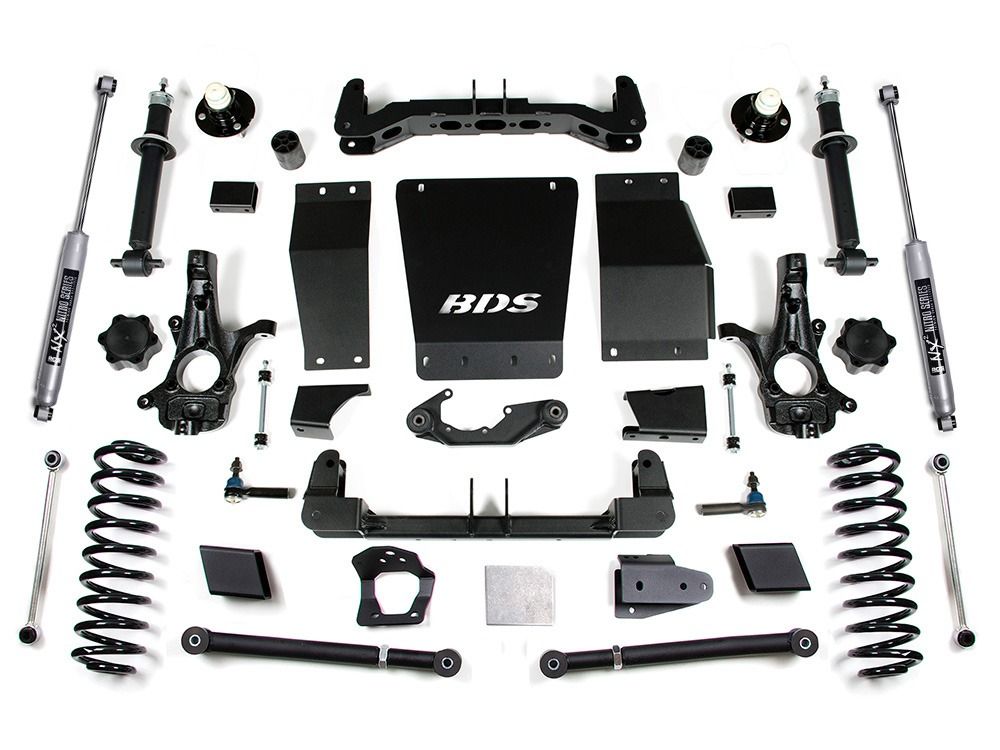

This BDS Suspension BDS731H 6" IFS lift kit for the GMC Yukon and Yukon XL1500 models will allow for use of up to 35 inch diameter tires and give your SUV a much more aggressive stance. Featured are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe and correct suspension and steering geometry to be compatible with the factory installed ESC system. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. In place of the stock struts, BDS supplies a pair of high pressure gas struts for improved performance and ride quality. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser cut BDS skid plate.

Pro-Ride coil springs lift the rear 5 inches to give a level stance and improve off-road performance and increase travel from the rear suspension. Heavy duty adjustable upper control arms are included along with a track bar relocation bracket and support brace and longer sway bar links to maintain proper suspension geometry.

Top Features

• 6 inch front lift / 5 inch rear lift, for level stance
• Allows for use of 35 inch tires
• Premium Quality Components
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 8 Hours

Tire and Wheel Combinations:

• 32 inch x 12.5 inch w/ 17 x 9 and 4.5 inch back spacing
• 34 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
• 35 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing



Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
