6" 2015-2019 Chevy Suburban 1500 / Tahoe 4WD Lift Kit by BDS Suspension

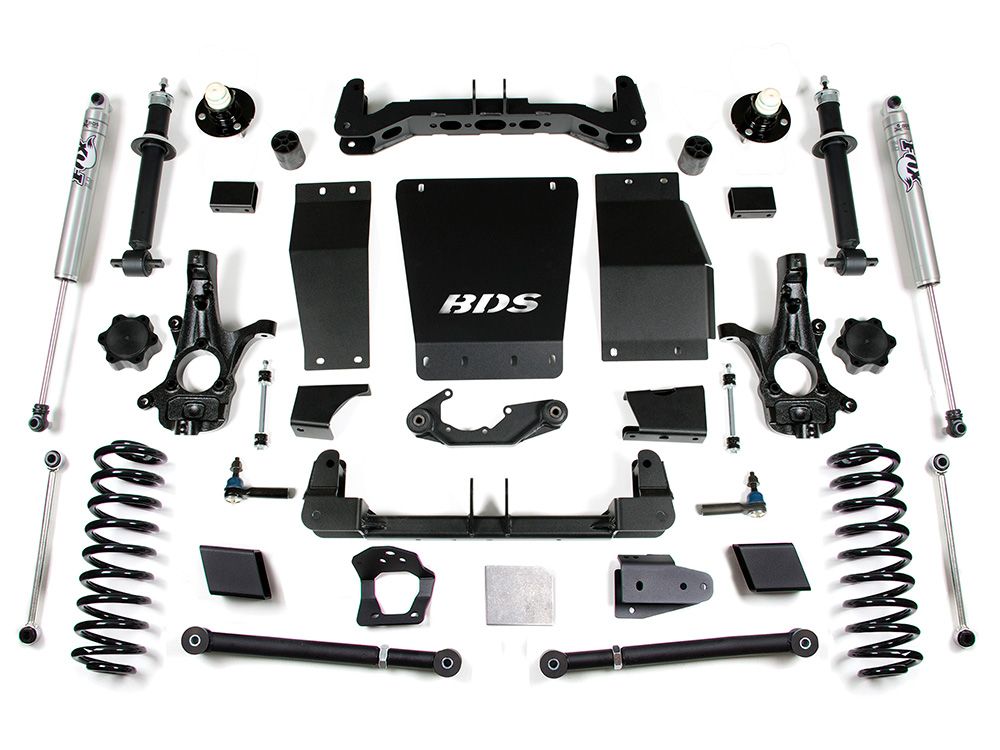

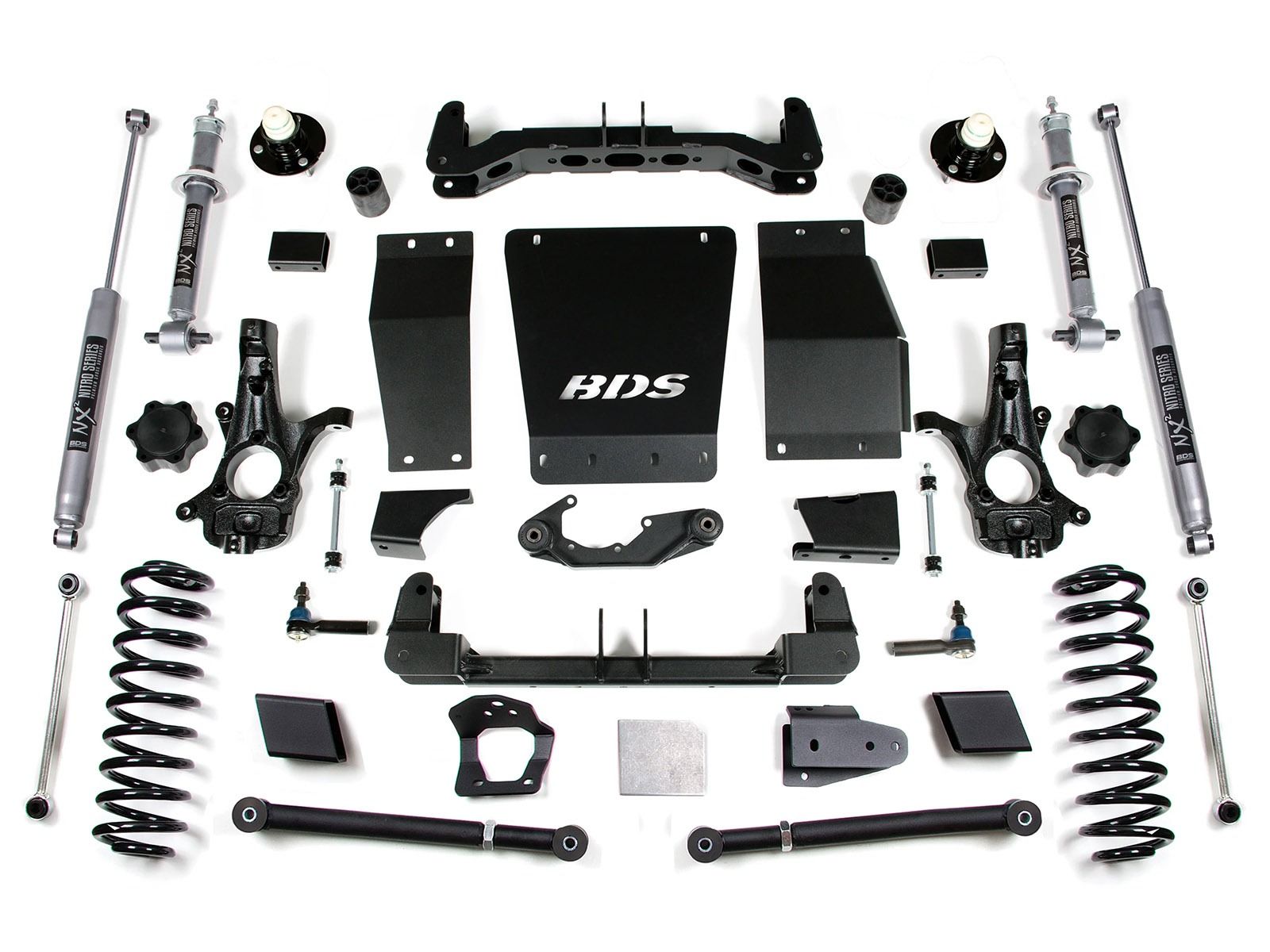

This BDS Suspension BDS731H / BDS731FS / BDS732H / BDS732FS 6" IFS lift kit for the Chevy Tahoe and Suburban 1500 models will allow for the use of up to 35-inch diameter tires and give your SUV a much more aggressive stance. Featured are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. These, combined with the CNC-machined ductile iron replacement steering knuckles, create a solid subframe and correct suspension and steering geometry to be compatible with the factory-installed ESC system. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. In place of the stock struts, BDS supplies a pair of high-pressure gas struts for improved performance and ride quality. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser-cut BDS skid plate.

Pro-Ride coil springs lift the rear 5 inches to give a level stance, improve off-road performance, and increase travel from the rear suspension. Heavy-duty adjustable upper control arms are included along with a track bar relocation bracket, support brace, and longer sway bar links to maintain proper suspension geometry.

Top Features

• 6-inch front lift / 5-inch rear lift, for level stance
• Allows for the use of 35-inch tires
• Premium Quality Components
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 8 Hours

Tire and Wheel Combinations:

• 32 inch x 12.5 inch w/ 17 x 9 and 4.5 inch back spacing
• 34 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
• 35 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing



Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
