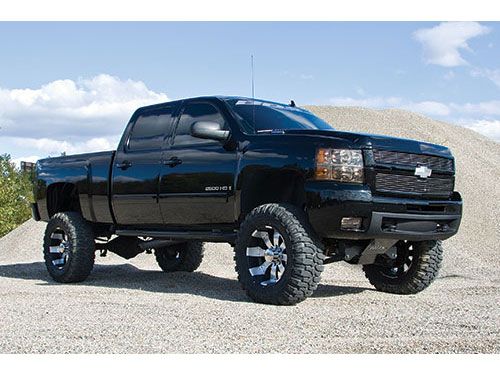

4.5" 2001-2010 GM 2500/3500 4WD Coil-Over Lift Kit

$4,653.05

4.5 inch Front / 3 inch Rear Suspension Lift Kit

Free Shipping if you spend $99 or more!
*to lower 48 continental US only.
*Truck Freight items and certain sale items are not Included.

- +
More Information
More Information
Item Number bds_740fdsc
Manufacturer Part Number 740FDSC
Description

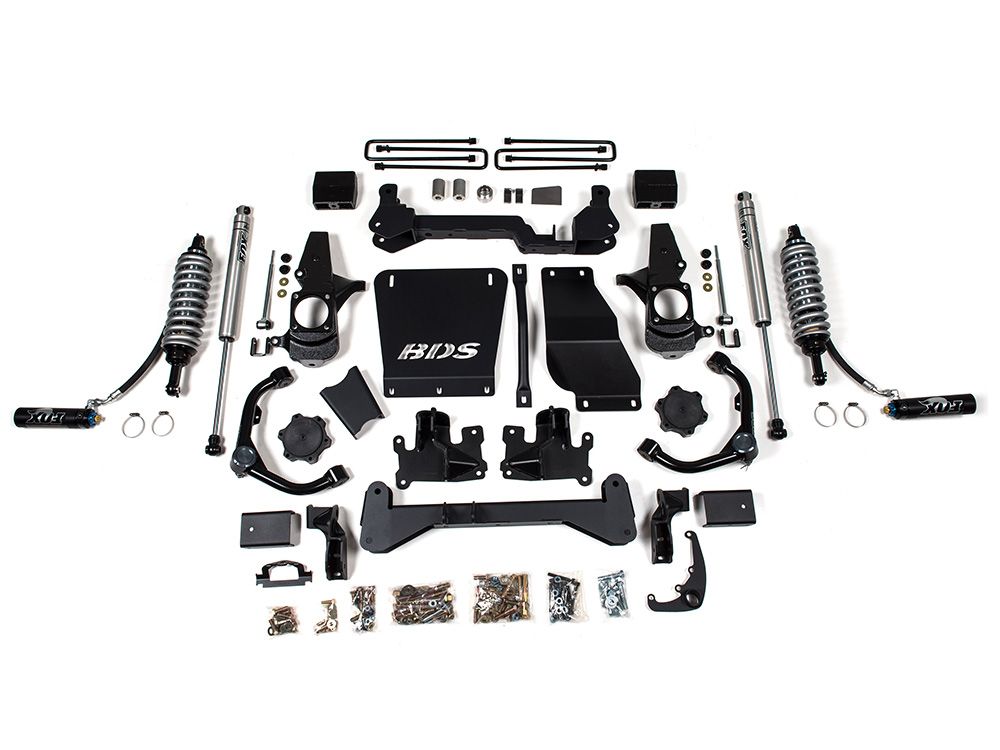

This system builds on the BDS high clearance system design offering more ground clearance or correct suspension, steer, driveline geometry and pairs it with the race proven pedigree of FOX 2.5 factory series coilovers to soak up the harshest terrain while still offering comfort and control for your daily commute. The coilovers come pretuned and ready to install right out of the box featuring dual speed compression (DSC) adjusters on the reservoir for easy tuning of the high-speed and low-speed compression damping without the need for special tools. To mount the coilovers BDS supplies a bolt-on bracket that installs on the frame in the shock mount location along with a weld-in support gusset is used to reinforce the upper mount.

In addition to replacing the factory torsion bars, the upper control arms (UCA) are upgraded to improved strength, travel, and accommodate the new coilovers. The uppers are new performance series upper control arms designed specifically for this system to integrate with the 2.5 coilovers. The arms are fabricated from large 1.5" OD x .120-wall tubing, fully welded and gusseted for the highest quality, strength and durability. The factory cast steel lower control arms are retained with the addition of a robust lower coilover mounting bracket. Along with the coilover conversion, these 4.5" coilover systems include a pair of one-piece laser cut high clearance crossmembers, CNC machined ductile iron steering knuckles to correct steering angles, heavy duty front skid plate and differential skid plate to increase protection, multipoint differential relocation brackets to secure differential and correct CV axle angles, CV spacers, and longer sway bar links. In the rear a 3" rear block and u-bolt kit is used to level the stance while a set of FOX 2.0 performance series IFP shocks are supplied to pair with the front coilovers for impressive performance wherever your the adventures lead you.

This highly customizable kit gives you the choices you need to build your rig your way. Standard or narrow track knuckle kits, gas shocks, and dual steering stabilizers are just a few of the options and upgrades available for this 4-1/2" Chevy/GMC suspension lift kit.

Tire and Wheel Combinations:
2001-2007 Classic Body Style
- 33 inch x 12.50 inch w/16 x 8 and 4-1/2 inch back spacing
- 35 inch x 12.50 inch w/17 or 18 x 9 and 5.5 inch back spacing
- 35 inch x 12.50 inch w/20 x 9 and 5.75 inch back spacing

2007-2010 New Body Style
- 33 inch x 12.50 inch w/16 x 8 and 4-1/2 inch back spacing
- 33 inch x 12.50 inch w/17 or 18 x 9 and 5.5 inch back spacing
- 33 inch x 12.50 inch w/20 x 9 and 5.75 inch back spacing

Est. Installation: 8-10 hours
Difficulty Level (easy 1 - 5 complicated): 4

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

About BDS/Zone's Warranty

Installation Instructions

Important Notes Torsion Bar tool required to load/unload the torsion bars.
Some welding required.
Requires frame bracket modification and differential mount modification.
Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
Gas models require exhaust modification.
Narrow track knuckle will slightly increase turning radius.
For tail high stance use #119157 add-a-leaf with the block kit or #069207 with leaf spring kit.
Manufacturer BDS Suspension
Make Chevy, GMC
Model 2500 Pickup, 3/4 ton Pickup, K20 Pickup, K2500 Pickup, 2500 Silverado, 2500 Sierra, 3500 Pickup, 1 ton Pickup, K30 Pickup, K3500 Pickup, 3500 Silverado, 3500 Sierra
Year Spans 2001,2002,2003,2004,2005,2006,2007,2008,2009,2010
Lift Height 4 inch
2WD/4WD 4WD
