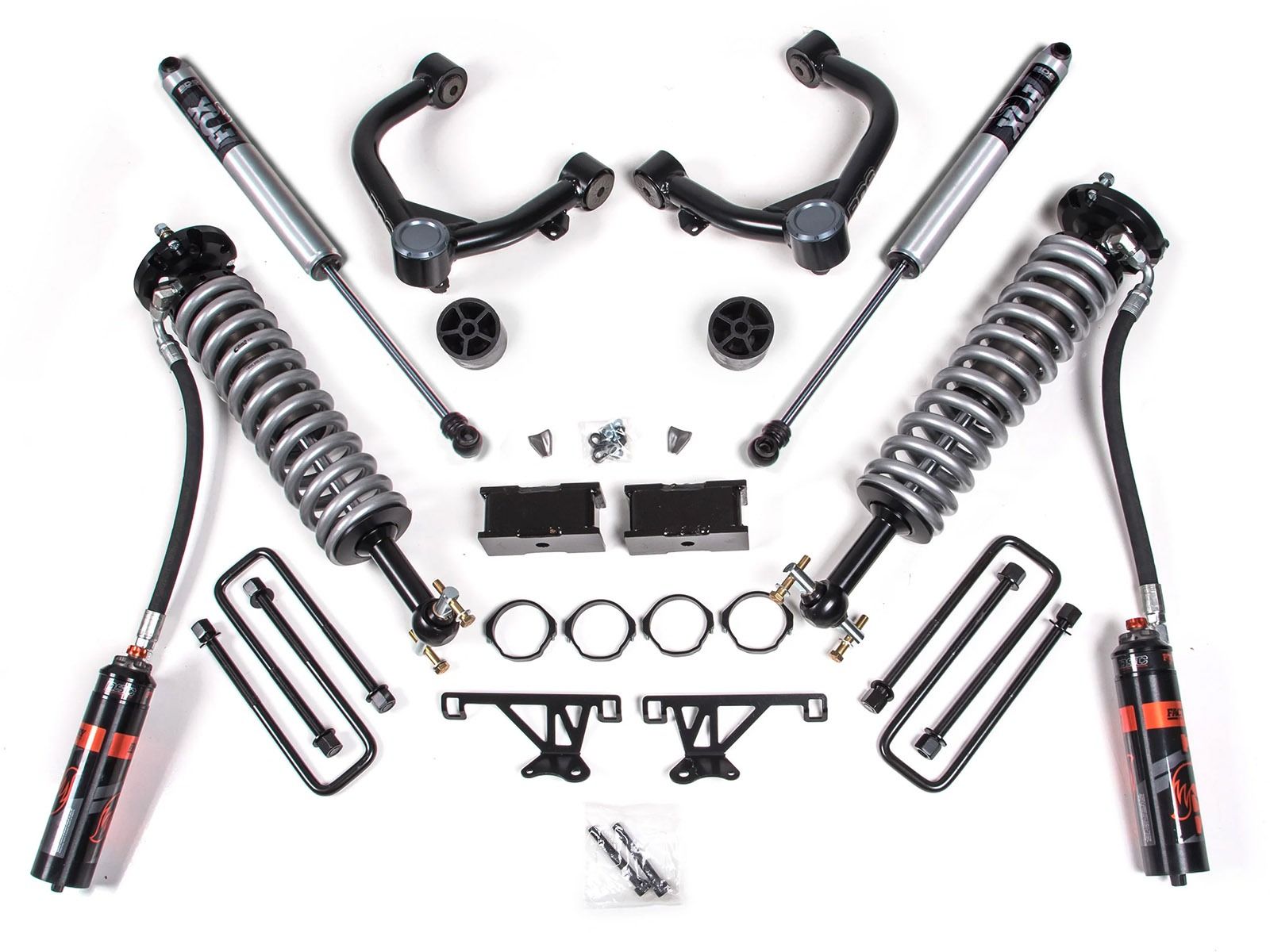

3.5" 2019-2021 Chevy Silverado 1500 4WD Fox DSC Coilover Lift Kit by BDS Suspension

The BDS 772FDSC / 755FDSC 3.5 inch suspension lift kit for the Chevy Silverado 1500 is a premium lift kit designed to allow allow for fitment of up to 35 inch diameter tires for a great off-road look.  This is done without sacrificing ride quality or handling while improving off-road performance.

This premium quality suspension lift kit is built around Fox 2.5 Factory Series remote reservoir DSC (dual speed compression) coilovers that provide optimal performance and direct bolt-in replacement for the factory struts. These adjustable coilovers allow for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences.  Also included are heavy duty upper control arms designed for high strength and improved suspension travel.  These arms use 1.5 inch DOM tubing along with an indexed ball joint cup to allow for more suspension droop travel.

The rear end is lifted with rear axle blocks and extended ubolts.

Fox 2.0 Performance Series rear shocks are included or upgrade to the highend Fox 2.5 Factory Series DSC remote reservoir shocks.

Top Features

• Lifts vehicle 3.5 inch front / 2 inch rear
• Fox 2.5 Factory Series remote reservoir DSC (adjustable) Coil-Overs
• Premium quality suspension performance for on and off-road conditions
• Heavy duty tubular upper control arms
• Allows use of up 35 inch tires
• Average Install Time: 4 to 5 hours
• Proudly made in the USA, using only premium quality components
• Choice of rear Fox 2.0 Performance IFP Shocks or Fox 2.5 Factory Series DSC Shocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire & Wheel Combinations

• 35" x 12.50" w/20x9 and 5.5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Installation Instructions

• Does not fit diesel models
• Requires frame bracket modification
• Will not fit Adaptive Ride Control (ARC) equipped models
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
• 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT work with TrailBoss or AT4 models.
• Will not fit 2019-2020 1500 Classic models
