1.5" 2019-2024 GMC Sierra 1500 AT4 Fox 2.5 Performance Series CoilOver Premium Lift Kit by BDS Suspension

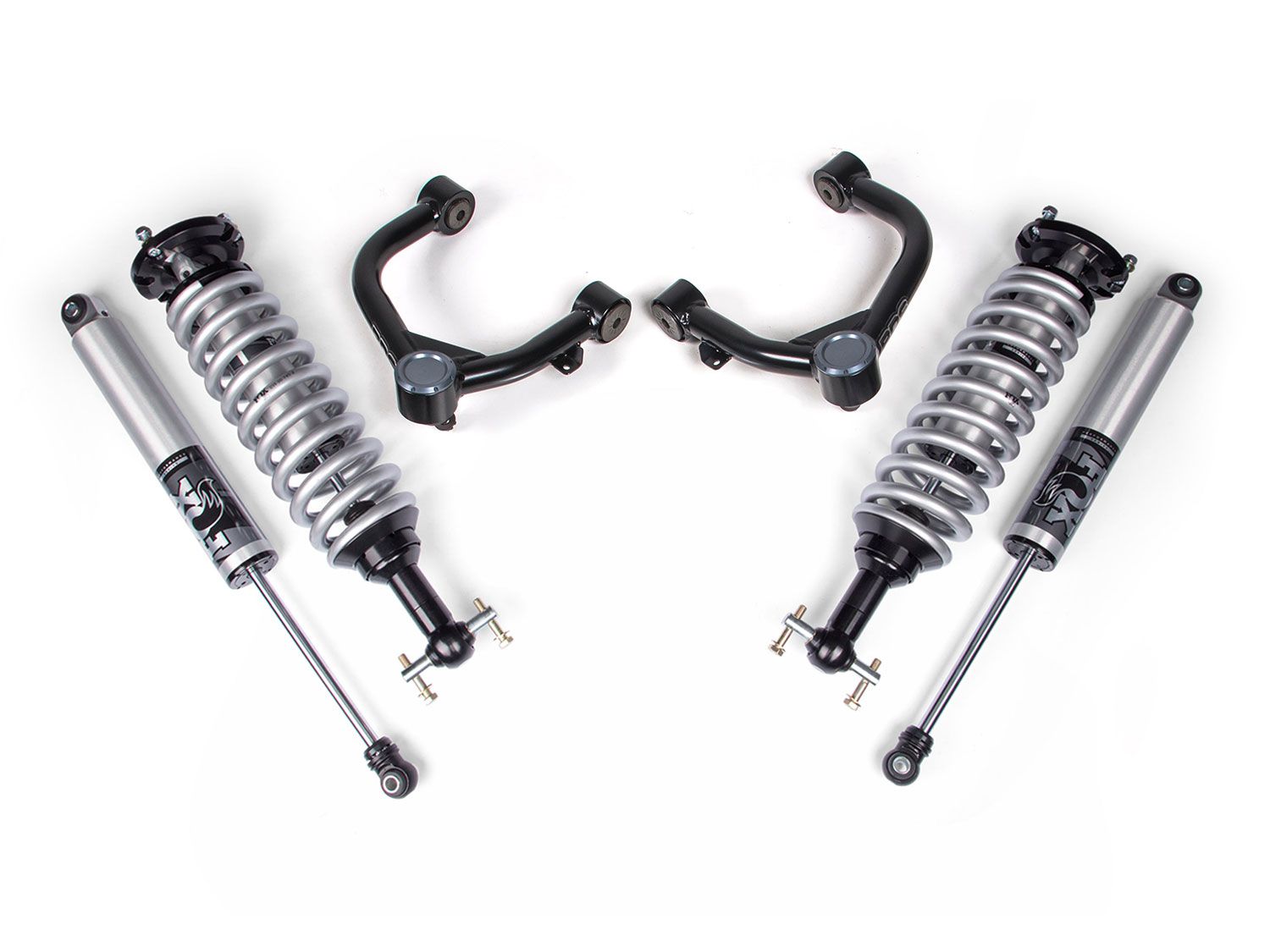

The BDS773FPS 1.5-Inch FOX 2.5 Performance Series Coilover Lift Kit for 2019-2024 GMC Sierra 1500 AT4 models is a premium suspension upgrade designed to improve stance, suspension strength, and overall ride performance. Built specifically around the factory-lifted Trail Boss platform, this system combines BDS heavy-duty upper control arms with FOX 2.5 Performance Series front coilovers and matching rear shocks for improved damping and suspension control on the street, trail, or while towing. The system provides a leveled appearance while supporting up to 33x12.50 tires with the recommended wheel specifications.

Up front, BDS tubular upper control arms replace the factory components to provide increased strength and an improved range of motion for the lifted suspension. Revised ball joint positioning helps accommodate the new suspension height and increased travel, while heavy-duty ball joints provide additional durability for demanding use. FOX 2.5 Performance Series coilovers replace the factory front dampers and feature application-specific tuning to improve ride quality, handling, and suspension control while establishing the increased front ride height.

Matching FOX 2.5 Performance Series rear shocks complete the package and provide balanced damping performance from front to rear. The larger 2.5-inch shock platform provides increased oil capacity and improved heat management for more consistent performance during extended or demanding use. Together, the upgraded control arms and FOX suspension components create a performance-focused lift system that improves suspension capability while maintaining predictable everyday drivability.

Features & Benefits

• Fits 2019-2024 GMC Sierra 1500 AT4 models
• Provides 1.5 inches of suspension lift
• Includes FOX 2.5 Performance Series front coilovers
• Includes FOX 2.5 Performance Series rear shocks
• FOX suspension is vehicle-specific tuned for improved ride and handling performance
• 2.5-inch shock platform provides increased fluid capacity and improved heat management
• Includes BDS heavy-duty tubular upper control arms
• Upper control arms provide increased strength over the factory components
• Optimized upper control arm geometry improves ball joint operating angles at the increased ride height
• Increased upper control arm range of motion supports additional suspension travel
• Heavy-duty ball joints provide increased strength and durability
• Improves suspension control for on-road, off-road, and towing applications
• Supports up to 33x12.50 tires with recommended wheel specifications
• Recommended 17x9, 18x9, or 20x9 wheels with 5.5 inches of backspacing
• Trimming may be required depending on tire and wheel combination
