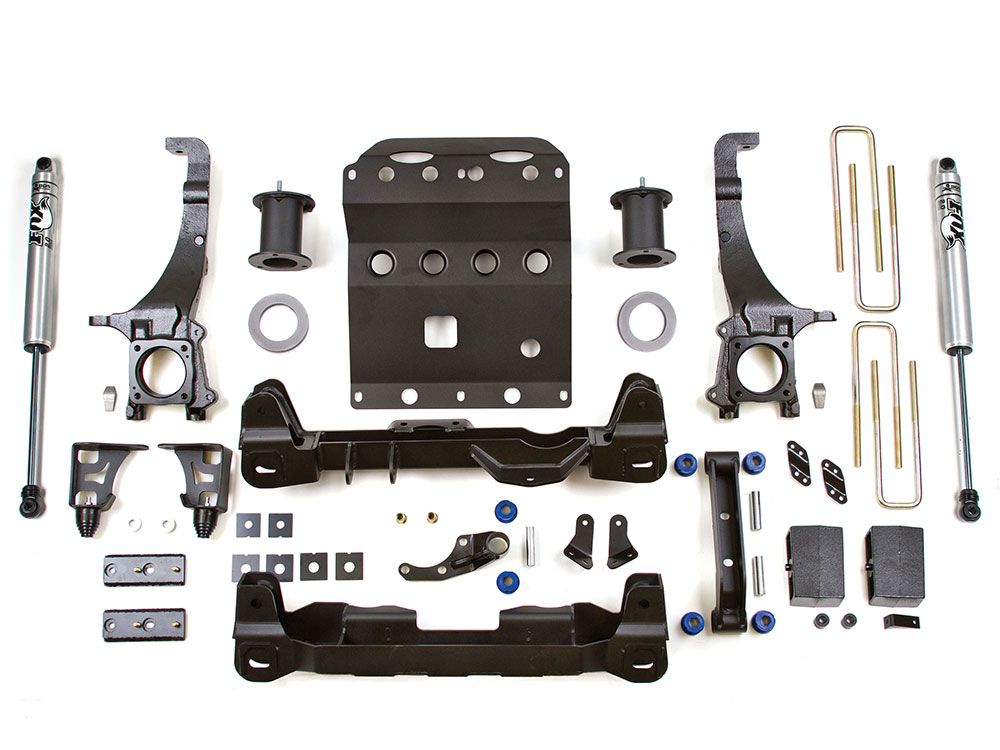

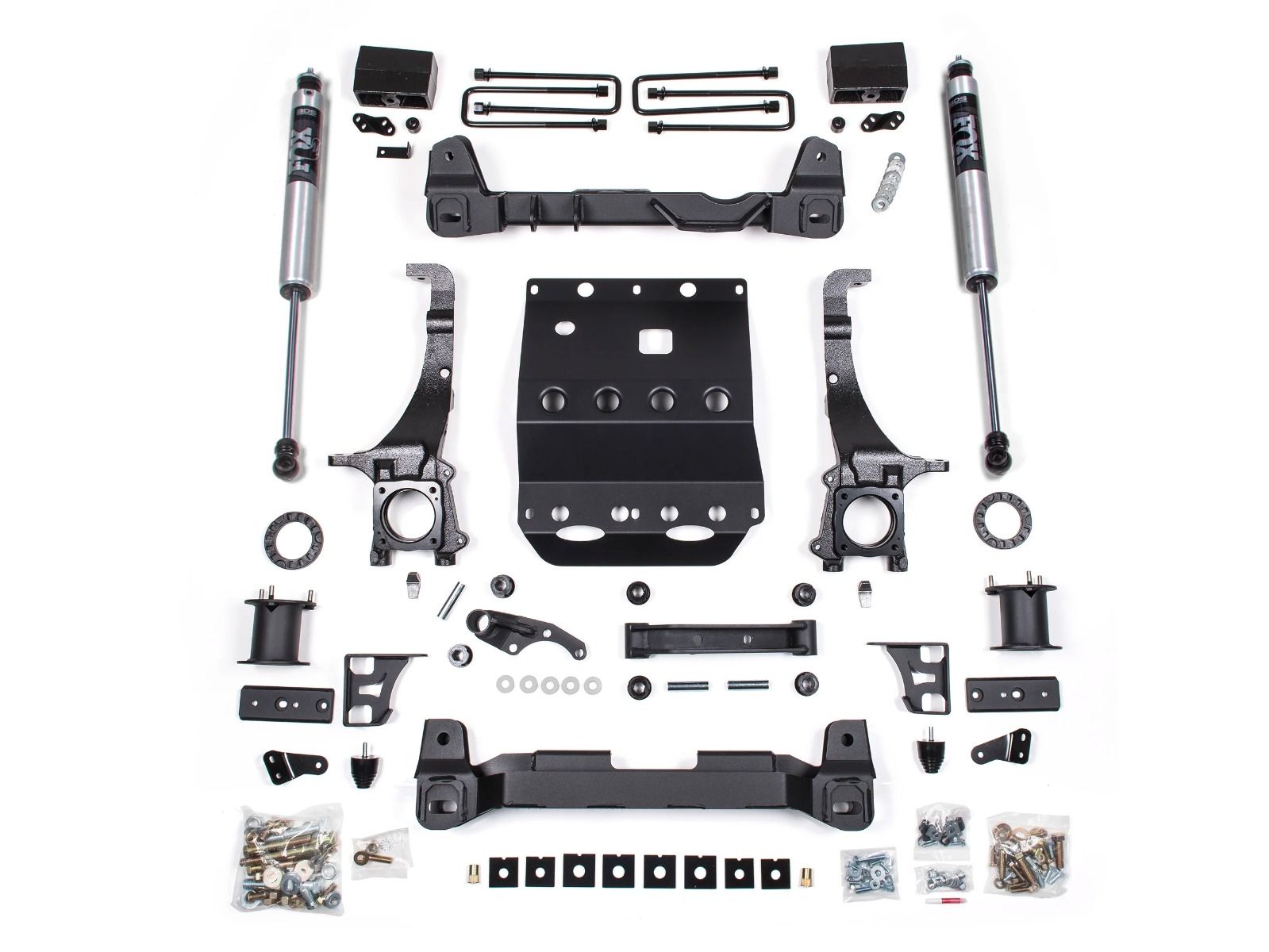

6" 2005-2015 Tacoma Toyota 4wd Lift Kit by BDS Suspension (w/rear Fox 2.0 Performance Shocks)

This BDS Suspension BDS815FS Tacoma IFS suspension lift system follows BDS proven design standards using full one-piece front & rear crossmembers coupled with precision machined ductile cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The knuckles are also considerably more robust in both the mass and strength categories over the rather light-duty stock components.

The crossmembers are built from 1/4" steel plate and have integrated differential mounts that work with the new provided differential mounts to properly drop and reposition the front differential for optimal CV and front driveshaft angles.

The whole package is protected by a new belly pan skid plate that runs from the front to rear crossmember and integrates cleanly with the factory front skid/splash guard.

The factory front struts are retained with the kit utilizing both a preload spacer and top strut spacer to gain the proper lift height.

The rear of the kit comes with 4" blocks and u-bolts to level the truck and all of the necessary brake line relocation brackets needed.

This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

Top Features

• 6 inch front lift / 4 inch rear lift
• Heavy Duty Cast Iron Steering Knuckles
• One-Piece Front & Rear Crossmembers
• Belly Pan Skip Plate Included
• Rear Fox 2.0 Performance Shocks
• Rear Blocks and Extended U-bolts
• Estimated Install Time: 6 to 8 hours
• Difficulty Leve (easy 1-5- complicated): 3
• No Fine Print Lifetime Warranty (you break it, we replace it)
• Best Quality and Engineering in the Industry
• Proudly Made in the USA

Tire & Wheel Combinations

• 35 x 12.50 w/18 x 9 and 4.5" Max. backspacing
• w/ 20 x 9 and 4.5" max. back spacing
• Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
