4" 2005-2015 Tacoma Toyota 4wd - Fox Performance Elite 2.5 CoilOver Lift Kit by BDS Suspension

Take your Toyota Tacoma to the next level in both appearance and off-road capability with this BDS816PSS / BDS816PES premium 4-inch suspension lift system from BDS Suspension. Designed specifically for high-performance builds, this kit combines trail-ready strength with FOX’s cutting-edge 2.5 Performance Elite (PE) coil-overs and your choice of FOX rear shock options to deliver exceptional ride quality, control, and adjustability across a wide range of terrain.

This system is engineered for added ground clearance and allows fitment of up to 33" tires. Whether you're tackling technical terrain or looking to improve street presence, it’s a complete upgrade package built to perform.

Front-End Engineering for Control and Clearance

The front suspension features a pair of aluminum-bodied FOX 2.5 Performance Elite coil-overs, tuned specifically for the Tacoma platform. These remote reservoir coilovers provide enhanced oil capacity, superior cooling, and precision tuning via Dual Speed Compression (DSC) adjusters—giving you high- and low-speed compression control at your fingertips.

Supporting the coilovers are high-clearance 1/4" thick steel crossmembers, CNC-machined ductile iron steering knuckles, and a multipiece differential relocation system. BDS includes all the essentials—heavy-duty skid plates, sway bar relocation brackets, bump stop extensions, brake line relocation, lower control arm cams, and FOX-specific reservoir mounts—to keep your truck aligned, protected, and dialed in.

Rear Suspension Built to Match

Out back, a pair of heavy-duty cast steel lift blocks and longer U-bolts provide the rear lift while maintaining full towing and hauling capacity. Choose between FOX 2.0 Performance Series shocks for dependable damping or upgrade to FOX 2.5 Performance Elite Series remote reservoir shocks for enhanced ride quality and terrain-tuning options to match the front.

FOX 2.5 Performance Elite Coilovers

FOX's 2.5 Performance Elite Series coilovers bring racing-inspired technology to your Tacoma. These include:

• Lightweight, extruded aluminum bodies for improved cooling
• External reservoirs for increased fluid capacity
• Dual Speed Compression (DSC) adjusters offering 10 low-speed and 12 high-speed settings
• Race-proven durability and on-the-fly adjustability
• Fully serviceable design for long-term performance

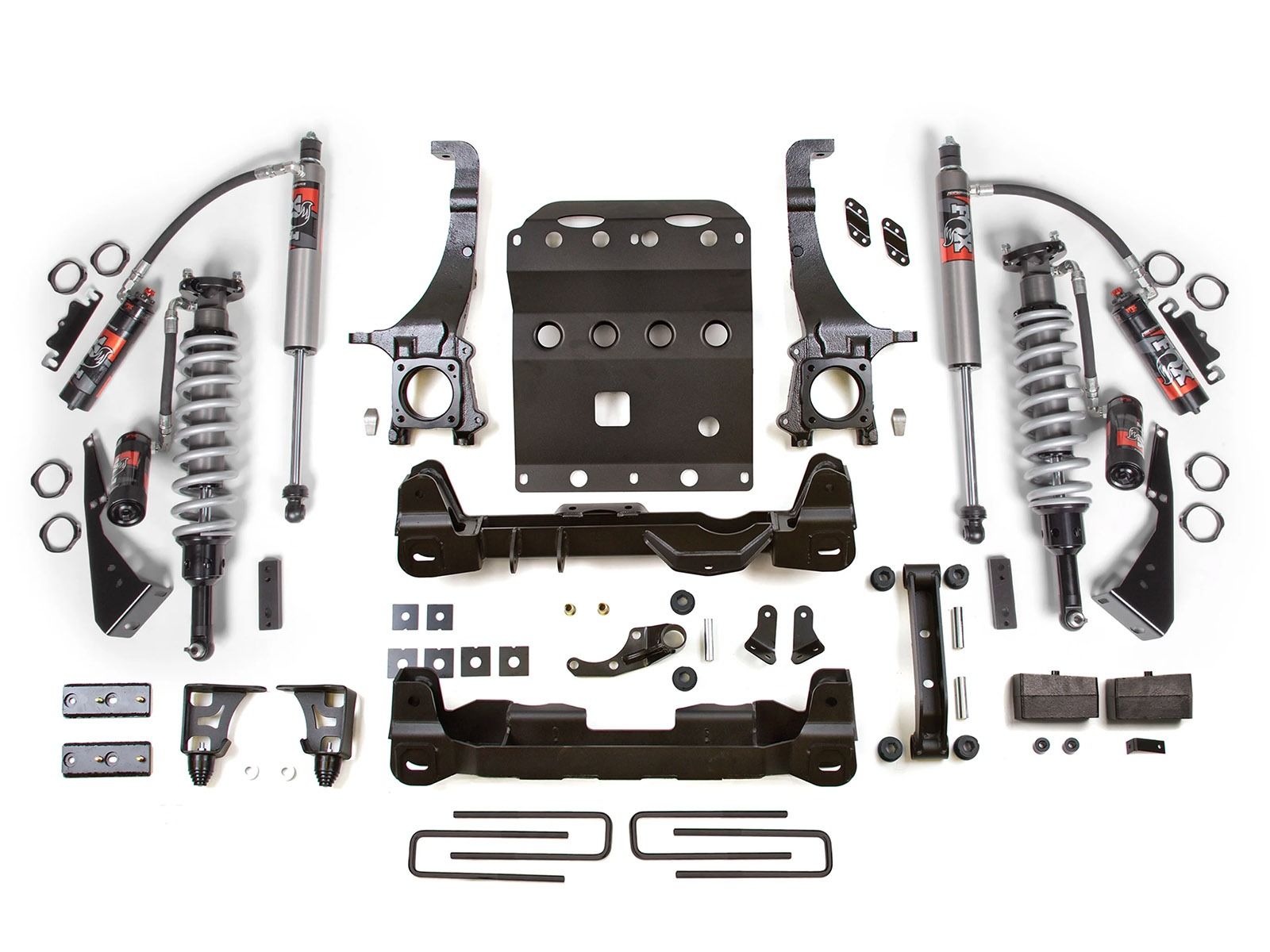

Kit Features & Highlights

• FOX 2.5 Performance Elite Series front coilovers with remote reservoirs and DSC adjusters
• Optional FOX 2.0 IFP or FOX 2.5 Performance Elite Series rear shocks
• High-clearance crossmembers for maximum off-road capability
• Heavy-duty skid plate system protects vital components
• Forged knuckles maintain el
• Differential relocation system improves CV angles and durability
• All hardware and brackets included for a bolt-on install
• Backed by BDS’s “No Fine Print” lifetime warranty
• Includes Factory Protection Plus drivetrain warranty coverage

Recommended Wheel & Tire Fitment

(Trimming may be required)

• 33 x 12.5 with 18 x 9 wheels and 4.5” backspacing
• 33 x 12.5 with 20 x 9 wheels and 4.5” backspacing

Rear Shock Options

FOX 2.0 Performance Series

• 2" extruded aluminum body for corrosion resistance
• Internal Floating Piston (IFP) monotube design
• 6061-T6 CNC-machined ends with 5/8" hard chrome-plated shaft
• Valved specifically for Toyota Tacoma applications
• Clear anodized finish for long-lasting durability

FOX 2.5 Performance Elite Series

• 2.5" aluminum body with external reservoir for added oil capacity
• Massive 7/8" chrome-plated alloy steel shaft
• DSC adjusters for high- and low-speed compression tuning
• Serviceable design for lifetime use
• 1-year FOX factory warranty

Whether you're building your dream Tacoma for adventure, daily driving, or a mix of both, this 6" BDS lift system with FOX coilovers provides the stance, control, and confidence to go wherever the road—or trail—takes you.
