3" 2007-2021 Toyota Tundra 4wd & 2wd Fox CoilOver Premium Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS824F / BDS824FDSC
- +

3" 2007-2021 Toyota Tundra 4wd & 2wd Fox CoilOver Premium Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS824F / BDS824FDSC
From $3,198.46 Regular Price $3,366.80

3" 2007-2021 Toyota Tundra 4wd & 2wd Fox CoilOver Premium Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS824F / BDS824FDSC
From $3,198.46 Regular Price $3,366.80

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

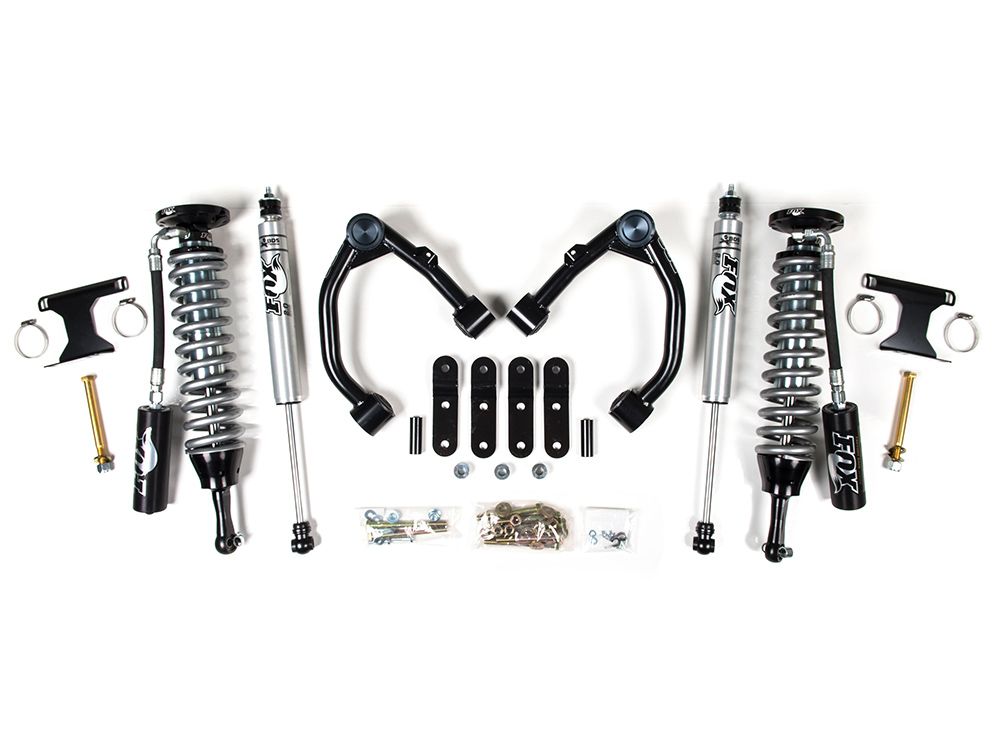

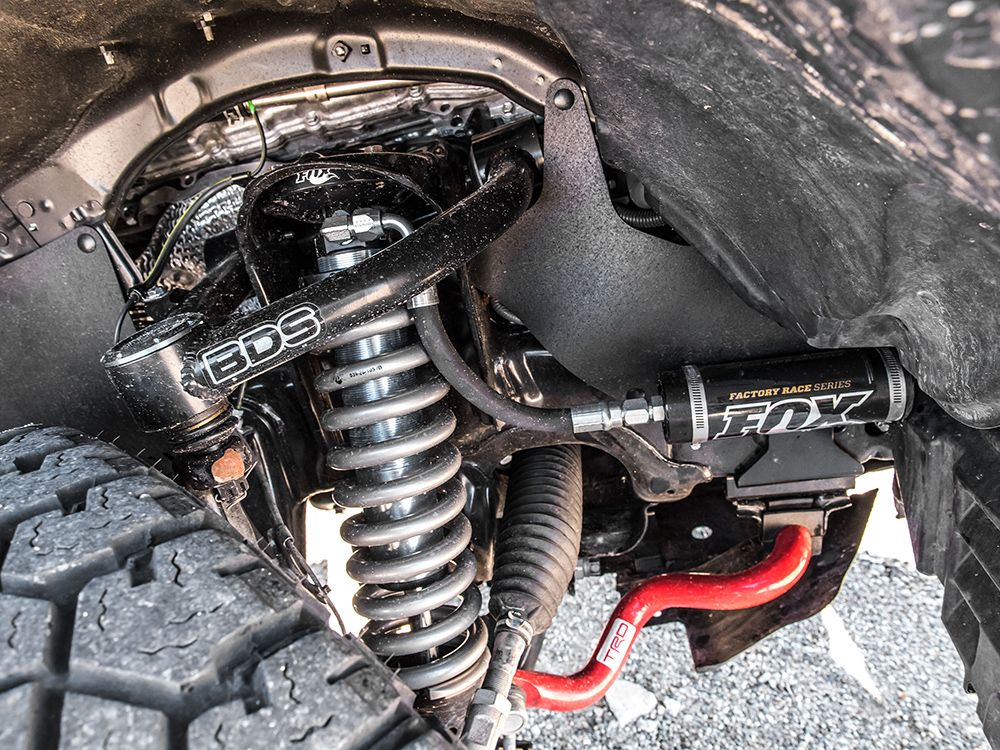

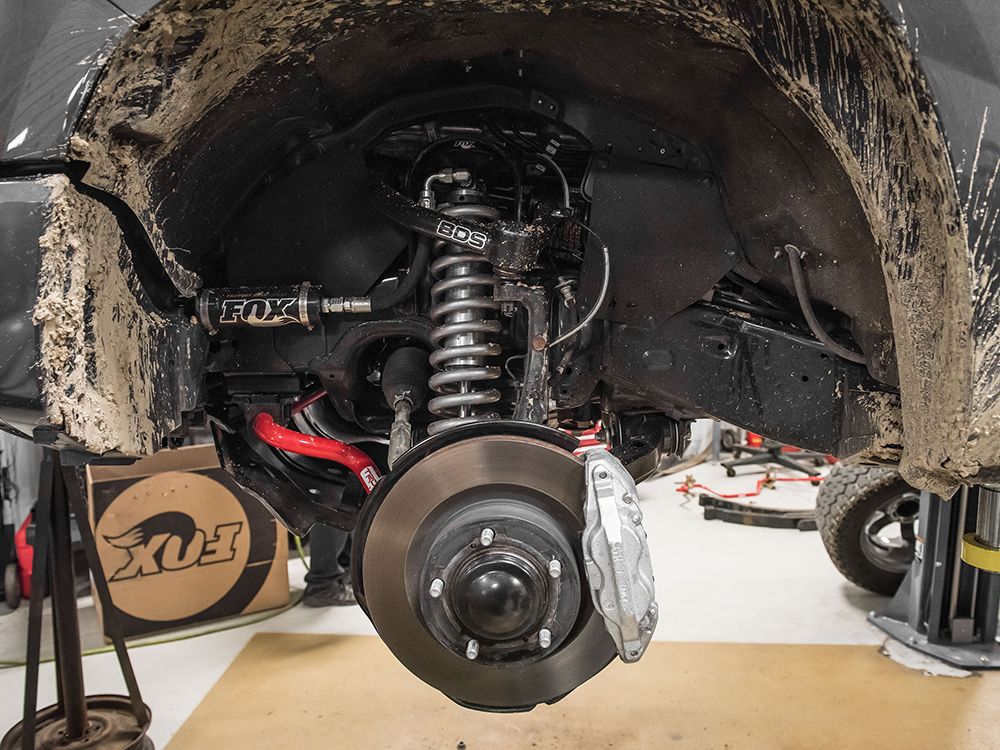

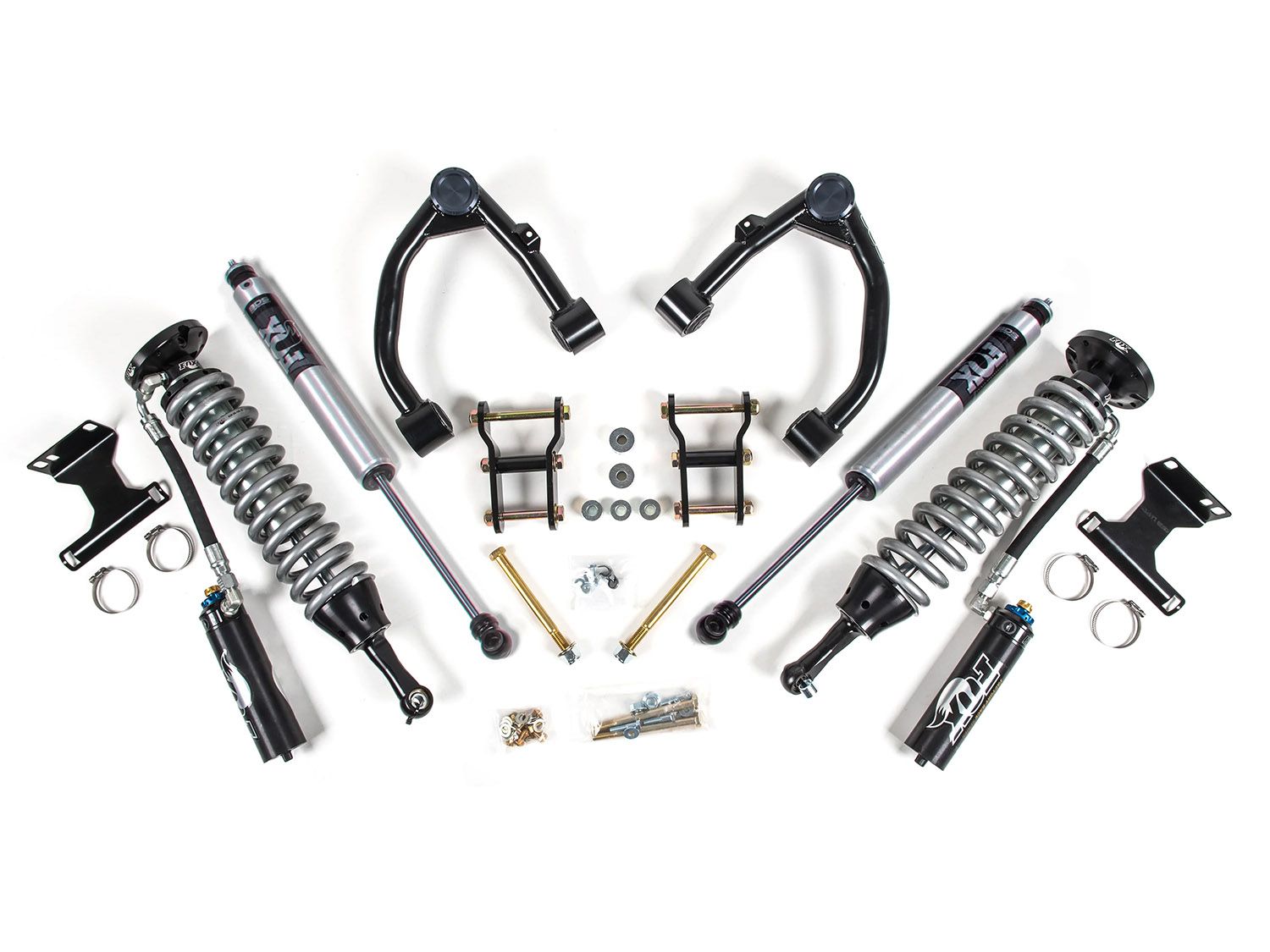

This BDS Suspension BDS824FDSC / BDS824F premium system for the Toyota Tundra includes a pair of specially tuned Fox 2.5 factory series remote reservoir coilovers. These coilovers are preset for the correct lift height right out of the box to provide optimal performance. They are a direct bolt-in replacement for the factory strut assemblies and include a bolt-in reservoir mounting brackets. These coilovers feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs, black anodized machined 6061-T6 billet aluminum mounts.

Also supplied as part of these complete 3" lift system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axle angles at a minimum. In the rear, BDS supplies a set of heavy duty shackles. These shackles provide 1" of lift to level the stance and include grade 8 installation hardware. Rounding out the rear of this 3" coilover system are a pair of specially tuned FOX 2.0 performance series shocks designed to pair with the front coilovers for impressive performance on and offroad.

Lift Kit Features:

  • Lifts Front 3 inches / Rear 1 inch
  • Premium Suspension System
  • Allows use of 33 x 12.5 tires (17x9 w/stock or 5 inch backspacing)
  • Performance Upper Control Arms w/Uni-Ball Joints
  • 1 inch Rear Shackles
  • Fox 2.5 Factory Series Remote Reservoir Coilovers
  • Lifetime Warranty with Factory Plus Protection (5 year / 60,000 mile drivetrain)
  • Differential Drop Kit
  • Estimated Install Time of 4 to 6 hours

FOX 2.5 Remote Reservoir Coilover Features:

  • Smooth-bore, clear coated, zinc-plated alloy body
  • Black anodized 6061-T6 billet Aluminum mounting components and remote reservoir
  • 7/8" hard chrome plated heat treated alloy steel shaft
  • High flow piston design with specially formulated race oil
  • External reservoir separates shock oil from high-pressure nitrogen
  • Easy bolt-on installation, coil spring preload set for proper ride height out

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.

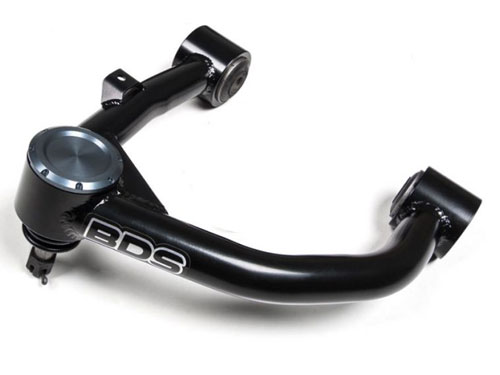

BSD Upper Control Arms
These included high strength 1.5" OD x .120 wall tubular upper control arms feature MOOG premium ball joints, clevite rubber bushings (more durable than poly) and an indexed ball joint cup for more wheel travel.
Important NotesWill not fit TRD Pro models.
Vehicle Fitment
Year Fitment2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS824F / BDS824FDSC
Item Numberbds_bds824f
Product LineLift Kits
Lift Height3 inch
Tire / Wheel Fitment33 x 12.50 w/17x9 and 5 back spacing
