3" 2022-2024 Tundra Toyota 4wd Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS838FPE
- +

3" 2022-2024 Tundra Toyota 4wd Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS838FPE

3" 2022-2024 Tundra Toyota 4wd Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS838FPE

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS838FPE 3-inch lift kit for the Toyota Tundra is a premium system that allows for the use of larger diameter tires (up to 33 inches with no trimming or 35 inches with fender well trimming) while also improving ride quality and off-road performance.

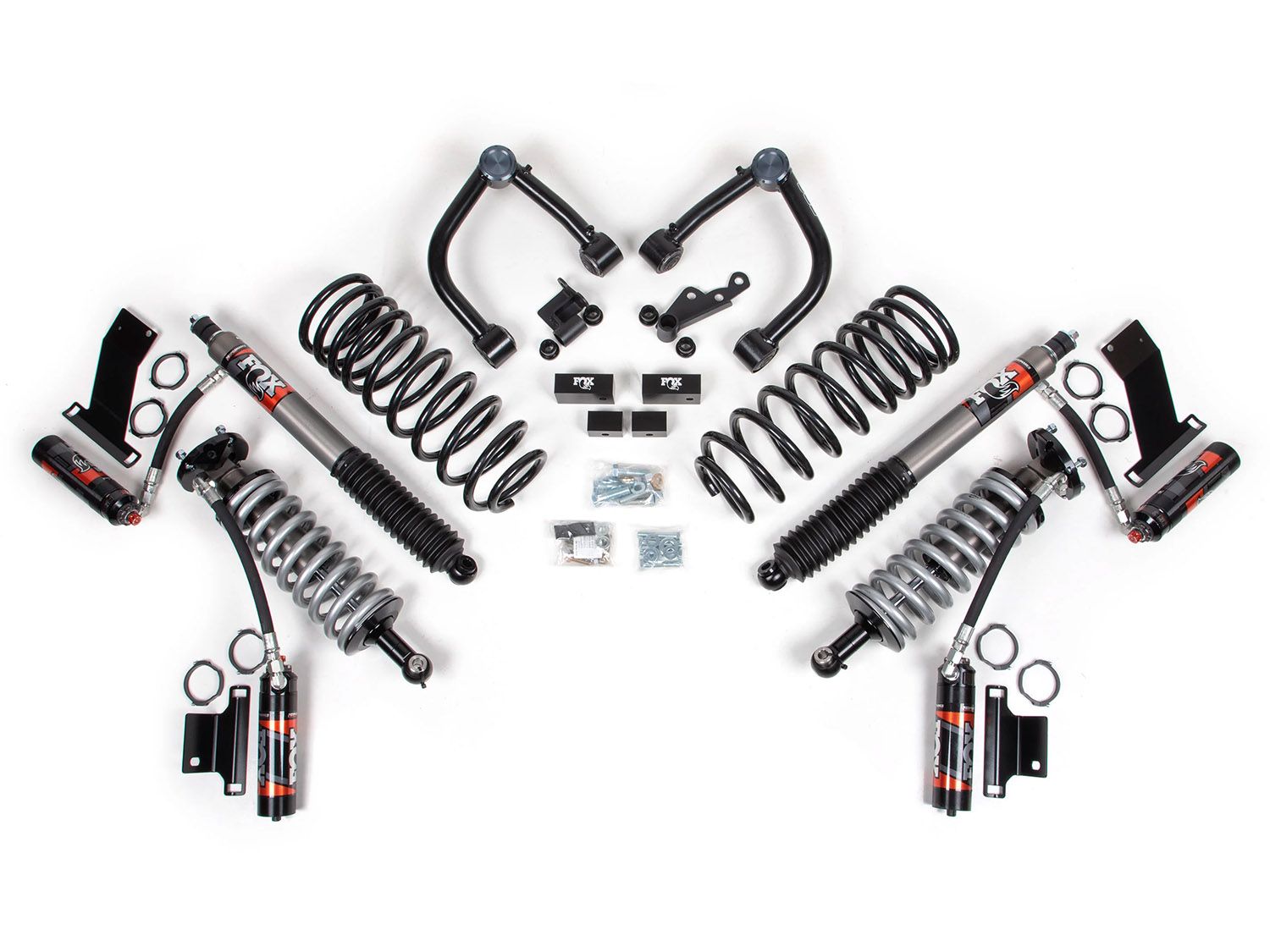

This system includes a pair of specially tuned Fox 2.5 Performance Elite remote reservoir coilovers, heavy-duty upper control arms, differential drop brackets, and aluminum sway bar drop blocks. In the rear, BDS supplies a set of dual-rate ProRide coil springs, providing 1 3/4" of lift to level out the truck, paired with rear 2.5 Performance Elite Series remote reservoir shocks with DSC.

The Fox coilovers are preset for the correct lift height right out of the box to provide optimal performance. They are a direct bolt-in replacement for the factory strut assemblies and include bolt-on reservoir mounting brackets. These coilovers feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs, and black anodized machined 6061-T6 billet aluminum mounts.

Performance Elite DSC Adjusters

Each coilover and shock reservoir is equipped with a Dual Speed Compression (DSC) adjuster that allows you to dial in high-speed and low-speed compression settings. With the DSC adjusters, you can swiftly tailor your shocks to suit different loads, environmental conditions, and your preferred driving style. Adjust is made simply by turning the low or speed dials to your desired settings (10 low-speed settings, 12 high-speed settings). Meanwhile, the high-flow piston ensures stability across various terrains. FOX shocks are meticulously engineered to accommodate multiple activities, allowing you to unlock your truck's full potential on your next adventure.

Heavy Duty UCAs

Also supplied as part of these complete 3" lift systems are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs.

Lift Kit Features and Benefits:

  • Provides 3-inch front lift / 1.75-inch rear lift
  • Premium Suspension System
  • Superior Tubular Upper Control Arms
  • Includes Fox 2.5 Performance Elite Coilovers and Shocks
  • Coilovers & Shocks features DSC (dual speed compression) ride adjustments with a turn of a dial
  • Dual-rate rear coil springs
  • Differential drop brackets
  • Estimated Install Time: up to 4-5 hours
  • No Fine Print Lifetime Warranty
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Fox 2.5 Performance Elite Coilover Features:

  • 2.5 inch CNC Machined 6061-T6 Aluminum Body
  • Aluminum body dissipates heat three times faster than steel body
  • Excellent ride quality and off-road performance
  • Reservoirs include Dual Speed Compression (DSC) Adjusters to fine-tune ride firmness or softness at high and low speeds (10 low-speed settings, 12 high-speed settings)
  • Race-developed high-flow piston design
  • Clear Anodized Finish
  • Coil Springs are application-specific
  • 7/8" hard chrome-plated steel shafts
  • Application specific valving
  • Quiet nitrile rubber bushings

Tire & Wheel Combinations:

  • 295/65 R20 Tire w/ 6-7/8 BS (OE TRD Wheel) (no trimming)
  • 285/65 R20 Tire or 285/75 R18 w/9” Wide 6-1/8” BS Wheel (no trimming)
  • 295/60 R20 Tire or 295/70 R18 w/9” Wide 5-1/2” BS Wheel (no trimming)
  • 305/55 R20 Tire or 305/65 R18 w/9” Wide 5” BS Wheel (no trimming)
  • 325/60 R20 Tire w/9” Wide 6-1/8” BS Wheel (trimming required)
  • 35/12.50 R20 Tire or 35/12.50 R18 w/9” Wide 5-1/2” BS Wheel (trimming required)
  • 295/65 R20 Tire or 305/70 R18 or 285/75 R18w/9” Wide 5” BS Wheel (trimming required)

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Will not work on models with factory air suspension
2. Will not work on TRD Pro models
3. The ball joint cap must be removed for maintenance of the ball joint. Remove the cap to access the grease zerk. Grease at regular maintenance intervals
Vehicle Fitment
Year Fitment2024, 2023, 2022
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS838FPE
Item Numberbds_838fpe
Product LineLift Kits
Lift Height3 inch


Warning - Cancer and Reproductive HarmWARNINGCancer and Reproductive Harm.
