2" 2025-2027 Toyota 4Runner 4WD Fox 3.0 Factory Race Series Coilover Premium Leveling Kit by BDS Suspension

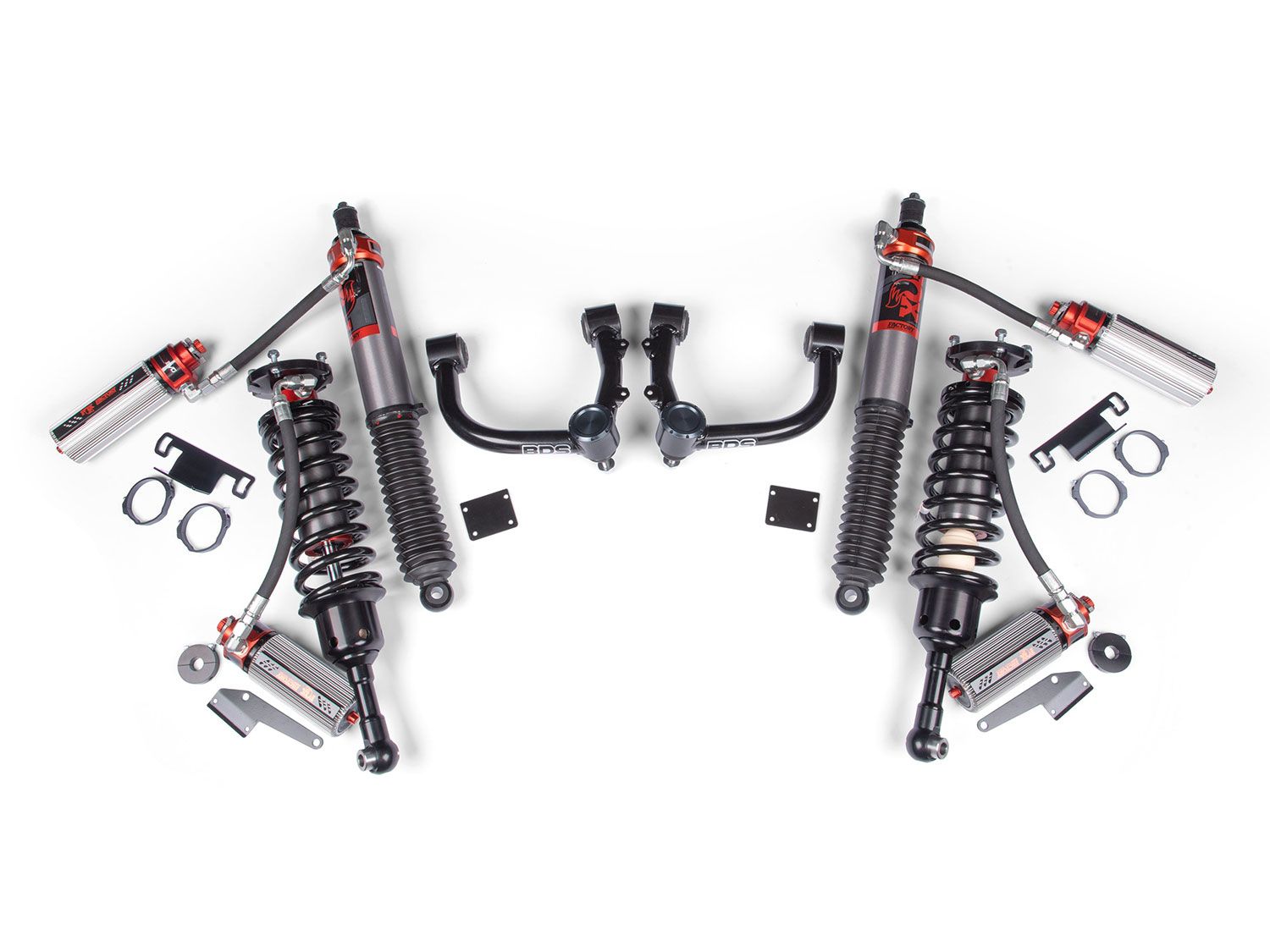

The BDS BDS848FRS 2-Inch Suspension Leveling Kit with FOX 3.0 Factory Race Series coilovers and rear shocks for 2025-up Toyota 4Runner models is a high-performance suspension upgrade that increases front ride height, improves tire clearance, and delivers race-inspired damping control for demanding on-road and off-road use. The system combines FOX 3.0 Factory Race Series Internal-Bypass front coilovers and rear shocks with heavy-duty BDS tubular upper control arms engineered for the increased suspension height. The 2-inch front lift creates a more level stance while providing clearance for up to 33-inch tires.

Heavy-duty BDS upper control arms are made from 1.5-inch DOM steel tubing to provide greater strength than the factory components while improving suspension geometry at the taller ride height. Corrected ball joint positioning helps maintain favorable operating angles and increases usable suspension travel compared with the factory upper control arms. The revised geometry also supports proper alignment and controlled wheel movement, creating a stronger front suspension foundation for 4Runner builds intended for daily driving, overland travel, and demanding trail use.

FOX 3.0 Factory Race Series Internal Bypass coilovers and rear shocks use large 3-inch impact-extruded and CNC-machined 6061-T6 aluminum bodies to increase fluid capacity and improve heat management. Position-sensitive internal bypass technology delivers varying levels of damping throughout shock travel, providing a compliant response through normal suspension movement while progressively increasing control near full compression and extension. Finned aluminum remote reservoirs with Recirculating Reservoir Bridge technology further improve heat dissipation during extended off-road use.

Dual-speed compression adjusters provide tool-free, independent tuning of high-speed and low-speed compression damping, allowing you to tailor suspension response to terrain, vehicle load, and driving style. Massive 7/8-inch hard chrome-plated, heat-treated alloy steel shafts provide the strength required for aggressive off-road impacts, while the fully serviceable FOX 3.0 architecture supports long-term performance. Combined with BDS geometry-correcting upper control arms and approximately 2 inches of front lift, the BDS848FRS delivers premium suspension control, increased tire clearance, and race-derived performance for the Toyota 4Runner.

Features & Benefits

• Provides approximately 2 inches of front suspension lift for a more level stance
• Designed for 2025-up Toyota 4Runner models
• Includes FOX 3.0 Factory Race Series Internal Bypass front coilovers
• Includes FOX 3.0 Factory Race Series Internal Bypass rear shocks
• Position-sensitive internal bypass technology provides progressive damping throughout suspension travel
• Internal bypass design helps control harsh bottom-outs and top-outs during aggressive off-road use
• FOX 3.0 Factory Race Series shocks use 3-inch impact-extruded and CNC-machined 6061-T6 aluminum bodies
• Large-diameter aluminum shock bodies provide increased fluid capacity and efficient heat dissipation
• Finned aluminum remote reservoirs improve cooling during extended use
• Recirculating Reservoir Bridge technology supports consistent damping and heat management
• Dual Speed Compression adjusters provide independent high-speed and low-speed compression tuning
• Tool-free DSC adjustment allows suspension response to be tailored around terrain, load, and driving conditions
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shock shafts provide increased impact resistance
• FOX 3.0 Factory Race Series shocks are fully serviceable for long-term performance
• Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing
• Corrected upper control arm ball joint angles improve lifted suspension geometry
• Upper control arm design increases usable suspension travel over the factory components
• Revised control arm geometry supports proper alignment at the increased ride height
• Increased front ride height provides additional ground and tire clearance
• Accommodates up to 33-inch tires with properly configured wheels
