2" 2025-2027 Toyota 4Runner 4WD Fox 2.5 Performance Elite Coilover Leveling Kit by BDS Suspension

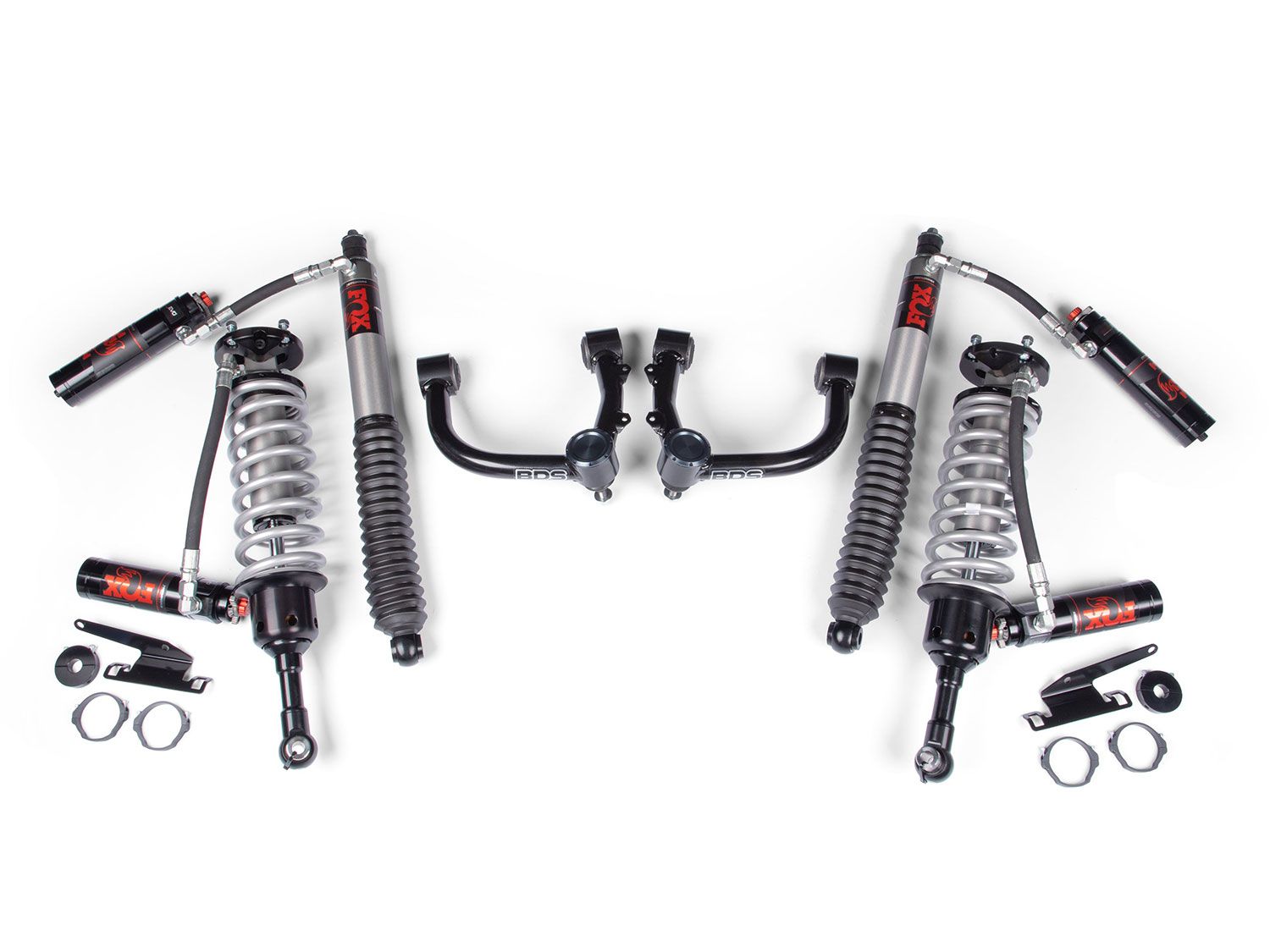

The BDS BDS848PES 2-Inch Suspension Leveling Kit with FOX 2.5 Performance Elite Series Coilovers and rear shocks for 2025-up Toyota 4Runner models increases front ride height, improves tire clearance, and enhances suspension performance while maintaining controlled street handling. The system combines FOX 2.5 Performance Elite Series front coilovers and rear shocks with heavy-duty BDS tubular upper control arms engineered for the increased suspension height. Two damping configurations are available: FOX 2.5 Performance Elite Series with standard tuning or FOX 2.5 Performance Elite Series with HD tuning for builds carrying additional vehicle weight.

Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing to provide increased strength over the factory components while improving suspension geometry at the taller ride height. Corrected ball joint positioning helps maintain favorable operating angles and increases usable suspension travel compared with the factory upper control arms. The revised geometry also supports proper alignment and controlled wheel movement, creating a stronger front-suspension foundation for 4Runner builds used on pavement and off-road.

FOX 2.5 Performance Elite Series coilovers and rear shocks use 2.5-inch impact-extruded aluminum bodies and external reservoirs to increase oil capacity and improve heat management during demanding use. Large 7/8-inch hard chrome-plated, heat-treated alloy steel shafts provide greater durability, while Dual Speed Compression adjustment lets you tune low-speed and high-speed compression damping separately with an adjustment knob mounted on the reservoir. This adjustability lets you tailor suspension response to terrain, vehicle load, and driving speed while maintaining consistent damping performance across changing conditions.

The standard FOX 2.5 Performance Elite Series configuration provides premium adjustable damping for daily driving, trail use, and demanding off-road terrain. The FOX 2.5 Performance Elite Series HD Tune configuration uses application-specific heavy-duty valving designed to better control 4Runner builds carrying additional weight from armor, bumpers, rooftop tents, recovery equipment, camping gear, and other accessories. Both configurations provide approximately 2 inches of front lift and clearance for up to 33-inch tires, combining improved suspension geometry, adjustable FOX damping, and increased tire clearance in a performance-focused leveling system.

Features & Benefits

• Provides approximately 2 inches of front suspension lift for a more level stance
• Designed for 2025-up Toyota 4Runner models
• Includes FOX 2.5 Performance Elite Series front coilovers and rear shocks
• Available with standard FOX 2.5 Performance Elite Series tuning
• Available with FOX 2.5 Performance Elite Series HD tuning for vehicles carrying additional accessory weight
• Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing
• Corrected upper control arm ball joint angle improves lifted suspension geometry
• Upper control arm design increases usable suspension travel over the factory components
• Revised control arm geometry supports proper alignment at the increased ride height
• FOX 2.5 Performance Elite Series shocks use 2.5-inch impact-extruded aluminum bodies
• External reservoirs increase oil capacity and improve heat management during demanding use
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shafts provide increased durability
• Dual Speed Compression (DSC) adjustment provides independent low-speed and high-speed compression tuning using an adjustment knob on the reservoir
• Adjustable damping allows suspension response to be tailored around terrain, load, and vehicle speed
• Standard tune provides premium damping performance for street and off-road driving
• HD Tune provides increased damping support for 4Runner builds carrying additional weight
• HD Tune is suited for vehicles equipped with armor, bumpers, rooftop tents, recovery equipment, and other heavy accessories
• FOX Performance Elite Series shocks are fully serviceable
• Increased front ride height provides additional ground and tire clearance
• Accommodates up to 33-inch tires with properly configured wheels
