4.5" 2015-2020 Chevy Suburban 1500 / Tahoe 4WD Lift Kit by BDS Suspension

Lift, level, and transform the capability of your 2015–2020 Chevy Suburban, Tahoe 1500 4WD with the BDS 4.5-inch Suspension Lift Kit (SKU: 908H/909H). Engineered for improved stance, off-road capability, and confident on-road handling, this system provides clearance for up to 33-inch tires while maintaining factory ride quality and stability.

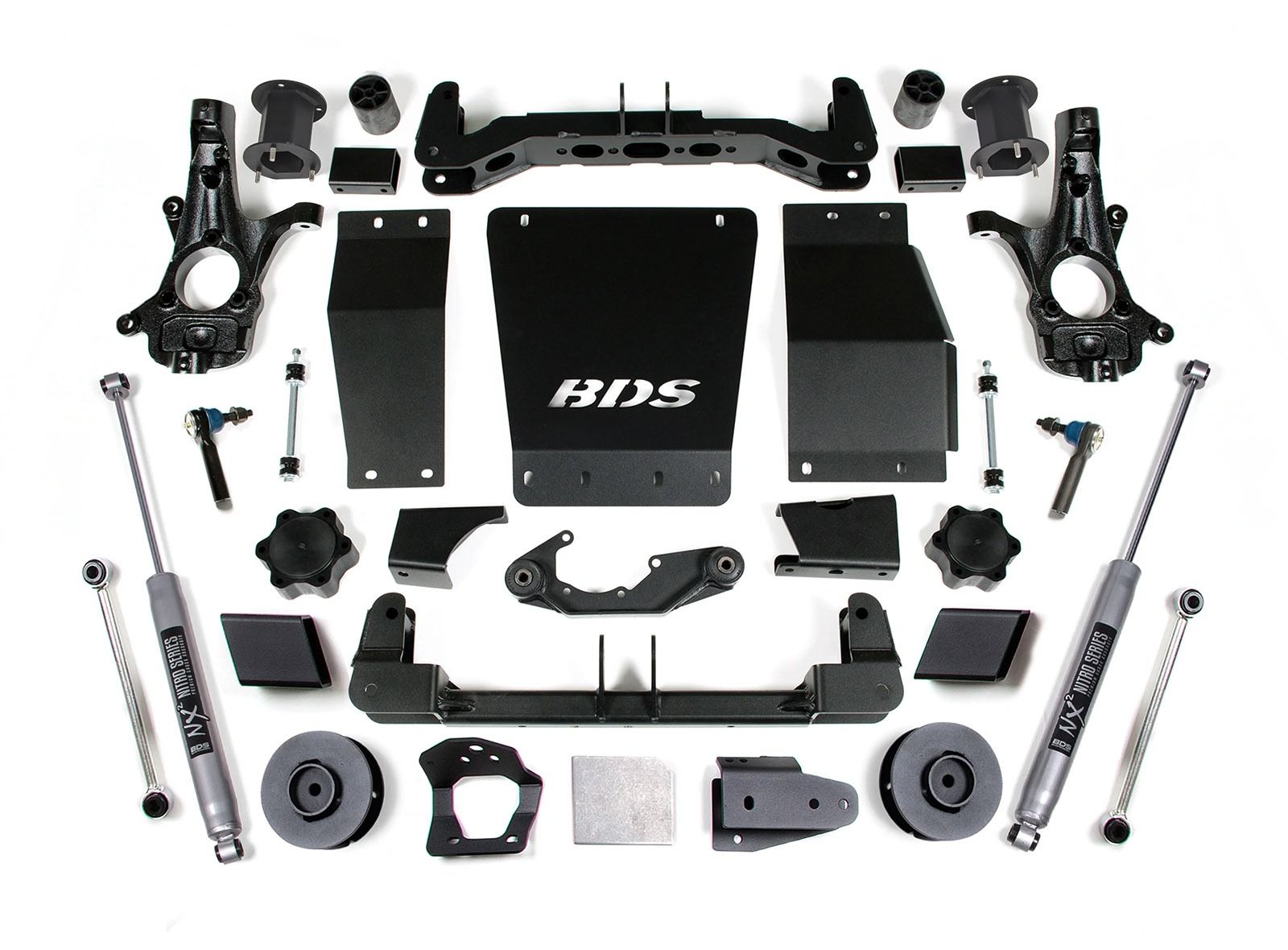

This kit utilizes BDS’s proven high-clearance suspension design to maximize ground clearance, strength, and off-road protection while correcting critical suspension and steering geometry. Up front, the system features upper strut spacers, high-arched 1/4-inch thick steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates that bolt together to form a rigid, protective subframe.

Steering geometry is properly corrected at the increased ride height using CNC-machined ductile iron steering knuckles. These knuckles are designed to work with factory tie rod ends, maintaining proper steering angles and ESC system compatibility for safe, predictable handling both on and off the road. Supporting components such as sway bar drop brackets, bump stop extensions, brake line brackets, CV spacers, and all required hardware round out a truly complete front suspension system.

In the rear, BDS uses coil spring spacers to properly level the vehicle while maintaining ride quality and load handling. Rear damping is handled by your choice of BDS NX2 Nitro Series shocks or FOX 2.0 Performance Series shocks, allowing you to tailor ride comfort and off-road performance to your driving style.

As with all BDS suspension systems, this kit is engineered for long-term durability and backed by the confidence of BDS Factory Protection Plus, including drivetrain warranty coverage.

Features & Benefits

• 4.5" front lift with 3" rear lift for an aggressive, leveled stance
• High-clearance 1/4" thick steel crossmembers maximize ground clearance
• Heavy-duty skid plate system adds off-road protection
• CNC-machined ductile iron steering knuckles maintain proper steering geometry
• ESC system compliant steering design
• Multi-point differential relocation brackets improve CV angles
• Rear coil spring spacers maintain ride quality and load capacity
• Choice of BDS NX2 Nitro or FOX 2.0 Performance Series rear shocks
• Includes all required hardware, brake line brackets, sway bar drops, and bump stop extensions
• Factory Protection Plus drivetrain warranty included
• Made in the USA

Rear Shock Options

NX2 Nitro Series Shocks

• Nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• 1-3/8" high-flow piston
• Dual-welded ends for added strength
• Self-lubricating seals
• Durable silver powder coat finish

FOX 2.0 Performance Series Shocks

• 2.0" impact-extruded aluminum body
• IFP monotube design for fade resistance
• 5/8" hard chrome plated, heat-treated steel shaft
• CNC-machined 6061-T6 aluminum mounting ends
• Race-developed high-flow piston
• Application-specific valving
• Clear anodized finish

Recommended Tires & Wheels

(Trimming may be required)

• 32 x 12.50 on 17 x 9 wheels with 4.5" backspacing
• 33 x 12.50 on 18 x 9 wheels with 5" backspacing
• 33 x 12.50 on 20 x 9 wheels with 5.75" backspacing

Lift Specifications

• Front Lift Height: 4.5"
• Rear Lift Height: 3"
• Front Lift Method: Strut Spacers
• Rear Lift Method: Coil spring spacers
• Shocks Included: Yes (Rear)
