Front 5100 Series Adj. Bilstein Shock Fits w/ 0-2" Front Lift

Special Price $143.00 Regular Price $199.00

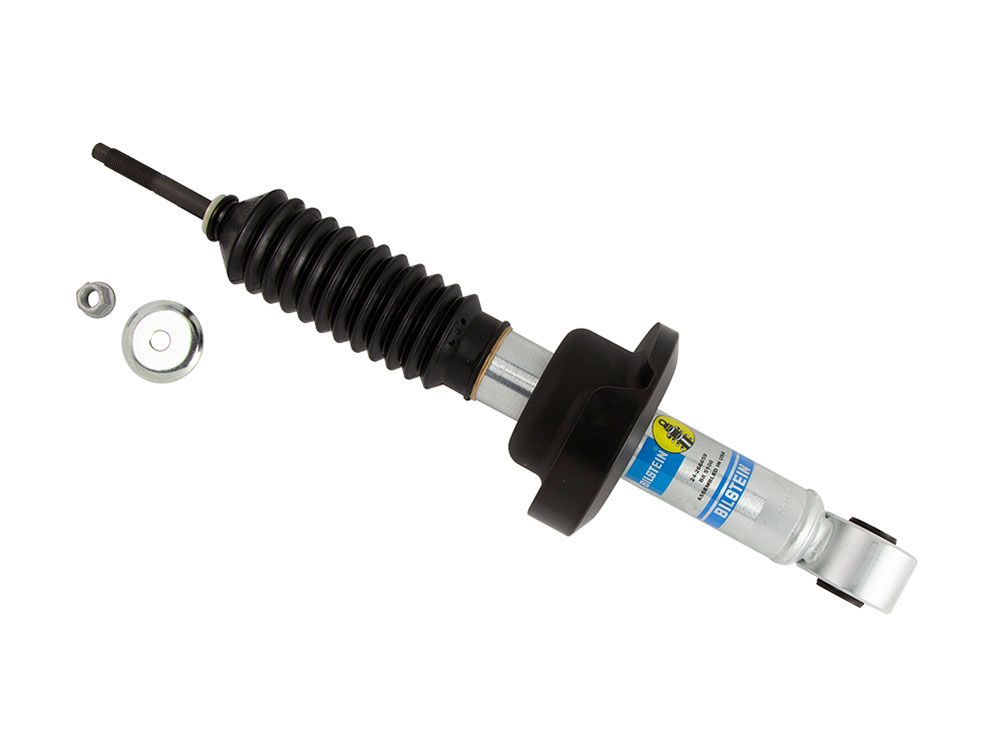

Bilstein 5100 Series Adjustable Shock.

Free Shipping if you spend $99 or more!
*to lower 48 continental US only.
*Truck Freight items and certain sale items are not Included.

- +
More Information
More Information
Item Numberbil_24-266659
Manufacturer Part Number24-266659

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Collapsed Length (IN) 11.26
Extended Length (IN) 16.41
Collapsed Length (MM) 286.1
Extended Length (MM) 416.9
Travel Length (IN) 5.15
Lower Mount Type Eye 16mm
Upper Mount Type Stem
Internal Design Monotube
Finish Zinc Plated
Reservoir No
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter 46mm
Boot E4-SR1-Z001A06
Boot Included Black Bellows
Mounting Kit B4-KT1-Z352A00
Spring Seat E4-FT2-Z053A01
Shaft Diameter 14mm
Important NotesFits Diesel Only.
ModelTitan XD
Year Spans2016,2017,2018,2019
Shock SeriesBilstein 5100 Series
