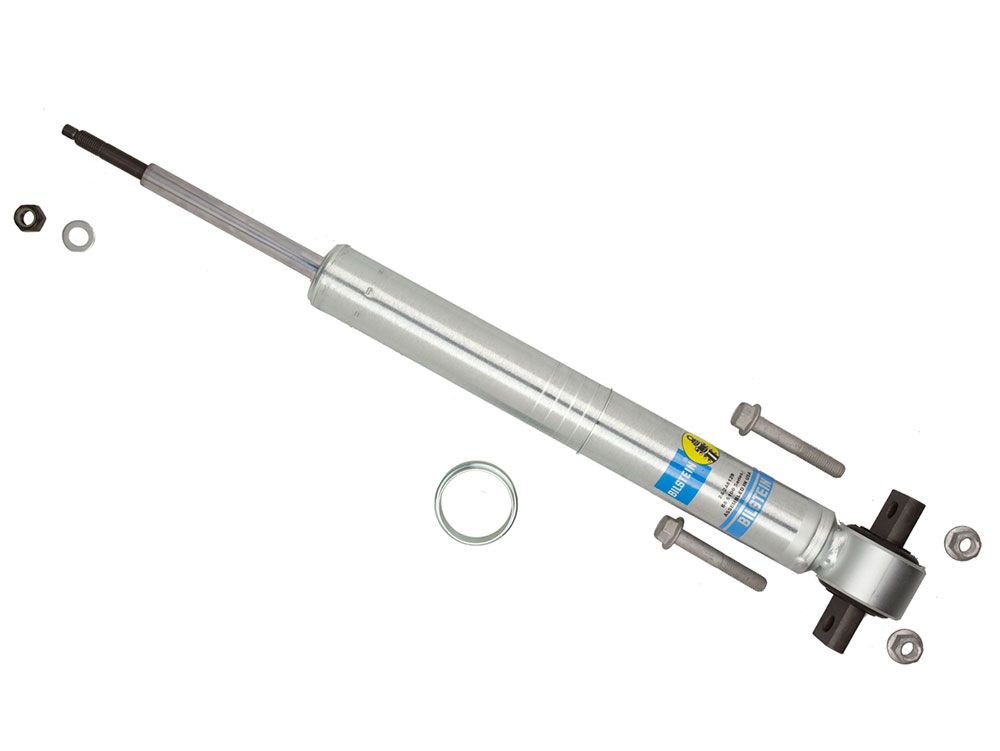

Ranger 2019-2023 Ford 4WD - Bilstein 5100 0–2.5" Adjustable Height Front Leveling Struts & 5100 Rear Shocks (Set of 4)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Ford Ranger 4WD feature multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.5 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein 5100 Series shocks are ideal for lifted trucks and SUVs.  The extra demands of larger tires and a taller stance require more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

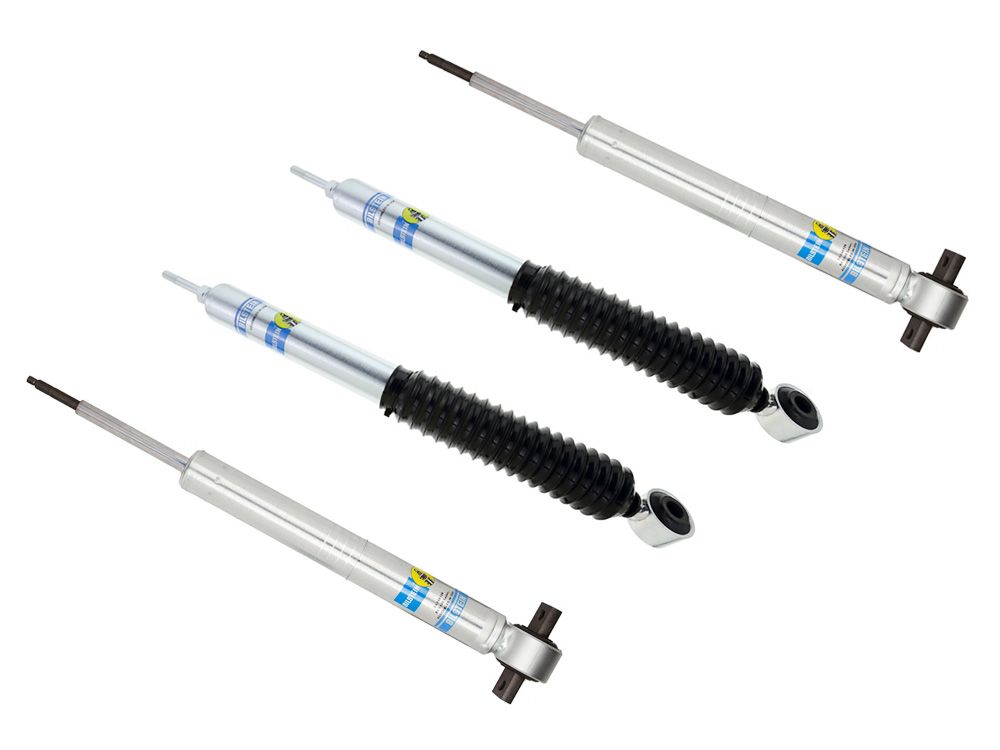

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.

Features & Benefits

• Adjustable Lift Height, Multiple Positions
• Great Solution to Level Vehicle
• Front shocks adjust from 0-2.5 inches
• Rear shocks fit with 0-1 inches of lift
• High-Pressure Mono-Tube Design
• Replaces Factory Struts, Keeps Coil Springs
• Zinc-Plated Finish with Clear Coat for Maximum Protection
• Complete set of 4 matching shocks
• Limited Lifetime Warranty

Front Lift Heights

• Circlip #1: Stock Height
• Circlip #2: 0.6 inch
• Circlip #3: 1.2 inch
• Circlip #4: 1.8 inch
• Circlip #5: 2.5 inches

Shock Specs

• Extended Length (front): 19.26 inches
• Compressed Length (front): 14.59 inches
• Top Mount (front): Stem
• Bottom Mount (front): Crossbar
• Extended Length (rear): 24.71 inches
• Compressed Length (rear): 15.55 inches
• Top Mount (rear): Eye 12.1mm
• Bottom Mount (rear): Eye 12.1mm
