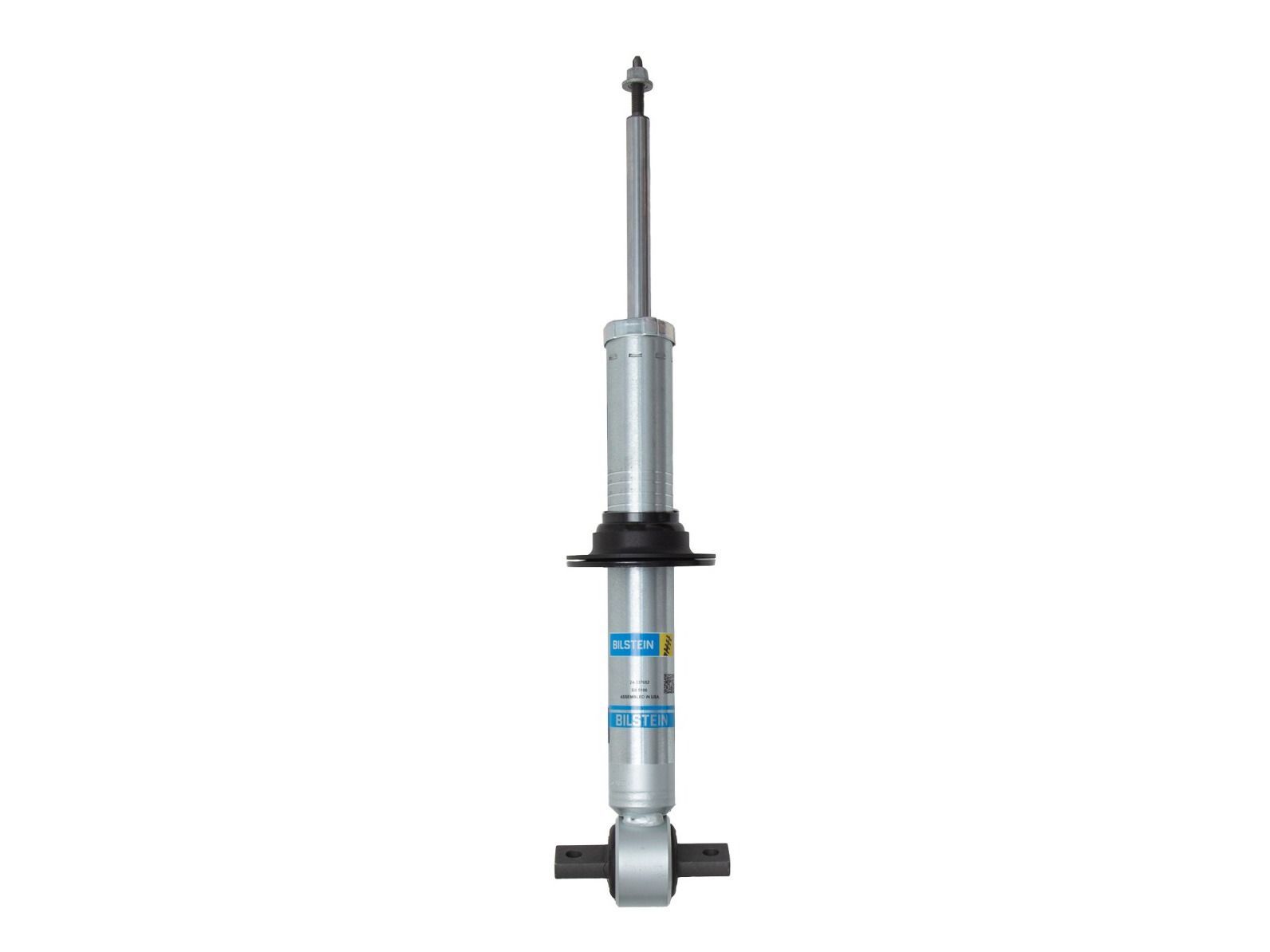

Colorado 2023-2026 Chevy - Bilstein Front B8 5100 Ride Height Adjustable Shock Absorber (0-2.5" Front lift)

The Bilstein 24-336345 B8 5100 Ride Height Adjustable Front Shock for the Chevy Colorado is engineered to improve ride quality, handling, and suspension performance while also leveling the front of your truck. Designed for vehicles equipped with a factory front coilover suspension, this premium monotube shock features multiple snap-ring grooves that allow the factory spring to be repositioned for up to 2.5 inches of front lift, depending on application. It's an ideal solution for eliminating factory rake while maintaining the reliability of the original coil spring.

Built around Bilstein's proven high-pressure gas monotube design, the B8 5100 utilizes a large 46mm digressive piston with a self-adjusting deflective disc valve to deliver responsive damping across a wide range of driving conditions. The monotube construction efficiently dissipates heat to reduce shock fade during extended use, while the increased shock travel enhances suspension articulation and overall vehicle control both on and off the road.

Finished with a durable zinc-plated coating for excellent corrosion resistance, the B8 5100 installs as a direct replacement using the factory coil spring and mounting locations. Whether you're leveling your Colorado or simply upgrading factory dampers, the Bilstein B8 5100 provides outstanding ride comfort, improved stability, and dependable performance for everyday driving and weekend adventures.

Features & Benefits

• Fits Chevy Colorado models with factory front coilover suspension
• Ride height adjustable design provides up to 2.5 inches of front lift, depending on the application
• Retains the factory front coil spring
• High-pressure gas monotube construction delivers fade-free performance
• 46mm digressive piston provides responsive, application-specific damping
• Self-adjusting deflective disc valve adapts to changing road conditions
• Multiple snap-ring grooves allow adjustable spring seat positioning
• Increased wheel travel improves suspension performance and vehicle control
• Smooth-body monotube construction promotes efficient heat dissipation
• Spring seat included for installation
• Durable zinc-plated finish resists corrosion
• Direct-fit replacement with non-adjustable damping
• Improves ride quality, handling, and front-end leveling

All Front LIft Height Settings:

• Position #1: Stock
• Position #2: .5 inch
• Position #3: 1 inch
• Position #4: 1.5 inch
• Position #5: 2 inch
• Position #6: 2.5 inch

Shock Specs

• Front Shock Extended Length: 20.91 inches
• Front Shock Compressed Length: 15.96 inches
• Finish: Zinc Plated
• Piston: 46mm
• Body Size: 46mm ID
• Coil Springs: Not included, uses factory springs
• Springs Seat: Included
