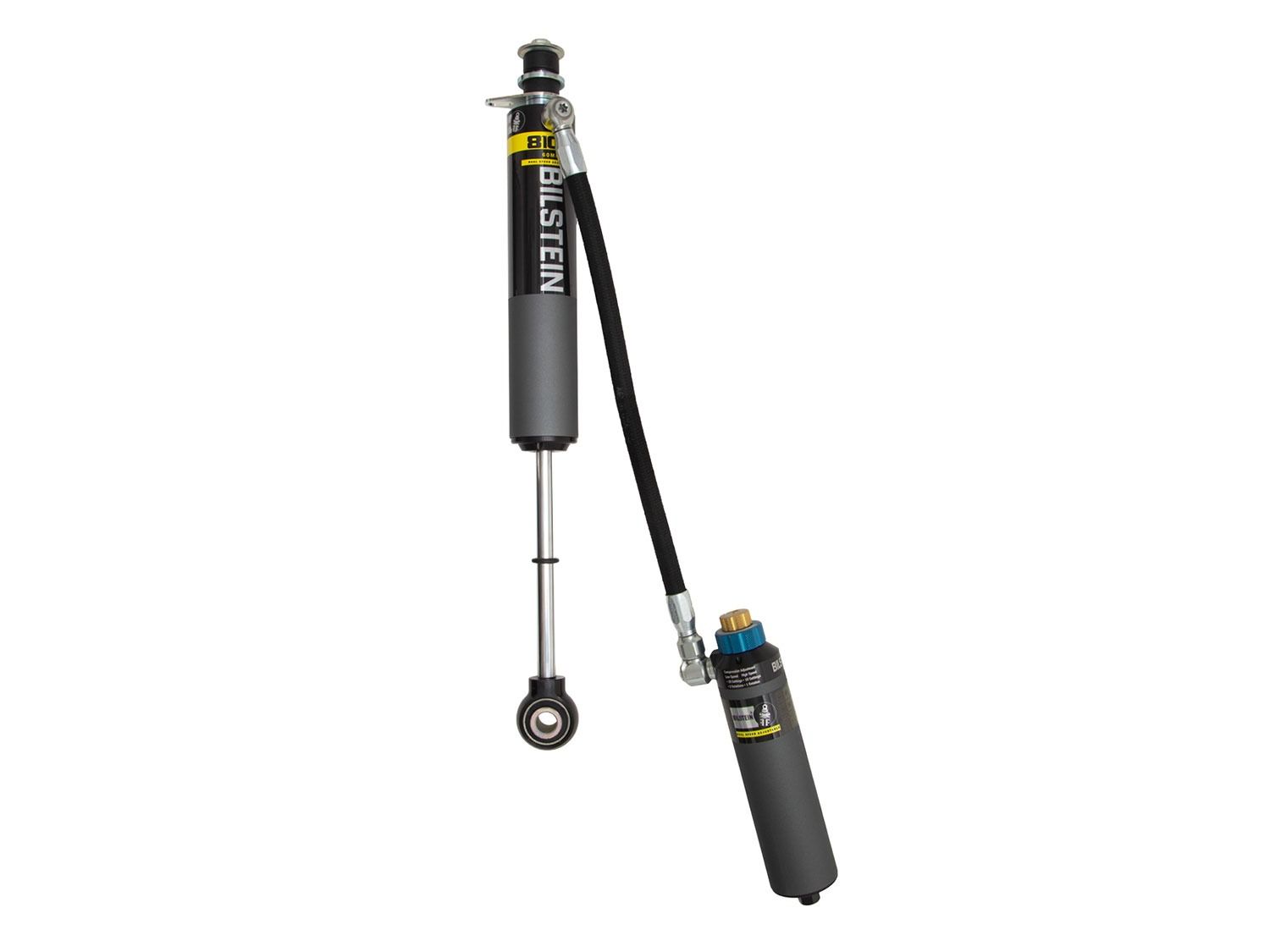

FJ Cruiser 2007-2014 Toyota - Bilstein REAR Adjustable B8 8100 (DSA) Series Shock

25-350500 Bilstein B8 8100 (DSA) Reservoir Shock Absorber improves suspension control and off-road performance on 2007–2014 Toyota FJ Cruiser models equipped with lifted suspension systems. Engineered for demanding off-road conditions and long-distance travel, this large-bore performance shock delivers increased damping capacity, improved heat management, and precise adjustability for a wide range of terrain.

The Bilstein B8 8100 series features a large 2.65" diameter shock body and 60mm piston that significantly increases oil capacity to manage heat during aggressive off-road use. Built from aerospace-quality billet components, the monotube design provides consistent, fade-resistant performance, while Bilstein’s velocity-sensitive, digressive valving delivers controlled damping tuned specifically for the vehicle.

This B8 8100 (DSA) version includes Dual Speed Adjustment, allowing independent tuning of high- and low-speed compression via external click-adjuster knobs. This system allows precise suspension tuning to match different driving conditions, from rocky trails and desert terrain to highway driving with added load.

A remote or piggyback reservoir design further improves cooling efficiency and overall shock performance. The large piston design enhances stability and ride comfort while maintaining excellent suspension control in both on-road and off-road environments.

Features and Benefits:

• 25-350500 Bilstein B8 8100 (DSA) reservoir shock absorber for 2007–2014 Toyota FJ Cruiser
• Large bore 2.65" shock body increases oil capacity for improved heat management
• 60mm piston improves suspension control and ride comfort
• Dual Speed Adjustment (DSA) allows independent high- and low-speed compression tuning
• External click adjuster knobs allow precise suspension tuning
• A remote or piggyback reservoir increases cooling capacity during aggressive driving
• Monotube design provides consistent fade-resistant performance
• Velocity-sensitive digressive valving tuned for vehicle-specific applications
• Aerospace-grade billet construction enhances strength and durability
• Bypass-style body design with EVO grey finish
• Extended length: 23.48 inches
• Collapsed length: 14.94 inches
• Upper mount: stem
• Lower mount: eye 19.1mm
• 18mm shaft diameter
• Adjustable damping with high- and low-speed compression click adjusters
