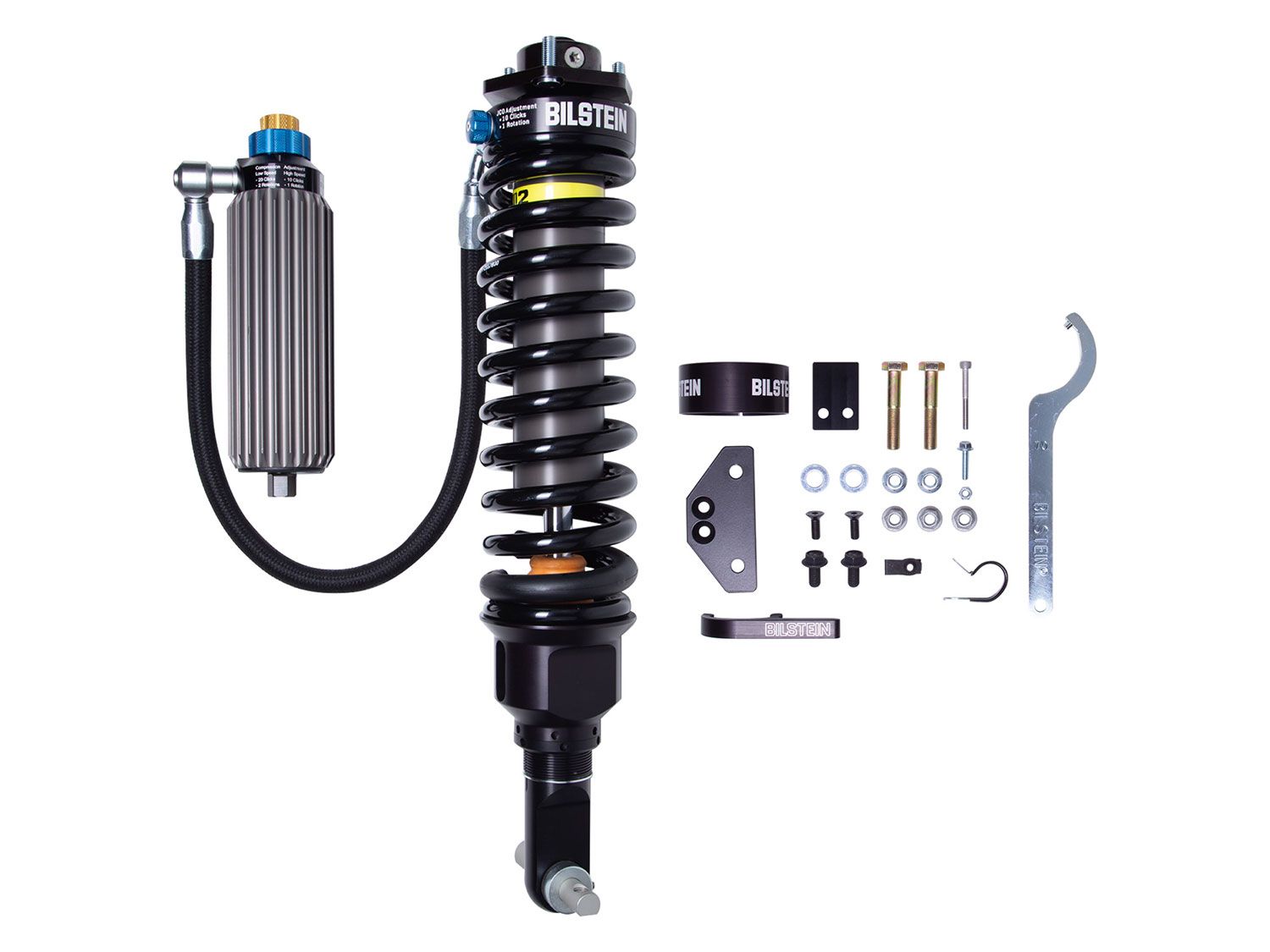

Bronco 2021-2025 Ford 4wd - Bilstein FRONT (LEFT Side) B8 8112 Black Hawk Coil-Over (0-2.5" Lift)

The Bilstein B8 8112 Black Hawk 3-Way Adjustable Coilovers are engineered as a direct-fit, high-performance suspension solution for the Ford Bronco. The 41-314319 Coilover is designed to deliver exceptional handling, comfort, and durability, this system combines advanced engineering with precision adjustability for the ultimate on- and off-road driving experience.

Featuring a large 2.65-inch aluminum shock body paired with a unique finned remote reservoir, the B8 8112 utilizes Bilstein’s ZoneControl® position-sensitive damping technology. This innovative design provides independent control over both compression and rebound, ensuring smooth and predictable performance across various terrains. With 3 external damping adjustments—high-speed compression, low-speed compression, and internal bump stop tuning—the system allows for complete customization to match any driving condition or load setup.

The ZoneControl® system virtually eliminates harsh bottoming while maintaining a refined, controlled feel over smaller bumps and irregular surfaces. Constructed from high-strength aluminum with an EVO Grey finish and paired with black coil springs, these coilovers not only perform at the highest level but also provide an aggressive, modern appearance. With a 400 lb/in front main spring rate, 60mm piston, and 22mm shaft diameter, the Bilstein B8 8112 Black Hawk delivers strength, precision, and reliability in every application. Built for drivers who demand versatility and confidence, this system provides exceptional damping consistency, whether fully loaded or unloaded, on pavement or off-road. The Bilstein B8 8112 Black Hawk sets a new standard for ride quality and performance in the premium suspension category.

Bilstein's B8 8112 Black Hawk Coil-Overs come equipped with an adjustable threaded spring seat perfect for leveling or lifting your vehicle (0 to 2.5 inches depending on sub-model), increasing ground clearance, and installing larger tires.

Features & Benefits:

• Direct-fit, high-performance suspension system for trucks and SUVs
• Lifts front of vehicle 0 to 2.5 inches (includes adjustable threaded spring seat to fine-tune lift height), lift height various depending on sub-model, see instructions for specific lift height
• 2.65-inch aluminum shock body for strength and improved heat dissipation
• Finned remote reservoir enhances cooling and overall damping performance
• ZoneControl position-sensitive damping for independent compression and rebound control
• Three-way adjustability with high-speed compression, low-speed compression, and internal bump stop tuning
• Virtually eliminates harsh bottoming while maintaining a smooth, controlled ride
• Constructed from high-strength aluminum with an EVO Grey finish and black springs
• 400 lb/in front main spring rate for balanced performance and stability
• 60mm piston and 22mm shaft diameter ensure precision and durability
• Delivers consistent damping performance across on-road and off-road conditions
• Provides refined comfort and control, whether fully loaded or unloaded
• Engineered for maximum performance, reliability, and visual appeal

Typical Lift heights:

• With Sasquatch Package 4-door:
  • Exposed Threads: 3/4" - Lift Height: 1.4"
  • Exposed Threads: 11/16" - Lift Height: 1.3"
  • Exposed Threads: 1/2" - Lift Height: 1.0"
  • Exposed Threads: 1/4" - Lift Height: 0.5"
  • Exposed Threads: 0" - Lift Height: STOCK
• With Badlands Package 4-door:

  • Exposed Threads: 3/4" - Lift Height: 2"
  • Exposed Threads: 11/16" - Lift Height: 1.9"
  • Exposed Threads: 1/2" - Lift Height: 1.6"
  • Exposed Threads: 1/4" - Lift Height: 1.1"
  • Exposed Threads: 0" - Lift Height: 0.7"
• Base Package 4-door:
  • Exposed Threads: 3/4" - Lift Height: 2.6"
  • Exposed Threads: 11/16" - Lift Height: 2.5"
  • Exposed Threads: 1/2" - Lift Height: 2.3"
  • Exposed Threads: 1/4" - Lift Height: 2.0"
  • Exposed Threads: 0" - Lift Height: 1.7"
• With Sasquatch Package 2-door:
  • Exposed Threads: 3/4" - DO NOT USE
  • Exposed Threads: 11/16" - Lift Height: 1.7"
  • Exposed Threads: 1/2" - Lift Height: 1.4"
  • Exposed Threads: 1/4" - Lift Height: 1.0"
  • Exposed Threads: 0" - Lift Height: 0.6
• With Badlands Package 2-door:

  • Exposed Threads: 3/4" - DO NOT USE
  • Exposed Threads: 11/16" - DO NOT USE
  • Exposed Threads: 1/2" - Lift Height: 2.0"
  • Exposed Threads: 1/4" - Lift Height: 1.6"
  • Exposed Threads: 0" - Lift Height: 1.2"
• Base Package 2-door:
  • Exposed Threads: 3/4" - DO NOT USE
  • Exposed Threads: 11/16" - DO NOT USE
  • Exposed Threads: 1/2" - DO NOT USE
  • Exposed Threads: 1/4" - DO NOT USE
  • Exposed Threads: 0" - Lift Height: 2.4"
