4Runner 2010-2024 Toyota (w/o KDSS) - Bilstein FRONT LEFT Adjustable B8 8112 (Zone Control DSA+) Series Coilover

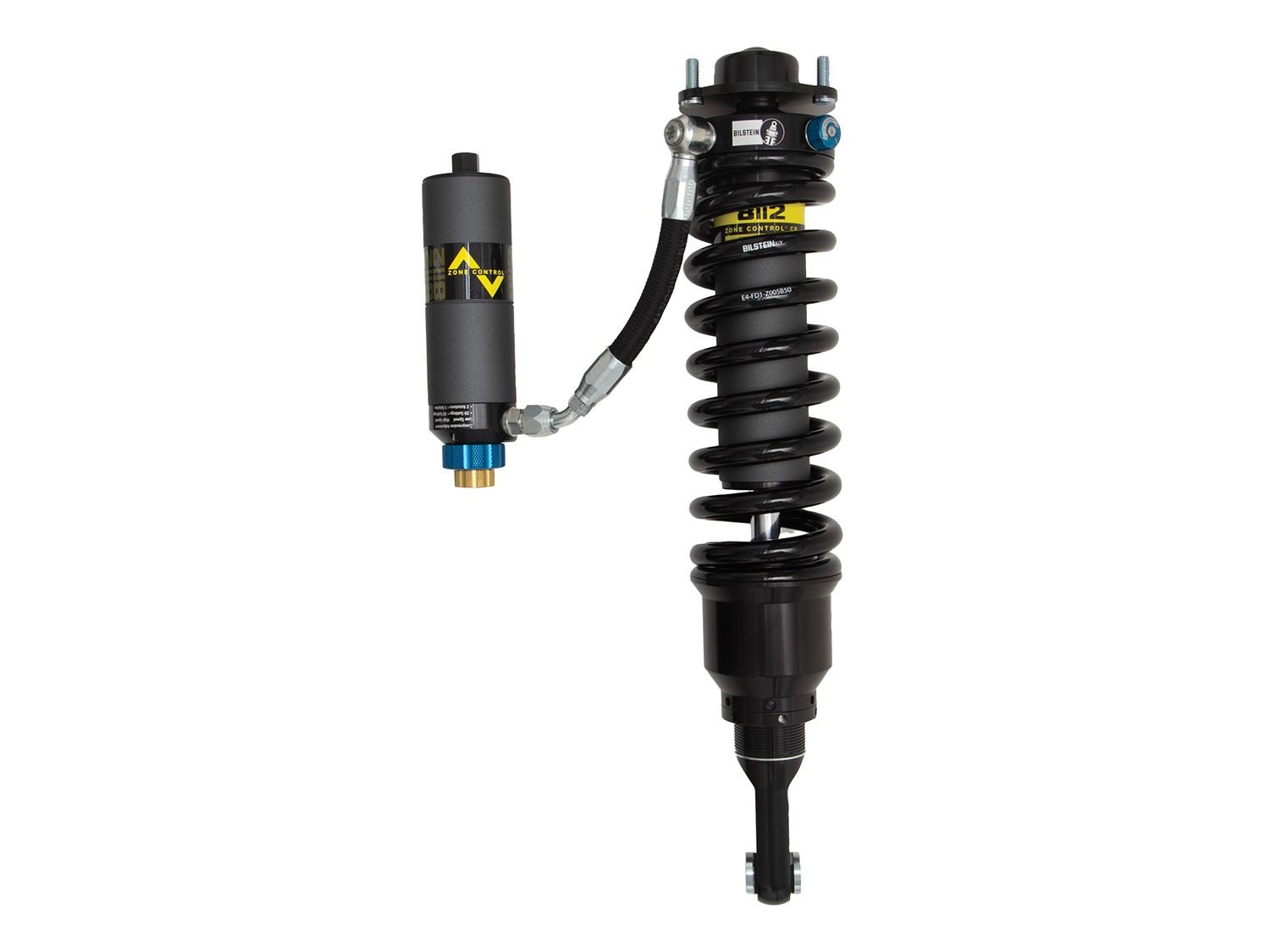

41-326268 Bilstein B8 8112 ZoneControl CR DSA+ Coilover Kit delivers advanced suspension performance and precise adjustability for 2010–2024 Toyota 4Runner models. Designed for drivers who demand maximum off-road capability and refined on-road comfort, this direct-fit coilover system combines position-sensitive damping with dual-speed compression adjustability to deliver exceptional suspension control across varied terrain.

The Bilstein B8 8112 system features ZoneControl CR DSA+ technology, utilizing a triple piston design that provides three stages of compression valving and two stages of rebound control. This position-sensitive damping system keeps the suspension comfortable during everyday driving while delivering greater control during large suspension inputs, such as dips, bumps, and aggressive off-road obstacles.

External click adjuster knobs enable precise Dual Speed Adjustment of low- and high-speed compression damping, allowing the suspension to be tuned for specific driving conditions. The system also includes an adjustable internal hydraulic bump stop known as JCO (Jounce Cut Off), which provides additional bottom-out protection during hard compression events. A threaded spring seat allows ride height adjustments from 0–3 inches depending on application requirements.

A remote reservoir improves cooling capacity and helps maintain consistent damping performance during demanding off-road use. Combined with Bilstein’s large 2.65" shock body and 60mm piston, the B8 8112 coilover system provides improved suspension stability, ride comfort, and the ability to quickly adapt suspension tuning for changing terrain.

Features and Benefits:

• 41-326268 Bilstein B8 8112 ZoneControl CR DSA+ coilover kit for 2010–2024 Toyota 4Runner
• ZoneControl CR DSA+ triple piston design provides position-sensitive damping
• Three stages of compression valving and two stages of rebound control
• Dual Speed Adjustment allows independent tuning of high- and low-speed compression
• Internal hydraulic bump stop (JCO) improves bottom-out control
• Threaded spring seat allows ride height adjustment from 1–3 inches (depending on sub model, see instructions download)
• Large 2.65" shock body increases oil capacity for improved heat management
• 60mm piston improves damping control and ride comfort
• Remote reservoir improves cooling and performance during aggressive driving
• Monotube design provides consistent fade-resistant performance
• EVO grey dampers with black coil springs
• Front spring rate: 600 lbs/in
• Extended length: 22.24 inches
• Collapsed length: 17.43 inches
• Upper mount: special mount design
• Lower mount: eye 14.1mm
• 22mm shaft diameter
