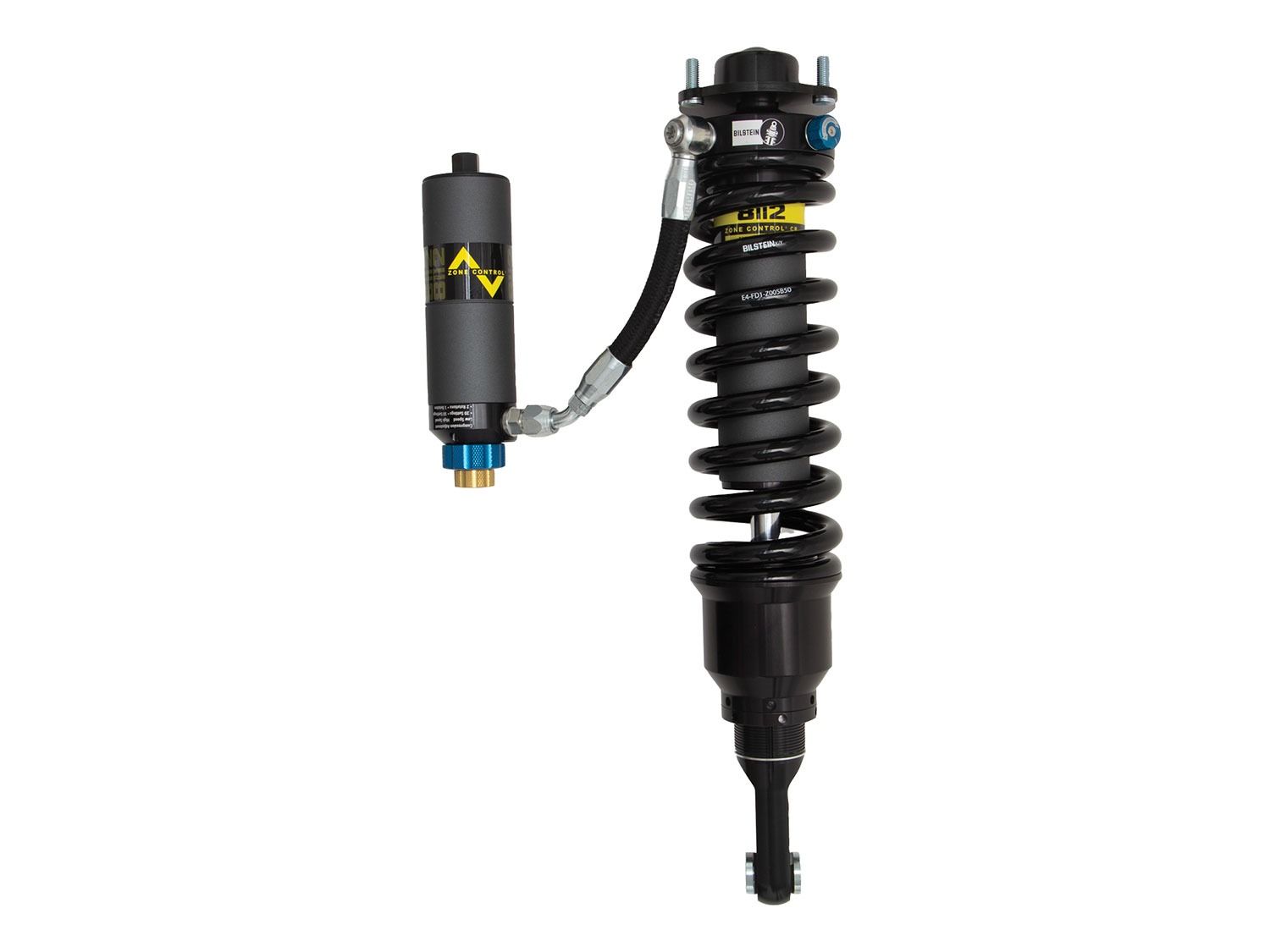

FJ Cruiser 2007-2009 Toyota 4WD - Bilstein FRONT LEFT Adjustable B8 8112 (Zone Control DSA+) Series Coilover

41-326343 Bilstein B8 8112 ZoneControl CR DSA+ Coilover Kit delivers advanced suspension performance and precise adjustability for 2007–2009 Toyota FJ Cruiser models. Designed for drivers who demand maximum off-road capability with refined on-road comfort, this direct-fit coilover system combines position-sensitive damping with dual-speed compression adjustability to provide exceptional control across varying terrain.

The Bilstein B8 8112 system features ZoneControl CR DSA+ technology, utilizing a triple piston design that provides three stages of compression valving and two stages of rebound control. This position-sensitive damping system allows the suspension to remain comfortable under normal driving conditions while delivering greater control when encountering larger suspension inputs, such as rough terrain, dips, and high-speed impacts.

External click adjuster knobs allow precise Dual Speed Adjustment of both high-speed and low-speed compression damping, enabling the suspension to be tuned for different driving conditions. The system also includes an adjustable internal hydraulic bump stop known as JCO (Jounce Cut Off), which helps control bottom-out events during aggressive off-road use. A threaded spring seat allows ride height adjustments from 0 to 3 inches, depending on the application.

A remote reservoir increases oil capacity and cooling efficiency to maintain consistent damping performance during demanding off-road driving. Combined with Bilstein’s large 2.65" shock body and 60mm piston, the B8 8112 coilover system provides improved ride quality, enhanced stability, and the ability to quickly adapt suspension performance for any terrain.

Features and Benefits:

• 41-326343 Bilstein B8 8112 ZoneControl CR DSA+ coilover kit for 2007–2009 Toyota FJ Cruiser
• ZoneControl CR DSA+ triple piston design provides position-sensitive damping
• Three stages of compression valving and two stages of rebound control
• Dual Speed Adjustment allows independent tuning of high- and low-speed compression
• Internal hydraulic bump stop (JCO) improves bottom-out control
• The threaded spring seat allows ride height adjustment from 0 to 3 inches
• Large 2.65" shock body increases oil capacity for improved heat management
• 60mm piston improves damping control and ride comfort
• Remote reservoir improves cooling and performance during aggressive driving
• Monotube design provides consistent fade-resistant performance
• EVO grey dampers with black coil springs
• Front spring rate: 600 lbs/in
• Extended length: 22.24 inches
• Collapsed length: 17.43 inches
• Upper mount: special mount design
• Lower mount: eye 14.1mm
• 22mm shaft diameter
