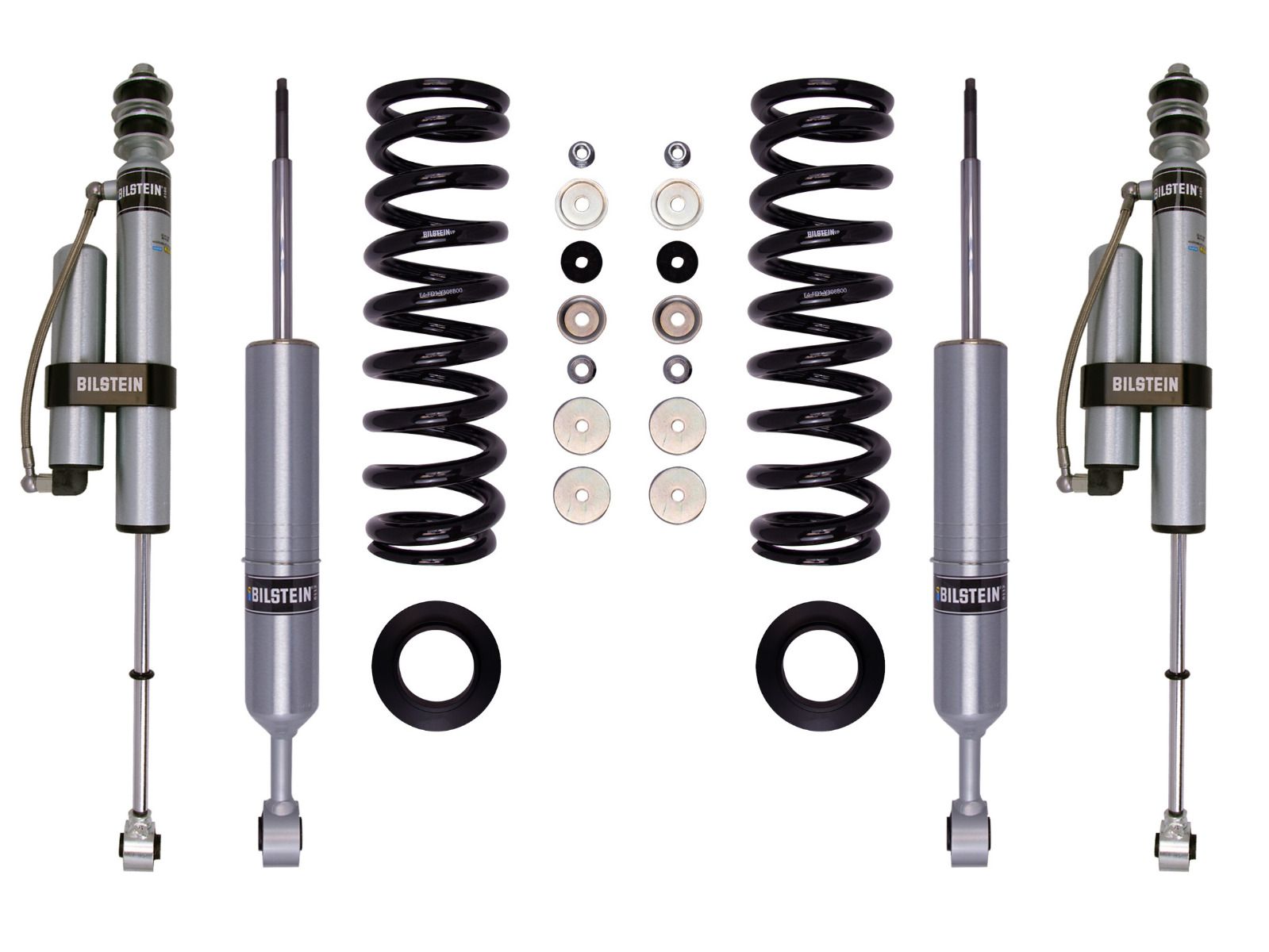

Tundra 2007-2021 Toyota 4wd & 2wd - Bilstein 6112 Series Adjustable Height Coil-Over / 5160 Series Reservoir Shock Kit (Set of 4)

Brand: Bilstein | SKU: 47-310971-25-311365
From $1,463.00 Regular Price $1,685.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply



Note: Assembled Coilovers include top hat mounts and hardware. Allow 2 to 7 days for processing before shipping.

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This custom built Bilstein Toyota Tundra package features the Bilstein 6112 Series Front Adjustable Height Coil-Overs paired with the Bilstein 5160 Series Remote Reservoir shocks for the ultimate off-road peformance mixed with amazing good looks!

The Bilstein 6112 Front Shock / Coil Spring Lift Kit (Coil-Over) 47-310971 for the Toyota Tundra is an excellent solution to lift the front end of your vehicle between .75 to 2.5 inches. Using Bilstein's snap ring ride height adjustment these can easily be set at different ride heights before installation. With a massive 60mm digressive piston these mono-tube gas shocks are ideal for those serious about their off-roading adventures.  The zinc coating finish protects the metal from oxidation and improves durability while giving the shocks a great look.

This Bilstein 5160 Series 25-311365 Remote Reservoir Rear Shock Absorber is custom valved for the Toyota Tundra. These feature a remote reservoir that dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity.  A corrosion resistant zinc plated finish with a clear coating is used for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Top Features and Benefits

  • Adjustable Front Ride Height (.75 to 2.5 inches) / Rear fit with 0" to 1.5" of lift
  • Ideal for Serious Off-Road Drivers
  • Mono-Tube Gas Design to eliminate fading
  • Great looking silver zinc finish with clear coat for oxidation resistance
  • Massive 60mm digressive piston improve ride comfort
  • Tuned for specific models
  • Includes Front (2) Struts, (2) Springs, (2) Spring Seats, Rear (2) Shocks w/remote reservoirs
  • Large shock body to more oil capacity, cooling and durablity
  • Made in the USA

Assembled 6112 Option

The Bilstein 6112 kits require assembly before installation, which involves mounting the coil springs onto the struts using a coil spring compressor (a commercial-grade compressor is recommended). Due to the high tension required to compress the springs and the potential risk of injury, an experienced technician is the best person to handle this process.

To simplify assembly and installation for our customers, Jack-It offers the Bilstein 6112 coilovers pre-assembled (see options above). Each set comes with new top hat mounts and hardware, and is pre-set to one of four available lift heights to suit your vehicle best. Jack-It has specialized in suspension products for trucks and SUVs since 1994. Our experienced staff and technicians ensure every kit is configured and assembled correctly for optimal performance. Please note: selecting the assembled option adds approximately 2 to 7 business days to order processing time.

Important Notes1. The assembled coilovers add approximately 2 to 7 business days to order processing time.
2. Does not fit TRD Pro models.
Vehicle Fitment
MakeToyota
ModelTundra
Year Fitment2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBilstein
Manufacturer Part Number47-310971-25-311365
Item Numberbil_47-310971-25-311365
MPN(UPC)651860741260
Product LineShock Absorbers
Shock SeriesBilstein 6112 Series
Front/RearFront and Rear Kit
