2.5" 2024-2026 Wrangler JL Jeep 4WD - B8 5100 LIft Kit by Bilstein

The Bilstein 53-350510 B8 5100 Lift Kit for Jeep Wrangler JL models is a complete performance suspension system designed to increase ground clearance, tire clearance, wheel travel, and articulation while maintaining a smooth, stable ride on and off the road. The kit includes four Bilstein B8 5100 monotube shock absorbers, four custom-matched B12 long-travel cold-wound coil springs, and the supporting components needed for increased suspension travel. Wrangler JL Rubicon models can accommodate up to 35-inch tires, while non-Rubicon models with factory fenders can accommodate up to 33-inch tires.

Bilstein B8 5100 monotube shocks provide consistent damping performance at all four corners and feature 2-inch-diameter shock bodies. The shocks are paired with application-matched B12 long-travel coil springs engineered to provide the increased ride height and suspension movement required for the lifted configuration. Together, the matched spring and shock package increases usable wheel travel and articulation while maintaining controlled handling for everyday driving and off-road use.

The B8 5100 Lift Kit is engineered around the factory Wrangler JL suspension and installs using the original suspension mounting locations. The system delivers the intended lift and increased travel without the extra suspension-geometry correction components commonly found on other lift systems. This approach provides extra tire clearance without excessive wheel gap while maintaining balanced suspension performance.

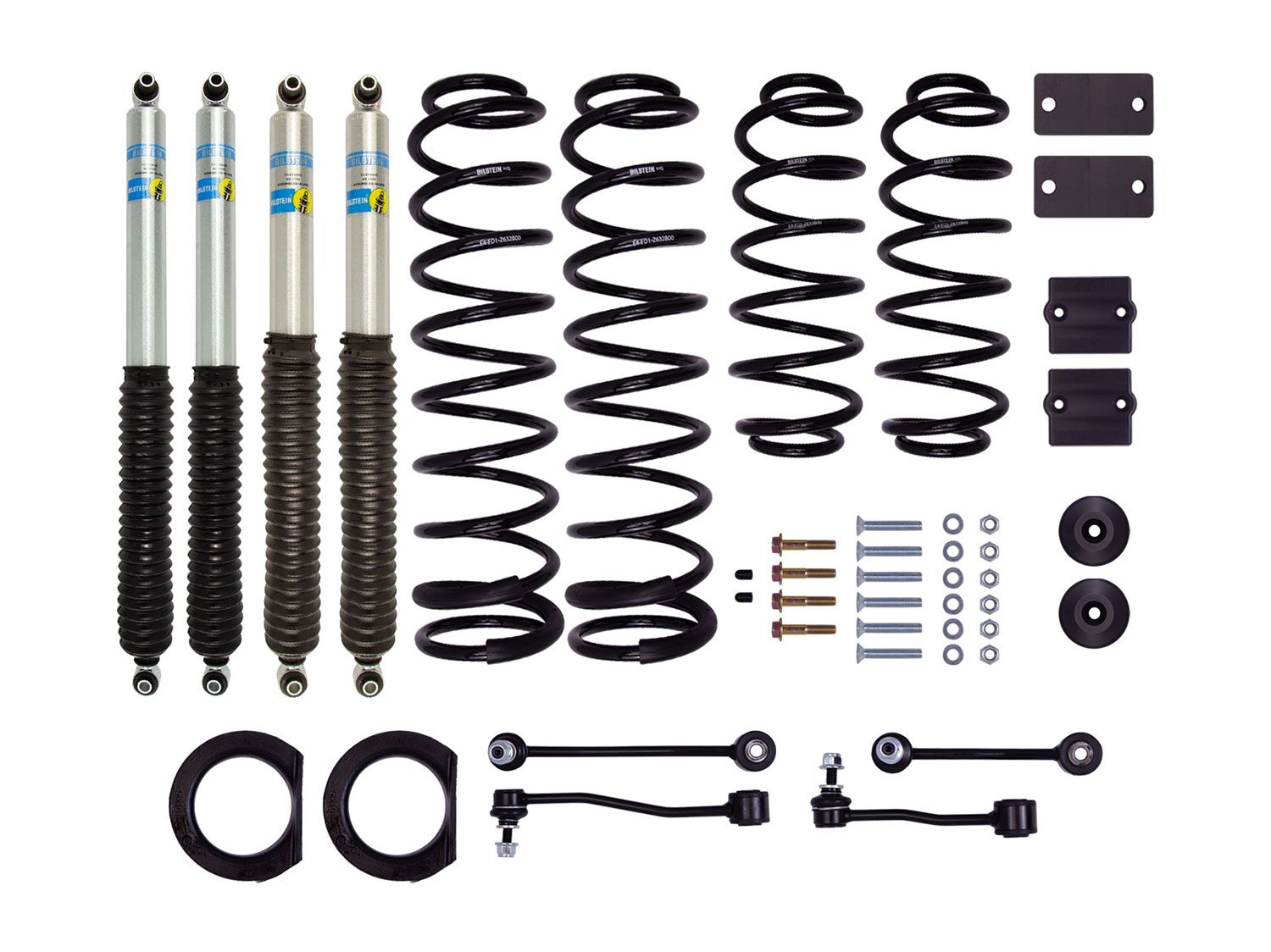

Supporting components include four extended sway bar links, four bump stop spacers, two rear sway bar relocation brackets, and two front coil spring isolators. The kit also includes related installation hardware and detailed instructions, providing a comprehensive bolt-on suspension package designed to work together as a complete system.

Features and Benefits

• Complete Bilstein B8 5100 suspension lift kit for Jeep Wrangler JL models
• Increases ground clearance, tire clearance, wheel travel, and suspension articulation
• Includes four Bilstein B8 5100 monotube shock absorbers
• B8 5100 shocks feature 2-inch-diameter bodies for consistent damping performance
• Includes four custom-matched B12 long-travel cold-wound coil springs
• Matched spring and shock package provides smooth, stable performance on and off the road
• Allows Wrangler JL Rubicon models to accommodate up to 35-inch tires
• Allows non-Rubicon Wrangler JL models with factory fenders to accommodate up to 33-inch tires
• Optimizes the factory Wrangler JL suspension without requiring additional suspension geometry correction components
• Bolt-on design utilizes factory suspension mounting locations
• Includes four extended sway bar links to support increased suspension travel
• Includes four bump stop spacers for proper suspension compression control
• Includes two rear sway bar relocation brackets
• Includes two front coil spring isolators
• Includes related installation hardware and detailed instructions
