3" 1994-2002 Dodge Ram 2500/3500 4wd (w/Diesel Engine) Backcountry Lift System by Carli Suspension

This Carli Suspension CS-D3-BC-CS-94-D 3-inch Backcountry lift system for the Dodge Ram 2500 / 3500 4wd diesel models is a premium lift kit that will raise your vehicle enough to fit up to 35 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best ride quality during on-road, highway, towing/hauling, and slow to mid-speed off-road use.

This lift system features 3-inch lift front coil springs with a slightly reduced multi-rate for better ride comfort. Carli SPEC 2.0 Performance Series Remote Resi shock absorbers are paired with the coil springs. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload) or the Carli progressive rate 1" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a 3/4 ton spec. You can make your selection in the options section below.

Features & Benefits:

• 3 inch front lift / 0 to 1 inch rear lift (optional rear lift)
• Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
• Shocks are fully serviceable and rebuild-able
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Rear lift is optional, but Carli progressive 1" lift leaf springs are highly recommended for ride quality and a level ride (see in options below)
• Designed to greatly improve ride quality for on-road use
• Front Travel = 10" / Rear Travel = 11"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires

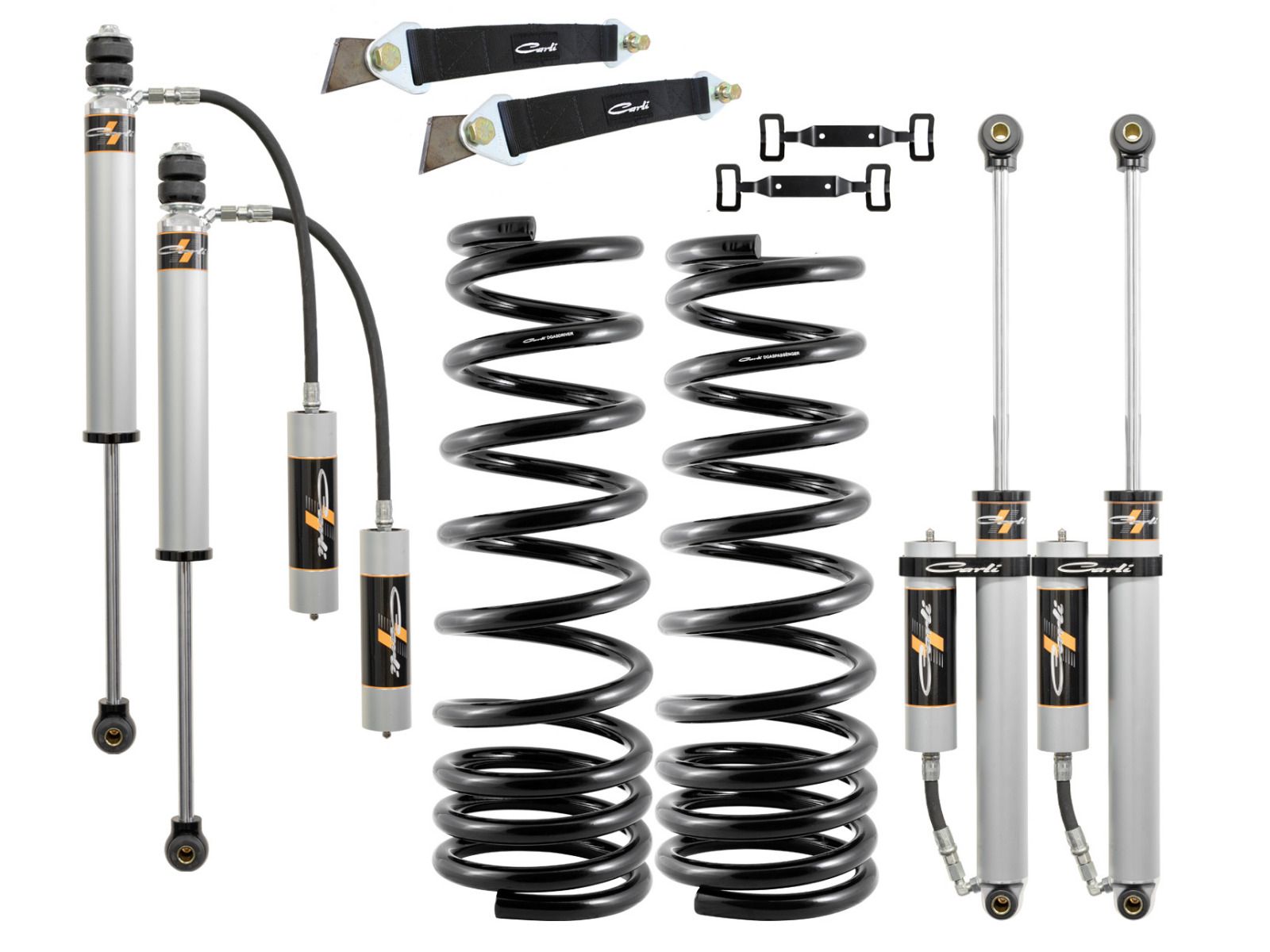

Components Included:

• CS-DMRC-03-H: Front Mulit-Rate Coil Springs
• CS-D3SPKG-CS20RR-D2: Carli SPEC 2.0 Remote Resi Front and Rear Shocks, Resi Mounts and Limiting Straps

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
