Ram 2500 2014-2025 Dodge Power Wagon 4WD - Extended Rear Track Bar Kit by Carli Suspension

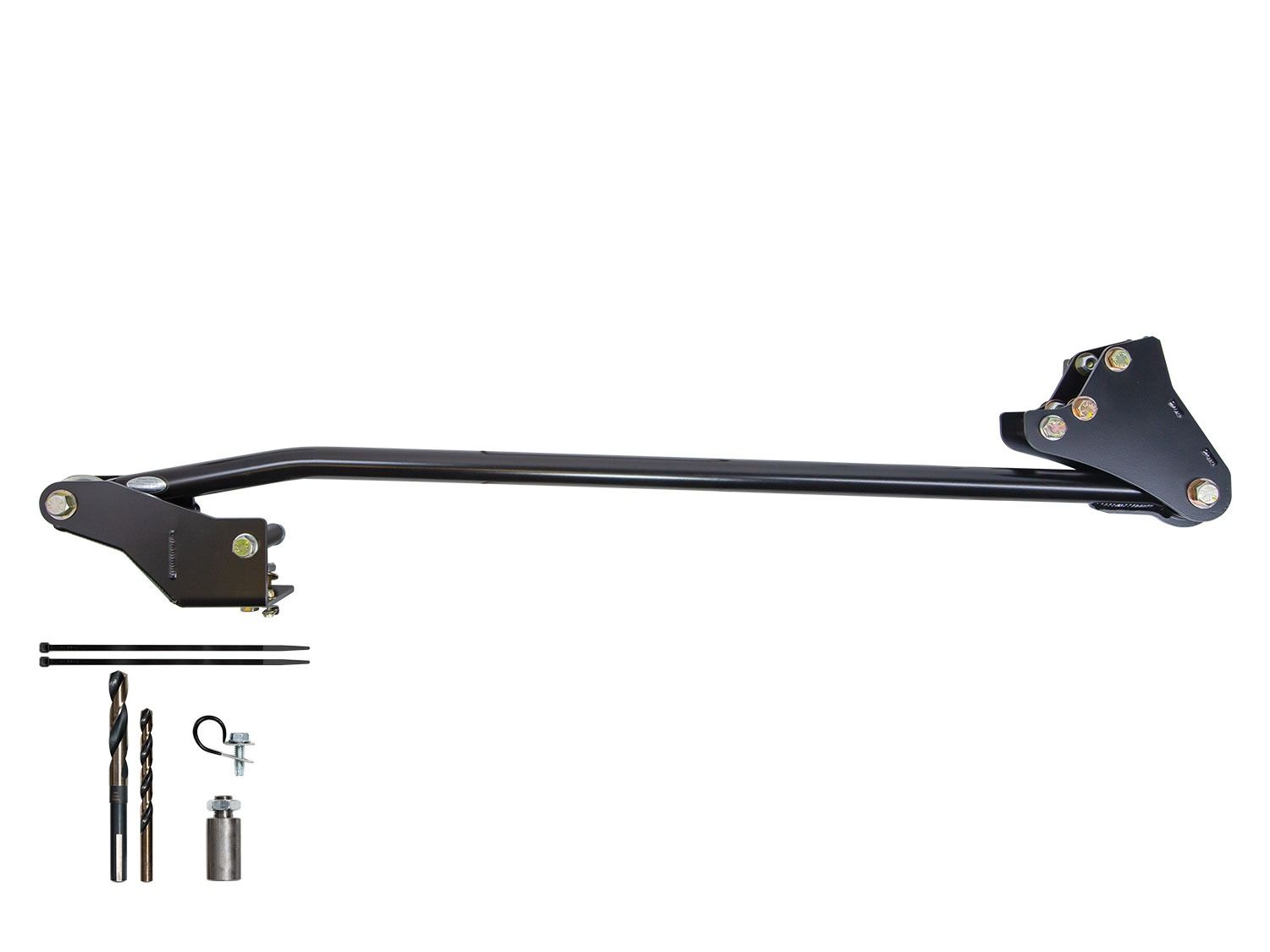

Eliminate rear-end wander and restore precise suspension control on your 2014+ Ram 2500 Power Wagon 4WD with the Carli Suspension Extended Rear Track Bar (CS-DATB-14-R-PWKIT). Engineered specifically for Rams equipped with the factory 5-link rear suspension, this track bar dramatically improves stability by correcting axle path, roll center, and lateral movement.

The Carli rear track bar is a massive 13.8 inches longer than the factory bar, allowing the rear axle to travel through a far more linear arc. This extended length significantly reduces effective track bar shortening and angle change through suspension travel—eliminating the rear “yaw” or side-to-side wag commonly felt in lifted Ram trucks. To further optimize performance, Carli raises the axle-side mount and lowers the frame-side mount, flattening the bar at ride height where the truck spends most of its time.

Constructed from 3/8-inch wall DOM steel tubing, the bar is stronger than the factory mounting brackets themselves. It threads directly into a 1-inch shank FK chromoly heim joint on the axle side, while the frame side features Carli’s NVH-isolated CUB joint with a PTFE-lined FK bearing for smooth articulation and long service life. This design delivers maximum strength and articulation without transferring noise or harshness into the cab.

Features & Benefits

• Fits 2014+ Ram 2500 4WD models
• 13.8” longer than the factory rear track bar
• Corrects rear axle path to eliminate lateral “yaw”
• Optimized rear roll center for improved balance and control
• Flattened track bar geometry at ride height
• 3/8” wall DOM steel construction for extreme strength
• Axle end features 1” shank FK chromoly heim joint
• Frame end uses NVH-isolated PTFE-lined FK bearing (CUB joint)
• Designed for Carli 2” Power Wagon suspension systems
• Made in the USA
