Ram 2500 2014-2024 Dodge 4WD (w/0-3" Lift) Front End Upgrade Kit by Carli Suspension Brand: Carli Suspension | SKU: CS-DFEU-1419
$1800
- +
1800

Ram 2500 2014-2024 Dodge 4WD (w/0-3" Lift) Front End Upgrade Kit by Carli Suspension

Brand: Carli Suspension | SKU: CS-DFEU-1419
$1,800.00

Ram 2500 2014-2024 Dodge 4WD (w/0-3" Lift) Front End Upgrade Kit by Carli Suspension

Brand: Carli Suspension | SKU: CS-DFEU-1419
$1,800.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

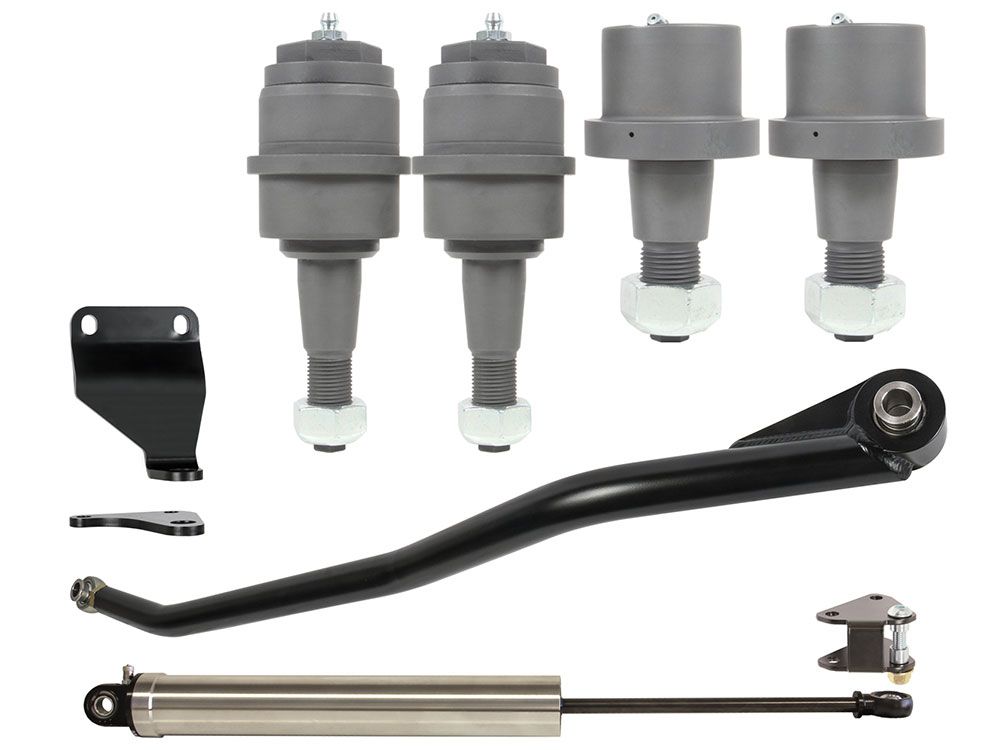

Carli Suspension's CS-DFEU-1419 Front End Upgrade Kit for Dodge Ram 2500 trucks is a great suspension upgrade to help drivability and stability issues while tackling the notorious "death wobble" commonly found on Ram models. The suspension components included in this kit is an adjustable front track bar, a replacement steering stabilizer and heavy duty ball joints.

The track bar is a critical component beneath the front end of a heavy-duty truck, and our upgrade addresses common front-end issues, including the "Death Wobble." The Adjustable Track Bar is designed to center the axle on leveled/lifted Rams, improving steering input and reducing deflection compared to the stock bar. It features a 1.5″ OD, 3/8″ wall tube, a 7/8″ FK Bearing chromoly race heim joint, and a 7/8″ FK Bearing Uniball, all contributing to exceptional strength and durability.

The Carli Stabilizer (low mount), with an internal floating piston (IFP), prevents cavitation for superior damping function. Its construction includes a Stainless Steel body, Machined Billet Aluminum Rod ends, and a hardened Black Nitride Shaft. The nitrogen chamber is adjustable from 70psi to 200psi, providing customization options for correcting tire-pull. This stabilizer replaces the factory stabilizer for a substantial upgrade.

The Carli Extreme Duty Upper and Lower Ball Joints for the Ram 2500 are ultra high-quality ball joints that offer significant front-end improvements for your truck, ensuring lasting durability and enhanced performance. The design features a floating King-Pin upper with smart enhancements, including contact between the "hat" of the pin and the housing for lateral load distribution and fail-safe measures. The larger upper cavity allows for increased grease capacity, and a threaded cap provides easy access and servicing through the zerk fitting. The lower ball joints are equally impressive, featuring a recessed Zerk fitting, channels for grease migration, and a bronze wear surface, all without the need for liners.

Features & Benefits:

  • Helps with drivability and stability issues
  • Improves or eliminates "Death Wobble"
  • Includes Adjustable Track Bar, Low Mount Steering Stabilizer as well as Heavy Duty Upper and Lower Ball Joints
  • Fits models with 0 to 3 inches of front lift
  • Adjustable Track Bar: Tightens steering feel while extending service life, allows axle centering up to 3" of front lift, CUB frame joint combines with 7/8" FK Axle Heim to dampen vibration
  • Low Mount Stabilizer: Higher nitrogen charge pushes to the right to counter-act a left hand tire pull (common with larger tires), IFP design (Internal Floating Piston), 304 Stainless Steel Body with Aluminum Top-Cap, Billet Aluminum rod ends with 1/2 inch bearings
  • Extreme Duty Ball Joints: Carli's upper ball joint includes a "hat" that contacts the housing while distributing lateral load and providing a failsafe mechanism, The upper joint cavity is larger, allowing for a greater grease reserve, and a threaded cap offers easy access and servicing through a zerk fitting
  • Carli provides a Limited Lifetime Warranty
Vehicle Fitment
MakeDodge
ModelRam 2500
Year Fitment2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-DFEU-1419
Item Numbercar_cs-dfeu-1419
MPN(UPC)883584138716
Product LineSteering Corrections
