4.5" 2000-2005 Ford Excursion 4wd (w/Diesel Engine) Performance 2.5 System by Carli Suspension Brand: Carli Suspension | SKU: CS-FEXP25-6.0 / CS-FEXP25-7.3
$8690
- +
8690
4.5" 2000-2005 Ford Excursion 4wd (w/Diesel Engine) Performance 2.5 System by Carli Suspension
From $8,690.00
4.5" 2000-2005 Ford Excursion 4wd (w/Diesel Engine) Performance 2.5 System by Carli Suspension
From $8,690.00
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Got Questions? We can help!
888-452-2548
Product Description

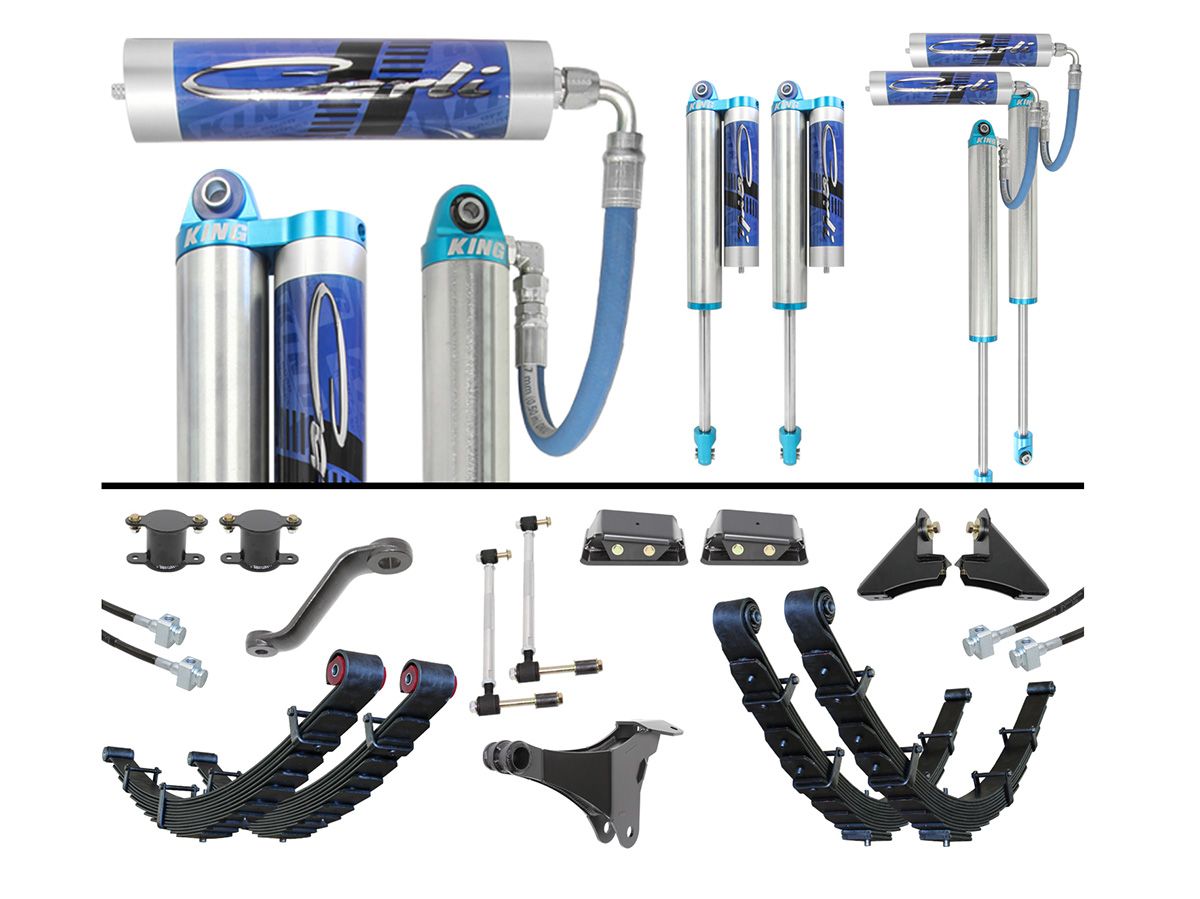

This Carli Suspension CS-FEXP25-6.0 / CS-FEXP25-7.3 4.5 inch Performancde lift system for the Ford Exucursion 4wd diesel models is a ultra premium lift kit that will lift your vehicle enough to fit up to 35 inch x 12.5 inch tires. Using custom tuned King 2.5" Remote Reservoir Shocks this kit is perfect for Excursion owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling along with slow to high speed off road use. Featured in this lift kit system are custom Carli / Dever leaf springs for both the front and rear. These progressive leaf springs use a lighter spring rate for improved ride quality. 4.5 inch lift front leaf spring are included along with 2.25 inch rear lift springs that eliminate the factory blocks. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity. Carli offers optional Long-Travel airbags to increase lost load capacity. Paired with the leaf springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. To keep the front axle centered properly a front drop track bar bracket is included. A drop pitman arm keeps the steering angles proper to elminate bump steering. Front extended sway bar endlinks keep the factory sway bar from binding. Additionally, a Front and Rear Bump Stop Drops are provided to ensure the springs maintain proper clearance from the factory bump stop. Features & Benefits:
Components Included:
Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below. |
| Important Notes 1. Recommend 17”-18” wheels, no more than 9” wide with 4.5” of backspacing with 35 inch diameter tires. |
Available Options
Long Travel Air Bags
Excursion 2000-2005 Ford 4WD (w/4.5" lift) Long Travel Air Spring System by Carli SuspensionRead More
The Carli Suspension Long Travel Air Bag System for the Ford Excursion are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.
- Restores factory payload to Carli full progressive springs
- Works with Carli 4.5 inch lift systems (2 to 3 inches or rear lift)
- Adjustable rear loaded height, 2000lb capacity per bag at 100psi
- Includes 1/4" Airline, fittings and Schrader valves
- Supports up to 12" of travel
- Works on both diesel and gas engines
- Carli provides a Limited Lifetime Warranty
The Carli Suspension Long Travel Air Bag System for the Ford Excursion are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.
- Restores factory payload to Carli full progressive springs
- Works with Carli 4.5 inch lift systems (2 to 3 inches or rear lift)
- Adjustable rear loaded height, 2000lb capacity per bag at 100psi
- Includes 1/4" Airline, fittings and Schrader valves
- Supports up to 12" of travel
- Works on both diesel and gas engines
- Carli provides a Limited Lifetime Warranty
$1030
Low-Mount Steering Stabilizer
Excursion 2000-2005 Ford 4WD Low Mount Steering Stabilizer by Carli SuspensionRead More
This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts to tie-rod and included diff guard
- Corrects left tire pull, adjustable
- Combines with High-Mount for opposing stabilization
This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts to tie-rod and included diff guard
- Corrects left tire pull, adjustable
- Combines with High-Mount for opposing stabilization
$400
Vehicle Fitment
| Make | Ford |
|---|---|
| Model | Excursion |
| Year Fitment | 2005, 2004, 2003, 2002, 2001, 2000 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | Carli Suspension |
|---|---|
| Manufacturer Part Number | CS-FEXP25-6.0 / CS-FEXP25-7.3 |
| Item Number | car_cs-fexp25-6.0-7.3 |
| MPN(UPC) | 883584135951 |
| Product Line | Lift Kits |
| Lift Height | 4.5 inch |
