2.5" 2005-2007 Ford F250/F350 4wd Pintop System by Carli Suspension

Brand: Carli Suspension | SKU: CS-FLVL-PT25-05
From $4,245.00

2.5" 2005-2007 Ford F250/F350 4wd Pintop System by Carli Suspension

Brand: Carli Suspension | SKU: CS-FLVL-PT25-05
From $4,245.00
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-FLVL-PT25-05 2.5 inch Pintop lift system for the Ford F250 / F350 4wd models is a ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires (w/trimming). Using custom tuned King 2.5" Remote Reservoir Shocks this kit is perfect for Ford owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.

Featured in this lift kit system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with large shank.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however you can choose between the Carli progressive rate 2" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec. You can make your selection in the options section below.

Features & Benefits:

  • 2.5 inch front lift / 0 to 2 inch rear lift (optional rear lift)
  • Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Greatly improves ride quality
  • Optional Rear Add-a-Pack - Replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
  • Optional Rear Progressive Leaf Springs - Provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec
  • Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with large shank
  • Stainless steel braided extended front brake hoses
  • Front Travel = 9" / Rear Travel = 13"
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

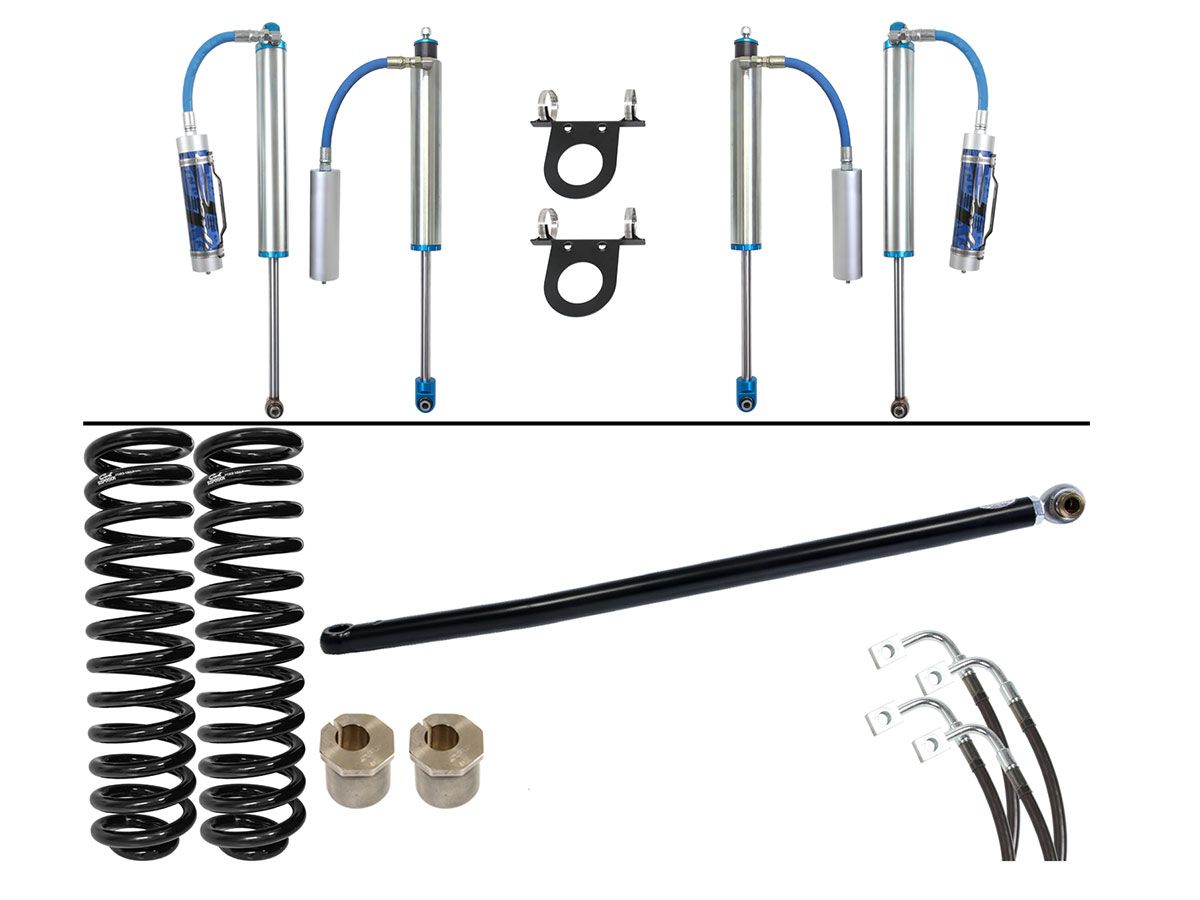

Components Included:

  • CS-FLC-05: Front Coil Springs
  • CS-FPT25SPKG-LVL-05: Carli tuned King 2.5 Remote Resi Shocks, Front and Rear
  • CS-FORDBBL-05: Front Brake Lines
  • CS-FCASTERSHIM-25: 2 degree Caster Shims
  • CS-FPRB-05: Adjustable Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Important Notes1. Recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspacing with factory arms
2. It is not advisable to use factory wheels with oversized tires, as this can lead to issues such as rubbing against the radius arm, sway bar, and, most importantly, the brake lines.
3. Add-a-Packs not recommended on F350 models due to poor ride quality.

Available Options

Low-Mount Steering Stabilizer
F250 / F350 2005-2022 Ford 4WD Low Mount Steering Stabilizer with Diff Guard by Carli Suspension

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
$725
Adjustable Radius Arms
F250 / F350 2005-2022 Ford 4WD (w/2.5"-3.5" of lift) Fabricated Radius Arm System by Carli Suspension

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes 12" Limit straps
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes 12" Limit straps
  • Carli provides a Limited Lifetime Warranty
$1630
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2007, 2006, 2005
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-FLVL-PT25-05
Item Numbercar_cs-flvl-pt25-05
MPN(UPC)883584150534
Product LineLift Kits
Lift Height2.5 inch
