3" 2023-2024 Ford F250/F350 4wd (w/Gas Engine) Pintop System by Carli Suspension

This Carli Suspension CS-FLVL-PT25-23-GAS 3 inch Pintop lift system for the Ford F250 / F350 4wd gas engine models is a ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires (w/trimming). Using custom tuned King 2.5" Remote Reservoir Shocks this kit is perfect for Ford owners wanting the best ride quality and off-roading performance. Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.

Featured in this lift kit system are 3 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

To maintain proper front-end caster and alignment, Carli has included heavy-duty radius arm drop brackets. These will adjust the angle of the radius arms by lowering the mounting points. Made from 1/4 inch steel construction these brackets are extremely strong. A black power finish looks great and protects from the elements.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits:

• 3 inch front lift / 0 to 1 inch rear lift (optional rear lift)
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Heavy-duty radius arm drop brackets maintain proper caster allowing for optimal alignment specs
• Greatly improves ride quality
• Optional Rear Add-a-Pack - Replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
• Optional Rear Progressive Leaf Springs - Provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Stainless steel braided extended front brake hoses
• Front Travel = 9" / Rear Travel = 13"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

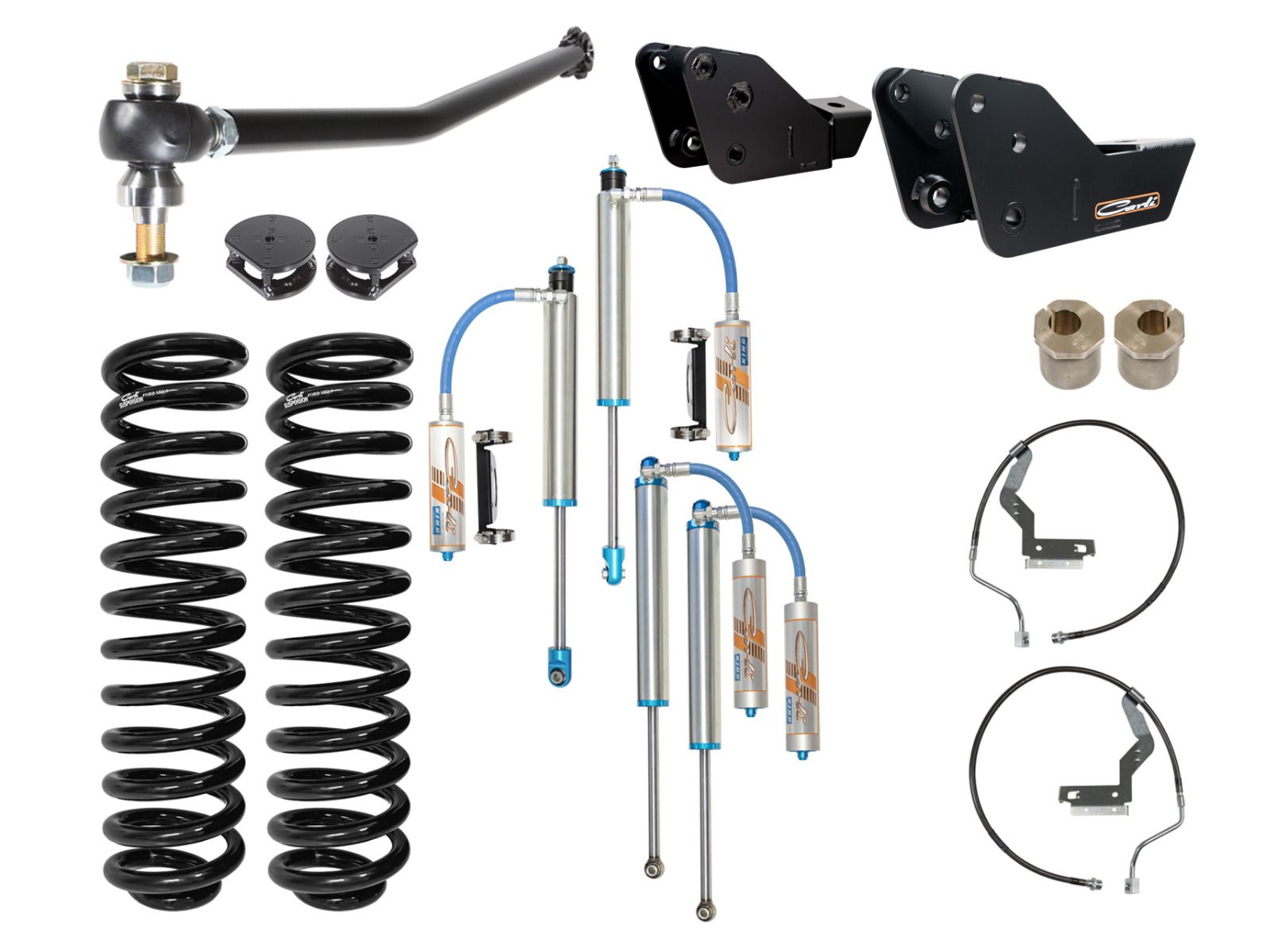

Components Included:

• CS-FLC-11-GAS: Front Coil Springs
• CS-FPT25SPKG-LVL-11-GAS: Carli tuned King 2.5 Remote Resi Shocks, Front and Rear, Resi Mounts
• CS-FORDBBL-LVL-17-F: Front Brake Lines
• CS-FCASTERSHIM-45: 1 degree Caster Shims
• CS-FBDF-25-17: High Clearance Front Bump Stops
• CS-FATB-17: Adjustable Track Bar
• CS-FRAD-LVL-23: Radius Arm Drop Brackets

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
