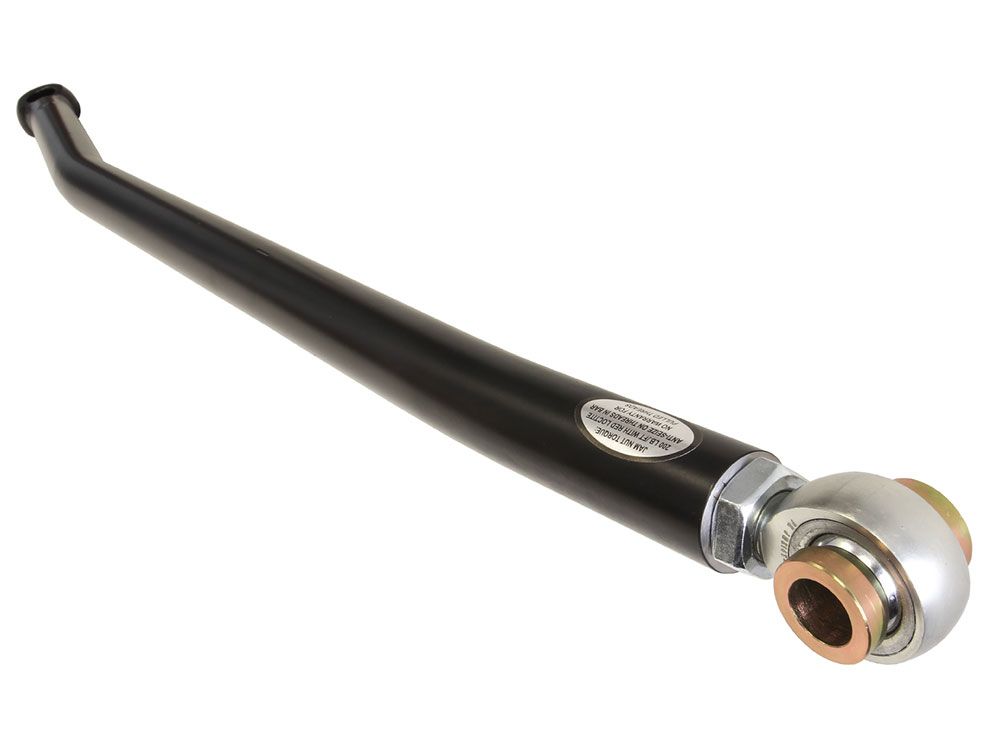

F250/F350 2005-2016 Ford 4WD (w/2.5-4.5" Front Lift) Adjustable Track Bar by Carli Suspension Brand: Carli Suspension | SKU: CS-FPRB-05
$420
- +
420

F250/F350 2005-2016 Ford 4WD (w/2.5-4.5" Front Lift) Adjustable Track Bar by Carli Suspension

Brand: Carli Suspension | SKU: CS-FPRB-05
$420.00

F250/F350 2005-2016 Ford 4WD (w/2.5-4.5" Front Lift) Adjustable Track Bar by Carli Suspension

Brand: Carli Suspension | SKU: CS-FPRB-05
$420.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Carli Suspension offers a Premium Adjustable Track Bar for your Ford F250 / F350. The CS-FPRB-05 track bar serves as both a suspension and steering component, making it vital for smooth handling and stability. Any deviations in the bar or wear in the bushings are immediately noticeable to the driver, leading to issues like excessive steering input, wandering, and the dreaded death wobble. To combat these problems, Carli Suspension has designed the Carli Adjustable Track Bar to be superior to the stock bar in every way. Their goal was to create a link that deflects less, dampens vibrations effectively, and ensures durability beyond what a factory unit can offer. Unlike the factory bar, our track bar is re-buildable, allowing for extended service life.

Thanks to its adjustability, the Carli Adjustable Track Bar can center the axle on leveled lifted up to 4.5 inches, even when lifted and carrying heavy loads. The construction of our DATB Track Bars is robust, featuring 3/8″ wall DOM construction, far stronger than the brackets to which they're bolted. This thickness allows the end of the bar to be threaded to accept their 1-1/4″ FK Bearing Chromoly Heim Joint with large shank. Unlike other manufacturers, who use thinner walls and smaller shank heims, the thicker wall bar provides increased strength and reduces potential points of failure.

Innovations continue with the Carli Adjustable Track Bar's joint design. Replaced is the standard Jam-Nut with a tapered version, ensuring perfect joint centering and offering 100% more friction surface area for improved clamping force and reliability. Furthermore, the frame end of the track bar has undergone significant improvements in the DATB generation. Carli's "CUB" joint incorporates a huge FK Bearing Uniball at its core, surrounded by custom molded bushings for added protection. This assembly is then pressed into the reinforced frame-end housing of the track bar, held securely in place by a Stainless safety washer and snap ring. Custom Misalignment spacers center the joint in the frame bracket, enabling smooth fore and aft movement of the track bar without bind or excessive bushing deflection.

Features & Benefits:

  • Adjustable Track Bar allows axle centering for models with 2.5" up to 4.5" of front lift
  • Keeps front axle centered on lifted applications
  • Heavy Duty 1.5" OD X 3/8 inch Wall DOM Construction
  • Tightens steering feel while extending service life
  • JAMMIT nut boast 100% more surface area than standard jam nut
  • Massive 1-1/4″ FK Bearing heat treated Chromoly Heim Joint
  • Includes steering stabilizer relocation bracket for great clearance
  • CUB frame joint combines with 7/8" FK Axle Heim to dampen vibration
  • Designed for the most extreme environment
  • Carli provides a Lifetime Advanced Replacement Warranty
Important Notes
  • ONLY for use on lifted trucks
  • This bar is not compatible with drop-pitman arms or aftermarket track bar drop brackets.
  • NOT to be used on stock height trucks, will not fit.
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005
    2WD/4WD4WD
    Tech Specs
    ManufacturerCarli Suspension
    Manufacturer Part NumberCS-FPRB-05
    Item Numbercar_cs-fprb-05
    MPN(UPC)883584135111
    Product LineTrack Bars
