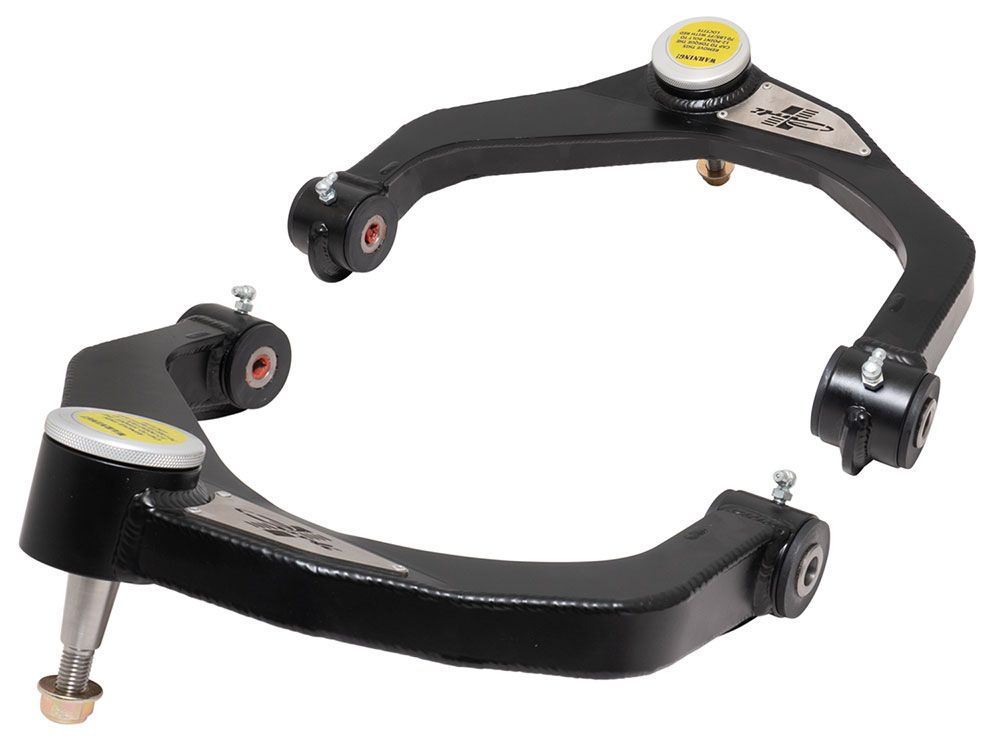

Ram 1500 2009-2024 Dodge 4WD (w/2.5" to 3" Suspension Lift) Boxed Upper Control Arms by Carli Suspension

Carli Suspension's CS-RAM15UCA-09 Upper Control Arm Kit for the Dodge Ram 1500 are designed for models lifted 2.5 to 3 inches in the front to correct front end geometry. Elevating the Commuter and Performance Suspension Systems to the next level, Carli's Upper Control Arms address leveled geometry issues while extending both travel capability and service life. Crafted from a strategic blend of 1/8-inch and 3/16-inch cold-rolled steel, these arms boast exceptional strength, surpassing the expectations of even the most discerning Carli customers. Furthermore, their sleek black powder coat finish not only enhances performance but also ensures a lasting, polished appearance.

Protected by a durable anodized aluminum cap, the 1-inch FK Uniball and the in-house machined 17-4 Stainless Uniball Pin work in harmony, allowing for 1-inch more misalignment (droop travel) compared to the restrictive factory ball joint. Additionally, the pivot point position has been modified to align with the geometry of the 2.5-inch Carli lift systems. At the frame end, serviceable Energy Suspension bushings and crush sleeves are employed to minimize vibrations and provide a secure, dependable mounting solution. Notably, both the uniball and bushings are replaceable, ensuring that these arms will be the last set you ever need to purchase. Designed to be used with a 2.5-inch front lift, we recommend pairing them with an 8.5-inch wide wheel featuring a 4.5-inch backspace, along with a 33-inch tire for optimal fitment and minimal trimming. While some customers opt for 4.5-inch to 4.75-inch backspace wheels with 35-inch tires, which may require additional trimming, it's strongly recommended to stick with the 4.5-inch backspace for the best results.

Features & Benefits:

• Correct front end geometry on lifted models (2.5 to 3 inches)
• 1” FK Uniball at the Knuckle with 17-4 Stainless Steel Uniball Pin
• Includes Energy Suspension bushings
• Box 0.120" wall mild steel construction
• Powercoated for durability
• Zerk fittings for ease of servicing
• Anodized Aluminum Uniball Cap
• Carli provides a Limited Lifetime Warranty
