1-2" 2023-2026 GMC Canyon AT4 / AT4X Leveling Kit by Cognito

Brand: Cognito Motorsports | SKU: 110-91242
$174.95


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The Cognito Motorsports 110-91242 Leveling Kit is designed to correct the factory nose-down rake on the 2023+ GMC Canyon AT4 / AT4X, delivering a more aggressive, leveled stance while maintaining factory ride quality. These mid-size trucks already offer generous factory suspension travel, and this kit is engineered to enhance ride height without sacrificing droop travel or component longevity.

From the factory, AT4 and models feature approximately 4.5 inches of droop travel, meaning ball joints, tie rods, and CV axles are far from their limits. Cognito takes advantage of this by combining a billet strut spacer with a preload ring spacer. The strut spacer increases overall shock length, while the preload ring converts a portion of droop travel into ride height, resulting in a total of 2 inches of front lift while maintaining nearly 4 inches of droop for stock-like ride quality.

For AT4X models, GM already increased front ride height by preloading the spring. These trucks feature approximately 3.5 inches of droop travel and Multimatic DSSV dampers. To preserve suspension performance and avoid further reducing droop, the preload rings are not used on these models. Instead, the included billet strut spacers provide 1 inch of additional front lift, resulting in a more level stance while retaining factory ride characteristics.

This system delivers a clean, cost-effective alternative to the OEM lift option and offers excellent value for owners wanting improved stance without compromising ride quality or suspension geometry.

Features & Benefits

  • Levels the factory nose-down rake for a more aggressive stance
  • Raises front 2" on AT4 models
  • Raises front 1" AT4X models
  • Maintains proper droop travel for optimal ride quality

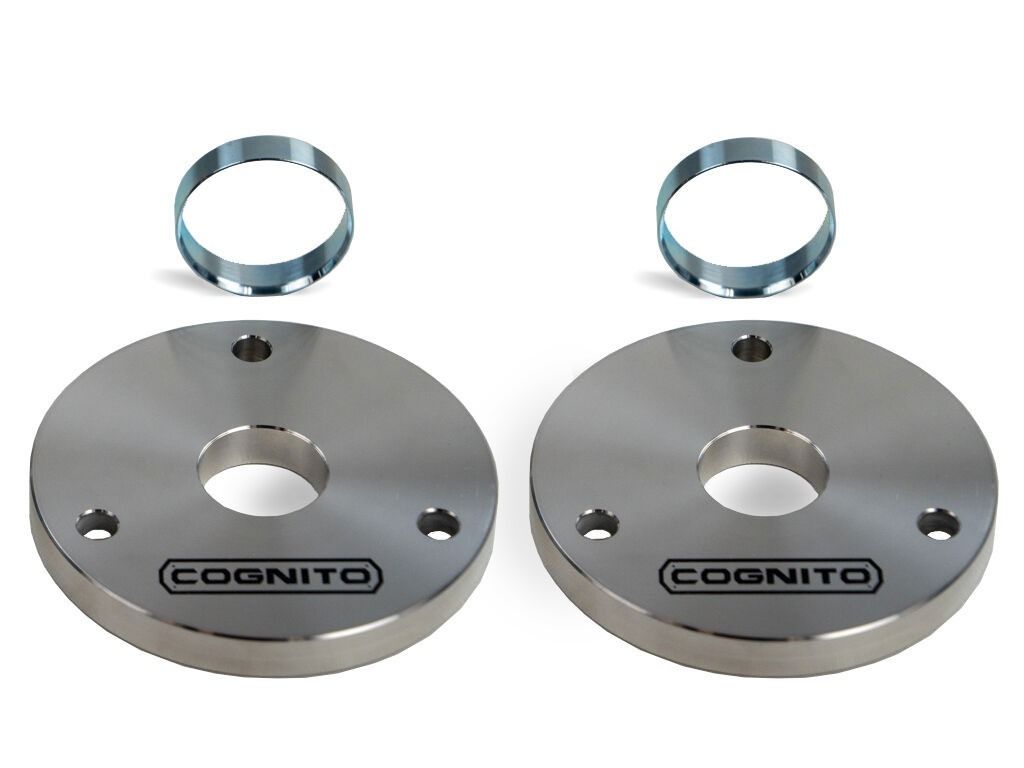

  • Billet aluminum strut spacers included
  • Preload ring spacers included (not used on AT4X)
  • Designed to retain factory suspension geometry and component longevity
  • Cost-effective alternative to OEM lift packages
Important NotesNOT COMPATIBLE WITH THE OEM LIFT KIT OPTION
Vehicle Fitment
MakeGMC
ModelCanyon
Year Fitment2026, 2025, 2024, 2023
2WD/4WD4WD
Tech Specs
ManufacturerCognito Motorsports
Manufacturer Part Number110-91242
Item Numbercog_110-91242
MPN(UPC)840461301779
Product LineLeveling Kits
Lift Height2 inch
