6" 1978-1993 Dodge Ramcharger/Trailduster 4WD Premium Lift Kit by Jack-It

Brand: Jack-It | SKU: DG109PR
$2,318.98


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This 6-inch premium lift kit for the Dodge Ramcharger and Plymouth Trailduster is a custom package that Jack-it has put together. Designed by our suspension experts, who have decades of experience (since 1994) selling, installing, and servicing suspension lift kits.  Using our expert knowledge, we have crafted more complete suspension lift kits using high-quality components from various top brands in the aftermarket suspension market.  This provides our valued customers a better and simplier experience.

These kits have been specifically designed for the exact year of your Ramcharger, with proper U-bolt sizes front and rear, all kits include Skyjacker softride front& rear leaf springs. All Ramchargers had rear lift blocks from the factory. These premium packages will eliminate the factory rear block, reducing axle wrap. All these options will, of course, include a front sway bar drop kit. Jack-it has included new spring eye, shackle bolts, and extended Stainless steel brake hoses to ensure you don’t over-stretch old brake hoses in an off-road situation.

Ramchargers have a non-adjustable drag link from the factory, making your steering wheel off-center after the vehicle is lifted and affecting the turning radius. The correct way to recenter your steering wheel and correct the turning radius is with an adjustable drag link, Jack-it includes the adjustable drag link and a raised steering arm to correct drag link angles.

Installation Notes

One issue is the front pinion angle if you lift your Ramcharger 4 inches or more. The way the factory sets the pinion angle in relation to the caster angle of your ball joints after you lift the Ramcharger, the pinion will no longer line up properly with the front drive shaft without causing your caster angle to be too far out of specifications. You can cut and re-weld your ball joint yokes on the front axle, or you can live with a slight front drive shaft vibration when at higher speeds in 4WD. If you have a 74-80 model Ramcharger with the NP203 transfer case with a full-time 4WD, we recommend converting it to a part-time 4WD setup. All these models have the smaller 5 on 4.5 lug bolt pattern. Factory part-time 4wd models all have 5 on 5.5 lug bolt patterns. All 1981 and new models should all be part-time 5 on 5.5-lug vehicles.

Last of all, most Ramchargers we've lifted 4 inches or taller work best if a CV-type rear drive shaft is installed to run smooth and not have any vibration out of the rear. The rear springs we send have a 4-degree shim attached to the spring. Depending on the year of the Ramcharger, you may have to swap to a different degree shim if you install a CV-style rear driveshaft for it to operate smoothly.

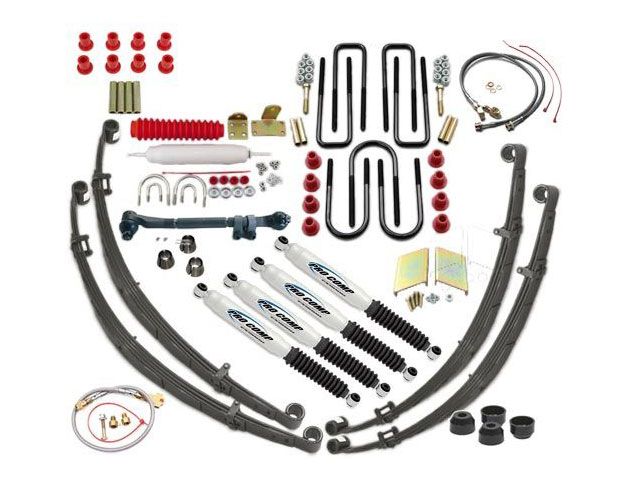

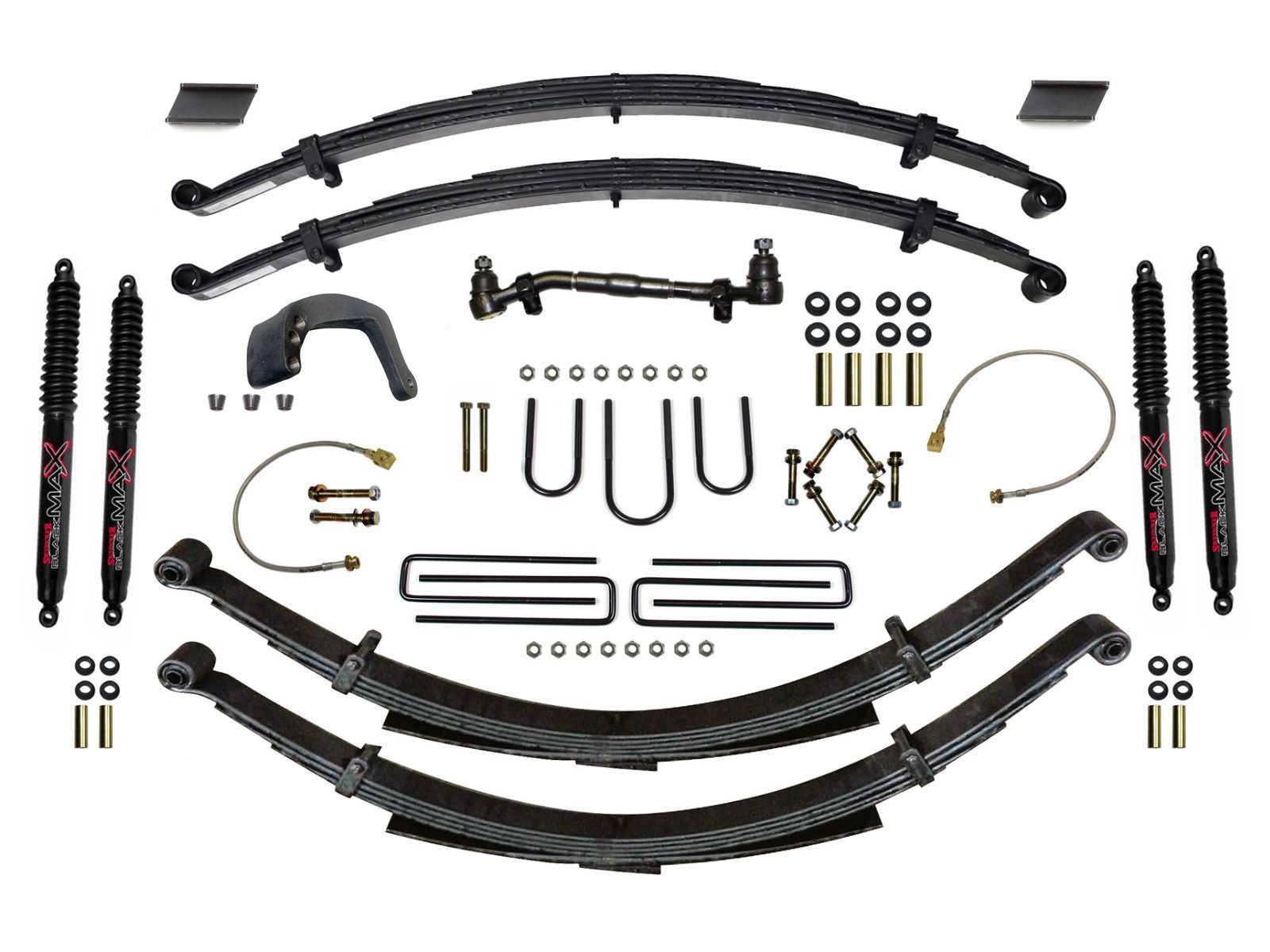

Premium Kit Includes:

  • Front and rear Soft Ride leaf springs
  • Raised steering arms
  • Front Sway bar drop brackets
  • Front and Rear spring eye and shackle bolts, nuts and washers
  • Front and rear BlackMax  shocks
  • Front and rear extended SS brake hoses
  • Adjustable drag link assembly
Important NotesDrive shaft will need to be lengthened. Possible drive line vibration when in 4WD. Possible front CV will bind, may need to grind for clearance
Vehicle Fitment
MakeDodge
ModelRamcharger
Year Fitment1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberDG109PR
Item NumberDG109PR
Product LineLift Kits
Lift Height6 inch
