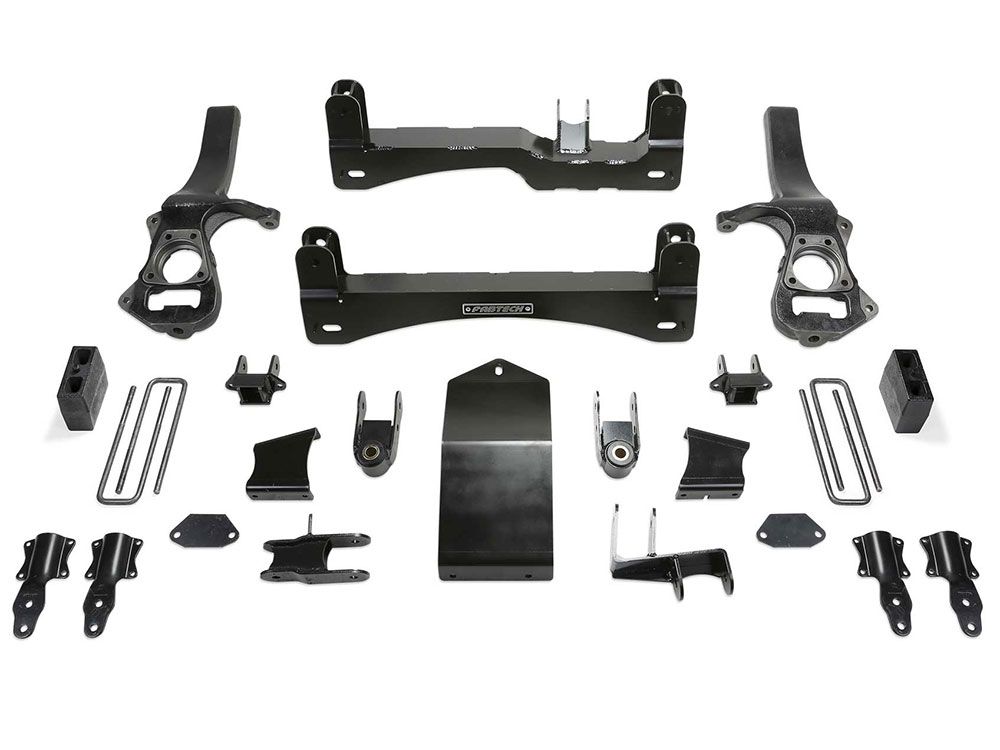

6" 2019-2022 GMC Denali 1500 4WD (w/ARC) Lift Kit by Fabtech

This Fabtech K1137 6 inch lift kit for the GMC Denali 1500 equipped with ARC (adaptive ride control) shock absorbers is a great upgrade that will allow for fitment of up to 35 inch diameter tires while give your truck a great new look.  Fabtech retains the ARC shocks in their 6” System for the Denali with heavy duty relocation brackets. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for quick easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.  The near stock track width was accomplished to keep oversized tires under the fenders for a clean appearance. Fabtech‘s proprietary steering knuckle geometry provides excellent lock to lock turning radius to help you maneuver in tight spots.

Rear lift is accomplished by removing the factory 2” block and replacing it with a 5” Block and u-bolt system.

Top Features and Benefits

• Allows use of up to 35 inch tires
• Retains the factory ARC shock absorbers
• Heavy Duty 1/4" Thick, High Arched Crossmembers
• Ductile Iron Steering Knuckles keep proper steering geometry
• Triple differential mounts repositioin the front diff for proper driveshaft angle
• Rear blocks and ubolt kit

Recommended Tire Fitment:

• 35/1250R18 tire w/ 18x9 wheels w/ 5 inch BS w/ minor trimming
• 295/70R18 tire w/ 18x9 wheels w/ 5 inch BS w/ minor trimming
• 35/1250R20 tire w/ 20x9 wheels w/ 5 inch BS w/ minor trimming
• 295/65/R20 tires w/ 20x9 wheels w/ 5 inch BS w/ minor trimming
