2" 2020 Jeep Gladiator Mojave 4WD Trail Lift Kit by Fabtech

Special Price $1,768.80 Regular Price $2,211.00

Brand: Fabtech | SKU: K4185



free shipping truck  FREE SHIPPING !!
on orders +$99, exclusions apply

- +
paypal
expert
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
icon
icon
icon
icon
icon
icon
Product Overview
More Information
Description

Fabtech's K4185 Gladiator Mojave lift kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. The Mojave lift kit has been tuned with proper dual rate coil springs to work in conjunction with the Fox 2.5 Internal bypass shocks for a superior ride quality.

The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint® for longevity and a quiet ride.

Fabtech’s dual rate coil springs are corner specific to the Gladiator. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.

Jeep Mojave suspension comes out of the factory equipte with Fox 2.5 Internal Bypass shocks. This Fabtech lift kit retains those shocks with heavy duty extension brackets that are designed for rugged offroad use. The Fox hydraulic bump stops are also retained and the bump stop pads are relocated to work in conjunction with the new ride height for proper suspension travel operation.

To address the steering geometry with the increased ride height, a Draglink Flip kit along with a heavy duty Track Bar bracket is included. This relocates the Gladiator Mojave steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.

The rear Gladiator suspension receives a heavy duty Track Bar bracket to center the axle under the vehicle with the new ride height and help retain the factory roll center of the vehicle with this kit.

This quality short arm suspension for the Jeep Gladiator Mojave is an excellent choice for owners that want to utilize the factory Fox shocks but want to run a bigger tire for maximum offroad capabilities.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system.

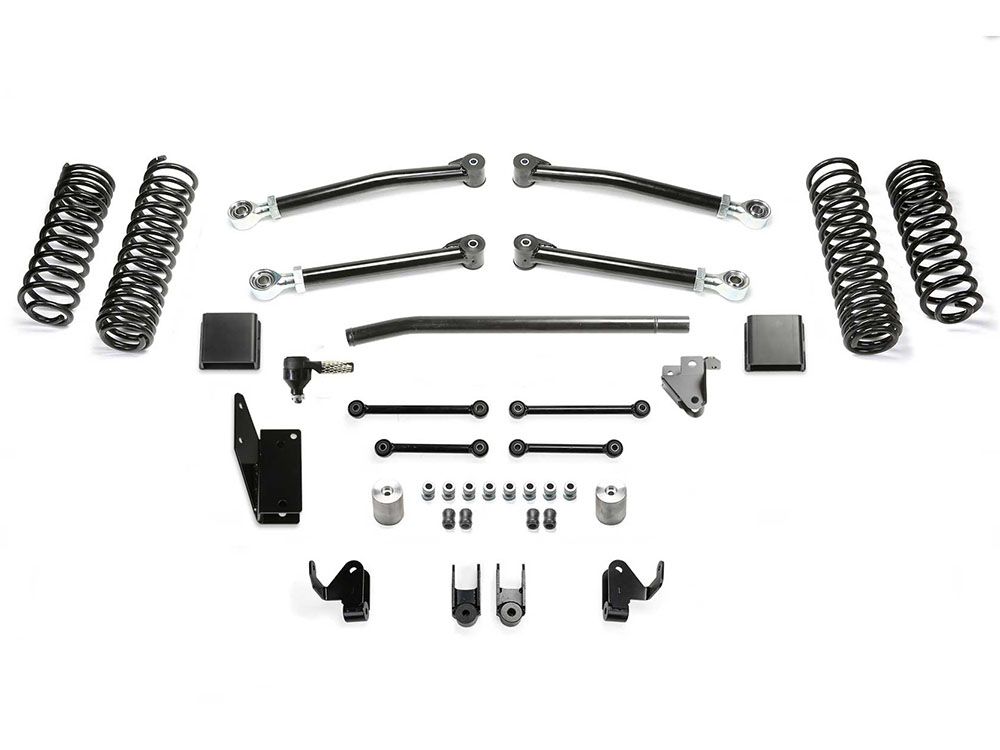

WHAT’S INCLUDED:

  • Front 1.75" OD .250 wall link arms
  • Rear 2.0 OD .313 wall link arms
  • Front & Rear Dual rate coil springs
  • Fox shock extension mounts (maintains factory Fox shocks)
  • Draglink flip kit
  • Front & Rear Track bar bracket
  • Front & Rear Sway bar links
  • Free 5 year 60,000 mile powertrain warranty
Important Notes

Only fits Jeep Gladiator Mojave Editions

Manufacturer Fabtech
Manufacturer Part Number K4185
Item Number fab_K4185
Make Jeep
Model Gladiator Mojave
Year Spans 2020
Lift Height 2 inch
2WD/4WD 4WD
MPN(UPC) 674866111622
Product Type Suspension Lift Kit
