5-6" 1986-1998 Ford F350 Solid Axle 4WD Value Lift Kit by Jack-It

Brand: Jack-It | SKU: FD406SD
As low as $1,911.05

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This value 5 inch to 6 inch lift kit for the Ford F-350 4wd truck is a special complete package that Jack-It has put together. Featuring front Softride leaf springs that are shot peening for strength, tapered for better flex and use 'bolt' style spring clips to eliminate friction.  Other components include a drop pitman arm to correct steering angles, extended stainless steel brake hoses and extended sway bar endlinks to eliminate the sway bar from binding.  A track bar relocation bracket keeps the fron axle centered.  Polyurethane bushing are used to replace old worn shackle, track bar and leaf springs bushings.  The rear is lifted with axle blocks that replace the factory blocks along with add-a-leafs that are added to the factory rear springs.

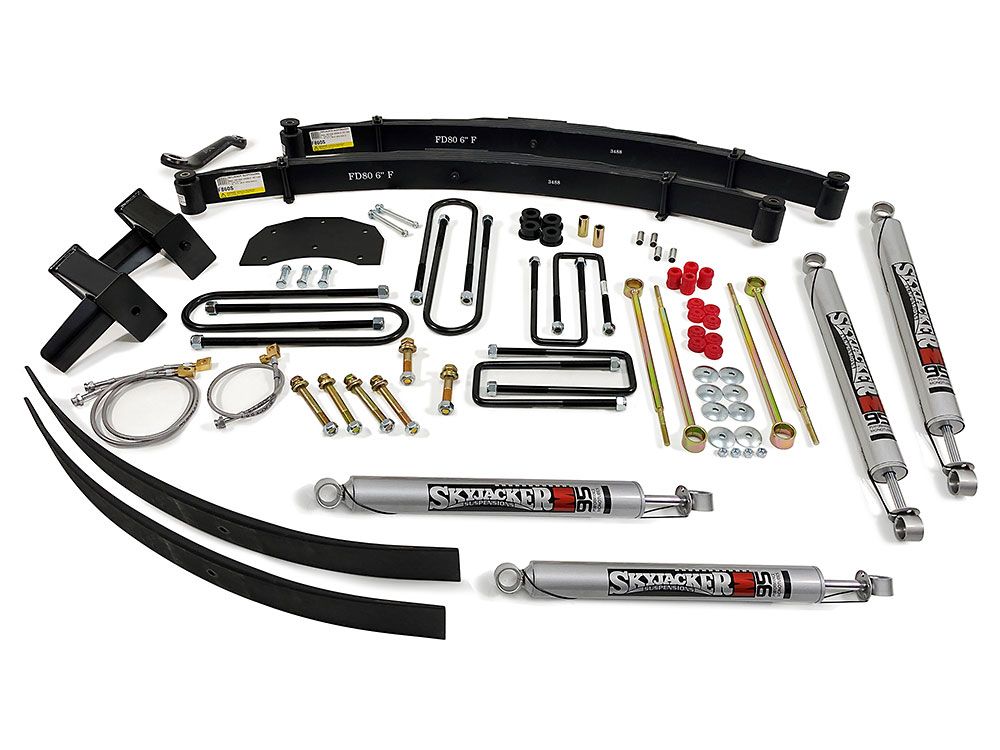

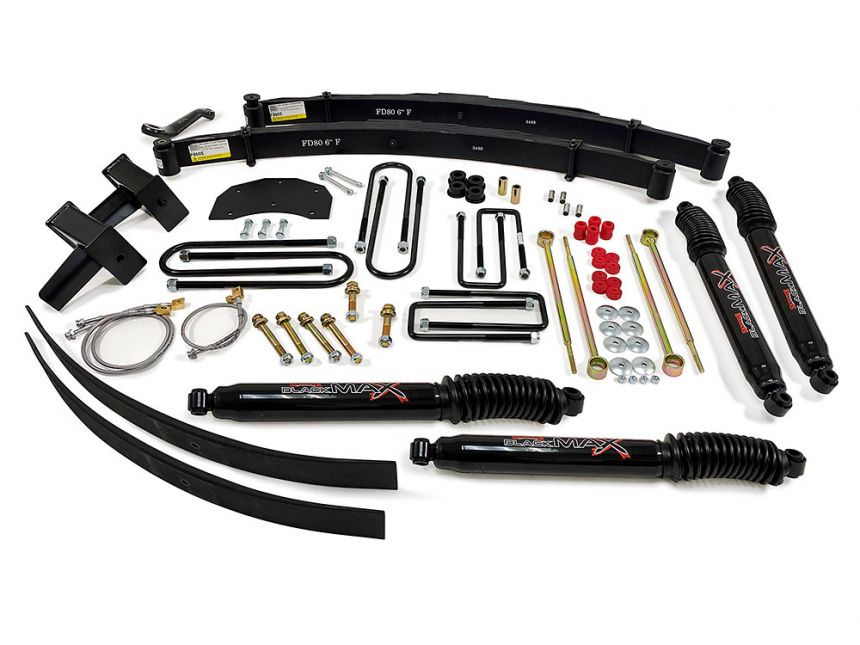

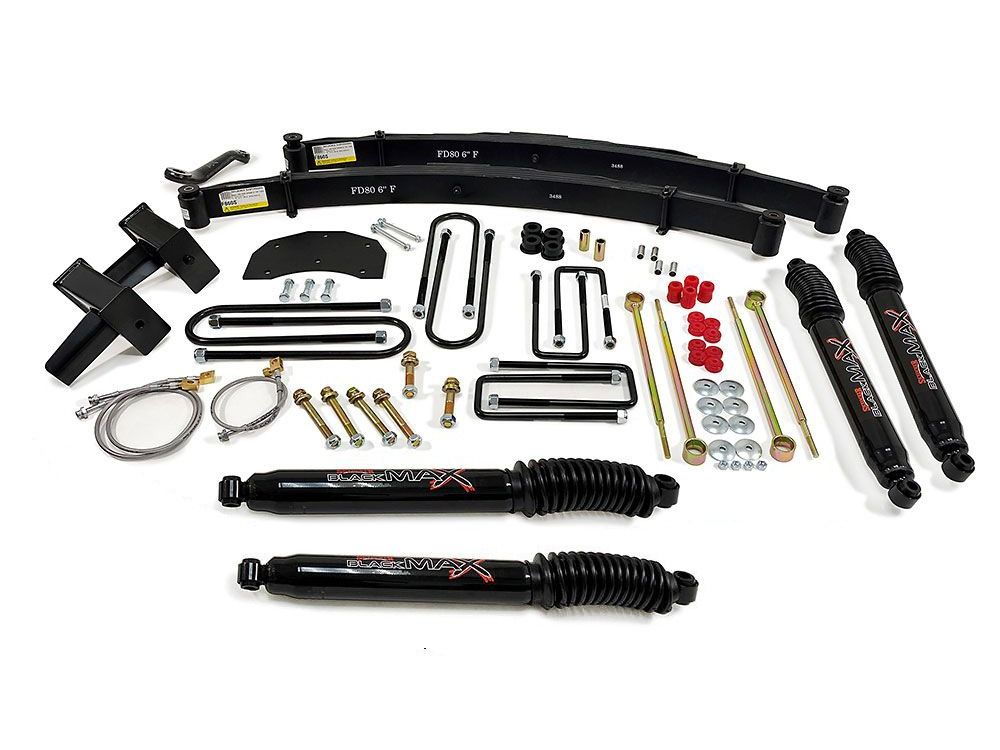

Value Package includes

  • Front Skyjacker Softride Leaf Springs
  • Poly Shackle Bushings
  • Rear 6 inch blocks (replaces factory blocks)
  • Track Bar Bushings
  • Front Spring Eye and Shackle Bolt Kits
  • Skyjacker BlackMax (hydraulic) or M95 (monotube gas) Shocks
  • Drop Pitman Arm
  • Front and Rear Stainless Steel Braided Brake Lines
  • Front and Rear Sway Bar Extended End Links
  • Polyurethane Spring Bushings
  • Front and Rear E-Coated U-Bolts
  • Track Bar Relocation Kit

Jack-it Pro Tips and Advice

The Jack-it Difference: Since 1994 we have specialized in lifted trucks and know how important it is to get all the parts required to do the job right. In our custom packages we only use top quality components and our kits feature extra parts not found in a standard lift kit (spring eye bolts, shackle poly bushings, stainless steel braided brakes hoses and more).  This results in a more compete lift kit that in most cases installs easier and performs better.

Product Highlights

Stainless Brake Lines
This kit uses stainless steel braided brakes lines to replace worn factory rubber hoses. Providing superior protection from salt, rust and other road debris.

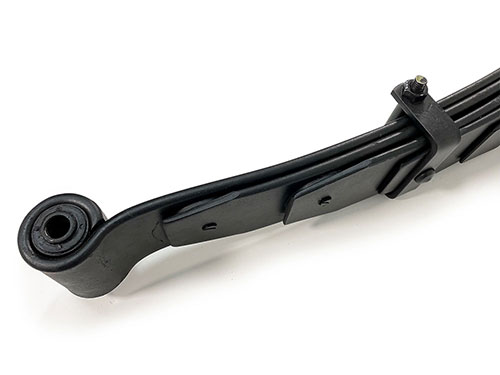

Tapered Leafs & Bolt Clamps
The included leaf springs feature tapered leafs that provide better spring flex along with bolt style spring clamps that eliminate friction found in bend style clamps.

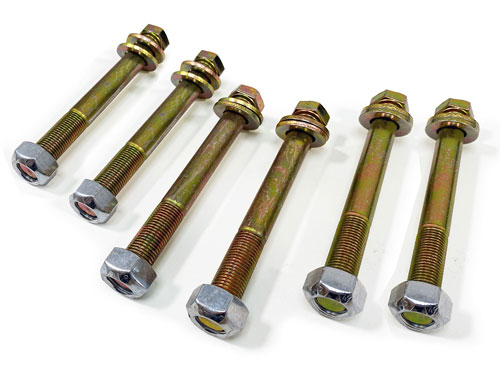

Leaf Spring & Shackle Bolts
This kit includes leaf spring and shackle eye bolts that replace old worn rusty bolts. These bolts are fine thread, grade 8, the nuts are serrated self locking nuts, and the kits also include 2 flat washers per bolt
Vehicle Fitment
MakeFord
ModelF350
Year Fitment1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberFD406SD
Item NumberFD406SD
Product LineLift Kits
Lift Height6 inch
