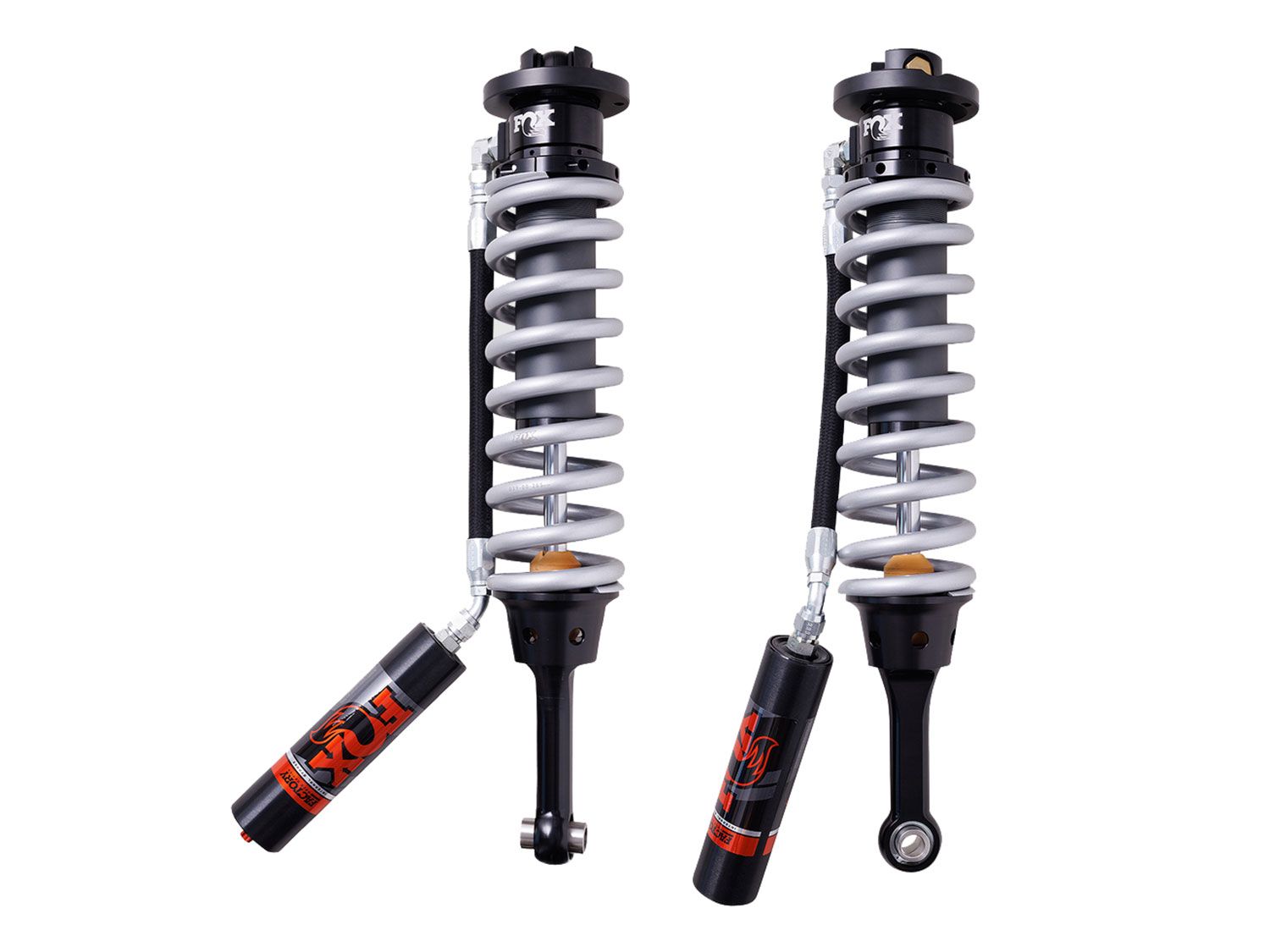

F150 Raptor 2010-2014 Ford - Fox Factory Race Series 3.0 Internal Bypass Coil-Over Kit (2" Front Lift)

The FOX Factory Race Series 3.0 Coil-over Internal Bypass shocks represent the pinnacle of off-road suspension performance. They are engineered with race-proven technology and built to handle the most extreme terrain. Designed to maximize wheel travel, these position-sensitive shocks increase oil capacity and offer 60% more damping area than stock FOX SVT shocks, delivering unmatched control and comfort both on and off the trail.

Built with heavy-duty steel bodies and anodized billet aluminum components, these shocks are packed with race-bred internals, including Eibach® springs, PTFE-lined spherical bearings, proprietary high-performance oil, and high-temp Viton® seals. The preload-adjustable coil spring comes pre-set to level your vehicle, making installation simple with a direct bolt-on fit to factory mounts. Large 2.5-inch remote reservoirs with oversized -10 hoses boost cooling capabilities for consistent damping performance in harsh conditions. Whether you're cruising over desert terrain or pushing the limits of your build, the Factory Race Series 3.0 shocks deliver plush ride quality with the ability to ramp up damping for serious off-road use.

Features & Benefits:

• 3.0 Factory Race Series Coil-over Internal Bypass shocks with position-sensitive damping
• Provides 2 inch front lift
• Increases oil capacity and delivers 60% more damping area over stock FOX SVT shocks
• Provides plush, predictable ride quality with the ability to ramp up damping for extreme use
• Heavy-duty steel shock bodies with anodized billet aluminum components
• Preload-adjustable Eibach® coil springs are pre-set to level the vehicle
• Direct bolt-on fit to factory mounts for easy installation
• 7/8" 17-4 H900 stainless steel hard-chrome plated shaft used
• 2.5-inch remote reservoirs with large -10 hoses enhance cooling performance
• Race-proven internals including stainless steel shafts, PTFE-lined spherical bearings, proprietary racing oil, and high-temp Viton® seals
• Sold as a Pair

Coilover Specs:

• Extended Length: 27.97 inches
• Compressed Length: 20.44 inches
• Travel: 7.53 inches
• Top Mount: TM
• Bottom Mount: Eyelet
