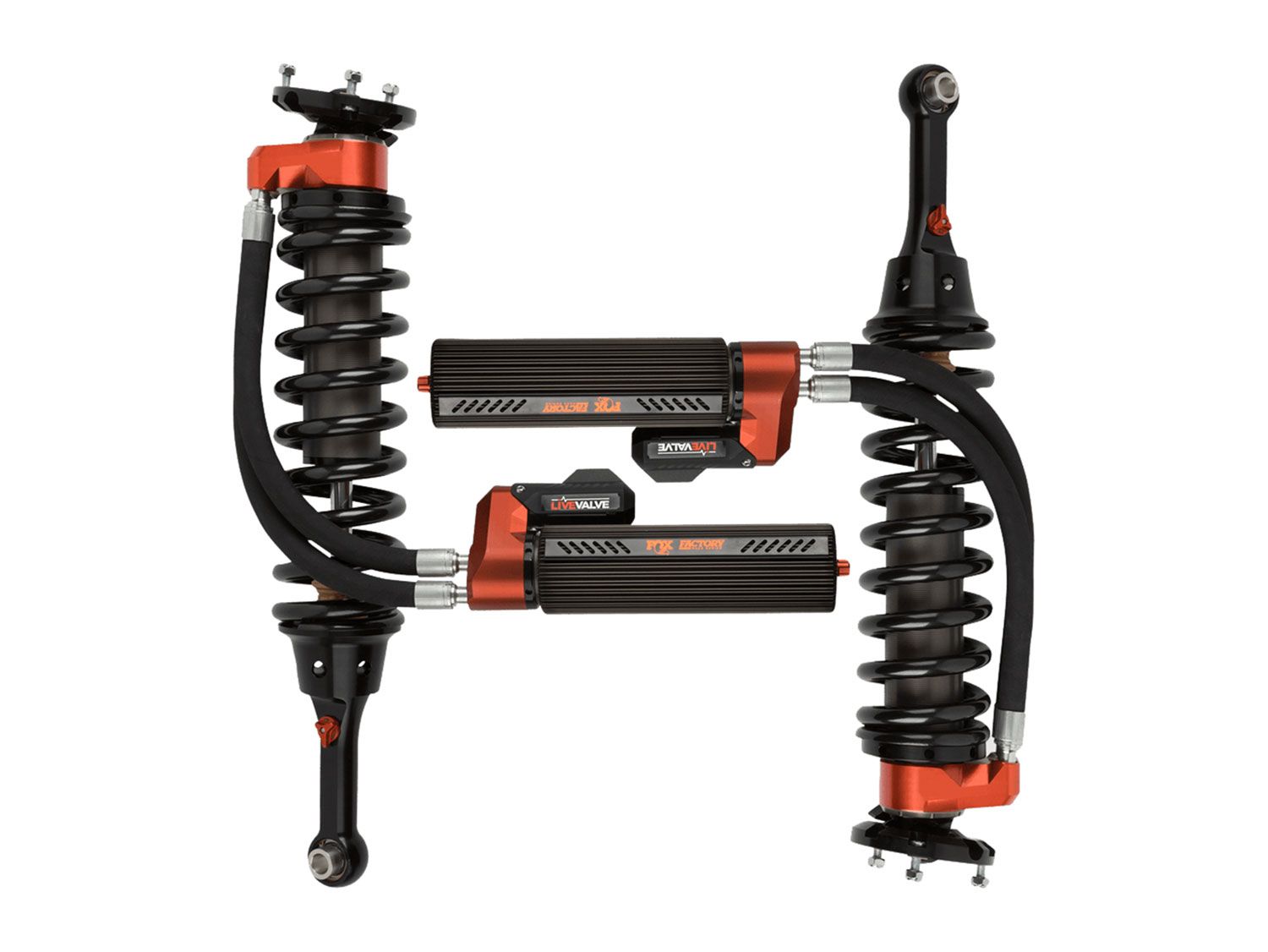

F150 Raptor 2019-2020 Ford - Fox Factory Race Series Adjustable 3.0 Live Valve Internal Bypass Coil-over Kit (2" Front Lift)

The FOX 883-06-153 Factory Race Series 3.0 Live Valve Internal Bypass Coilover is the pinnacle of adaptive off-road suspension for the 2019–2020 Ford F-150 Raptor. Designed to integrate seamlessly with factory electronics, this bolt-on system uses advanced vehicle sensors and accelerometers to deliver real-time damping adjustments through FOX’s Live Valve semi-active technology. Whether navigating city streets or tearing through desert terrain, the system adapts instantly to maximize comfort, handling, and bottom-out resistance.

Built with race-proven components, these shocks feature a 3.0" hard-anodized aluminum body for superior cooling, along with a 7/8" stainless steel shaft and high-flow race piston for unmatched durability. Three-position Quick Switch Technology (QS3) offers easy tuning between On-Road Comfort, On-Road Performance, and Off-Road Performance. Internal Bypass damping ensures plush ride quality during light driving and ramps up for aggressive hits. The large external reservoir and integrated cooling fins manage heat effectively under prolonged stress, maintaining consistent shock performance. Pre-set to level the Raptor from the factory, this coilover system also allows for ride height adjustments to suit your build. Whether you're chasing speed across the desert or seeking refined control on pavement, FOX’s 3.0 Live Valve Internal Bypass Coilover delivers unmatched capability and control.

Features & Benefits:

• 3.0" hard-anodized aluminum shock body for superior cooling and durability
• Provides 2-inch front lift
• FOX Live Valve semi-active technology with plug-and-play integration to factory electronics
• Adapts in real-time using vehicle sensors and accelerometers for optimal ride control
• Quick Switch Technology (QS3) allows easy tuning for On-Road Comfort, On-Road Performance, and Off-Road Performance
• Position-sensitive Internal Bypass damping delivers plush ride quality and ramps up for aggressive off-road hits
• Large external reservoir with integrated cooling fins maintains consistent shock performance under extreme conditions
• 7/8" stainless steel shock shaft and high-flow race piston for enhanced strength and responsiveness
• Factory pre-set ride height with optional adjustability to fine-tune stance and clearance
• Designed specifically for the 2019–2020 Ford F-150 Raptor with direct bolt-on installation

Coilover Specs:

• Extended Length: 28.49 inches
• Compressed Length: 20.60 inches
• Travel: 7.89 inches
• Front Lift Height: 2"
• Top Mount: OEM
• Bottom Mount: Eyelet
