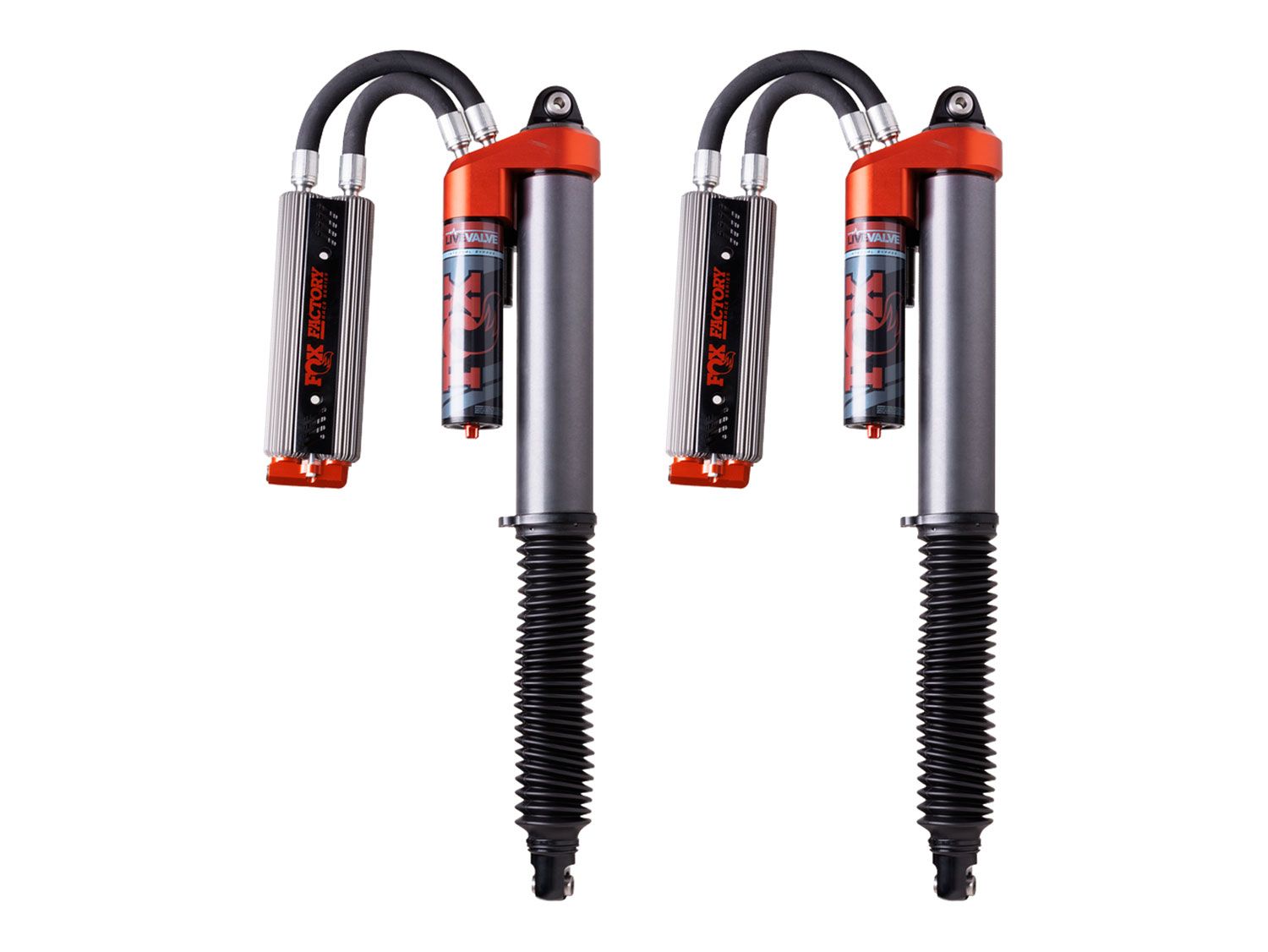

F150 Raptor 2021-2026 Ford (w/0-1" rear lift) - Fox Factory Race Series 3.2 Live Valve Internal Bypass Shocks (REAR)

Brand: Fox | SKU: 883-06-183
$4,199.95


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Experience next-level suspension performance with the FOX 883-06-183 Factory Race Series 3.2 Live Valve Internal Bypass shocks for the 3rd generation Ford F-150 Raptor. Designed as a bolt-on solution, these race-inspired shocks feature plug-and-play integration with the truck’s factory electronics, providing semi-active adjustment and position-sensitive damping control tailored to the terrain and driving inputs.

Built with FOX’s patented Internal Bypass technology, the 3.2 shocks offer multiple zones of damping that deliver a smooth, controlled ride across rough terrain. As the shock travels through compression or rebound, fluid is routed through bleed holes in the ride zone for comfort, while increased pressure zones activate outside the ride zone to manage extreme impacts. The result is a plush, predictable ride with enhanced support during hard landings and aggressive driving. External finned recirculating reservoirs enhance cooling by continuously cycling fluid between the shock body and reservoir using a checked piston. Durable 3.2-inch aluminum bodies feature Type II anodization for corrosion resistance and higher pressure capacity. Fine-tune your suspension on the fly with 3-way Quick Switch (QS3) adjusters mounted on the eyelets, giving you control over rebound and compression settings.

Whether you're carving high-speed desert trails or navigating unpredictable off-road terrain, the FOX 3.2 Live Valve shock absorbers provide the precision, strength, and confidence needed to push your Raptor to its limits.

Features & Benefits:

  • 3.2-inch aluminum shock bodies with Type II anodization for durability and corrosion resistance
  • Patented Internal Bypass technology delivers position-sensitive damping with multiple control zones
  • Live Valve semi-active system integrates with factory electronics for real-time damping adjustment
  • Recirculating Reservoirs maintain cool temperatures and consistent shock performance
  • 3-way Quick Switch (QS3) adjusters allow fine-tuning for on-road comfort, performance, or off-road use
  • Progressive damping prevents hard bottom-outs and top-outs while improving landing control
  • Direct bolt-on installation for 3rd-gen Ford F-150 Raptor
  • Race-proven technology designed for high-speed off-road terrain and everyday driving

Coilover Specs:

  • Extended Length: 32.25 inches
  • Compressed Length: 19.99 inches
  • Travel: 12.26 inches
  • Fits with 0-1" rear lift
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
Important Notes
  • Does not fit Dual Valve Equipped Trucks
  • Vehicle Fitment
    MakeFord
    ModelF150 Raptor
    Year Fitment2026, 2025, 2024, 2023, 2022, 2021
    2WD/4WD4WD
    Tech Specs
    ManufacturerFox
    Manufacturer Part Number883-06-183
    Item Numberfox_883-06-183
    Product LineShock Absorbers
    Shock SeriesFox 3.0 Factory Race Series
    Front/RearRear
