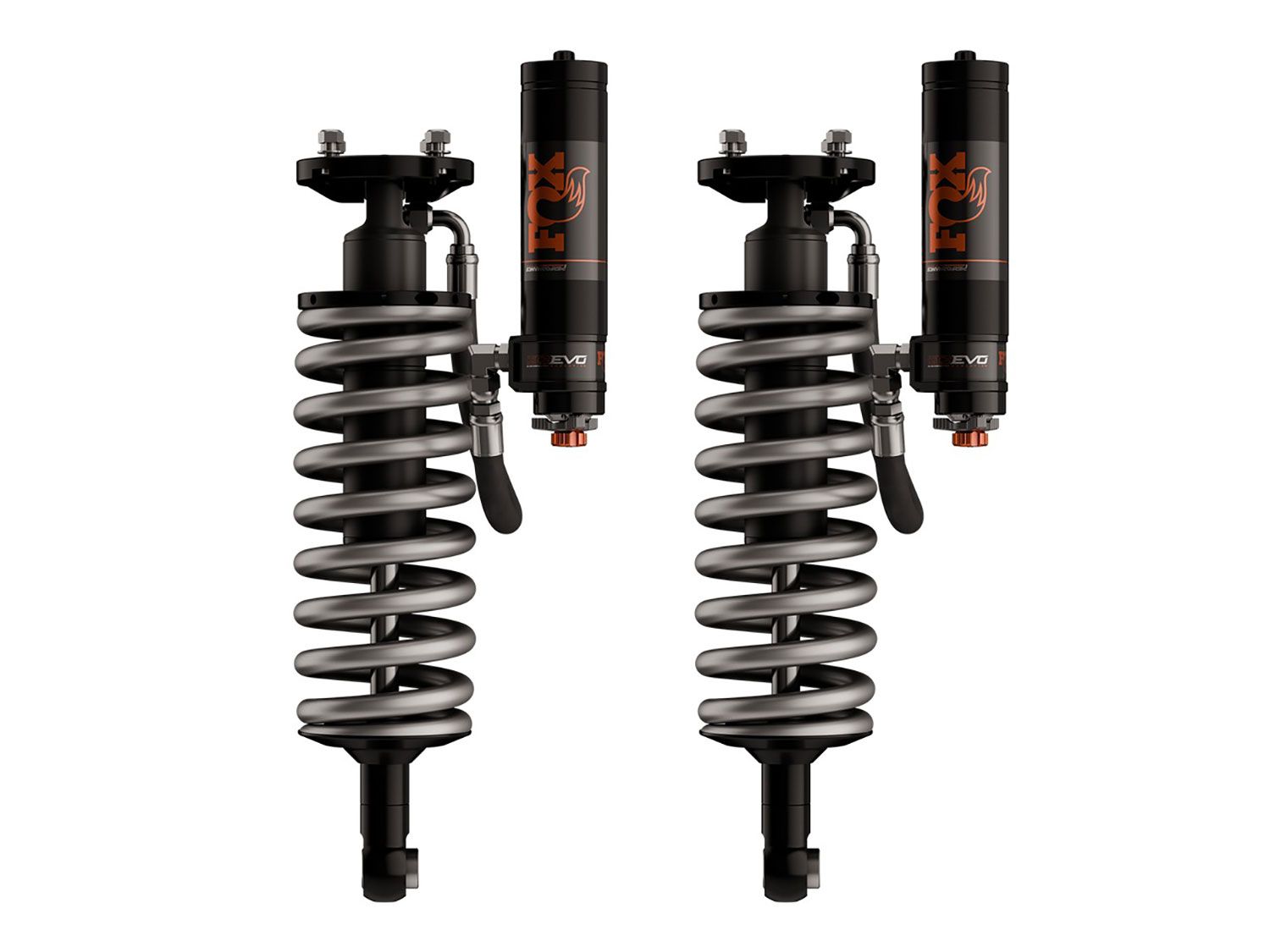

Sequoia 2023-2026 Toyota - Fox 2.5 Performance Elite Series Coil-Over Kit (2-5" Front Lift)

883-06-234 FOX Performance Elite Series 2.5 Front Shock with DSC EVO is engineered to enhance suspension performance for Toyota Sequoia platforms. Designed to eliminate factory forward rake while improving articulation, this premium suspension upgrade delivers a level ride height and significantly increased off-road capability while maintaining refined on-road comfort.

Built with a 2.5-inch impact-extruded and CNC-machined 6061-T6 aluminum body, the shock features a durable Type III hard-anodized coating that resists corrosion and wear in harsh environments. An external reservoir increases oil capacity and helps reduce heat buildup, minimizing harshness caused by nitrogen pressure ramp-up during demanding off-road driving.

The integrated Dual Speed Compression Evolution (DSC EVO) adjuster allows independent tuning of high-speed and low-speed compression damping. Using Variable Valve Control (VVC) technology, the high-speed circuit can be adjusted without adding preload to the shim stack, allowing drivers to increase resistance for large impacts without sacrificing small-bump sensitivity. With vehicle-specific tuning and robust construction, the 883-06-234 delivers versatile performance for both trail and daily driving conditions.

Features and Benefits:

• 883-06-234 FOX Performance Elite Series 2.5 Front Shock for Toyota Sequoia
• 2.5" impact-extruded and CNC-machined 6061-T6 aluminum shock body
• Type III hard-anodized finish for maximum corrosion and wear resistance
• External reservoir increases oil capacity and improves heat management
• Dual Speed Compression Evolution (DSC EVO) adjuster for precise damping control
• Variable Valve Control (VVC) allows high-speed compression adjustment without sacrificing small-bump sensitivity
• Vehicle-specific tuning optimized for performance and ride quality
• 7/8" hard chrome steel shaft for increased strength and durability
• Redundant sealing pack with main seal, wiper seal, and scraper seal
• OEM top mount with eyelet bottom mount
• Travel: 5.37"
• Extended Length: 21.68"
• Compressed Length: 16.31"
• Series: Performance Elite
