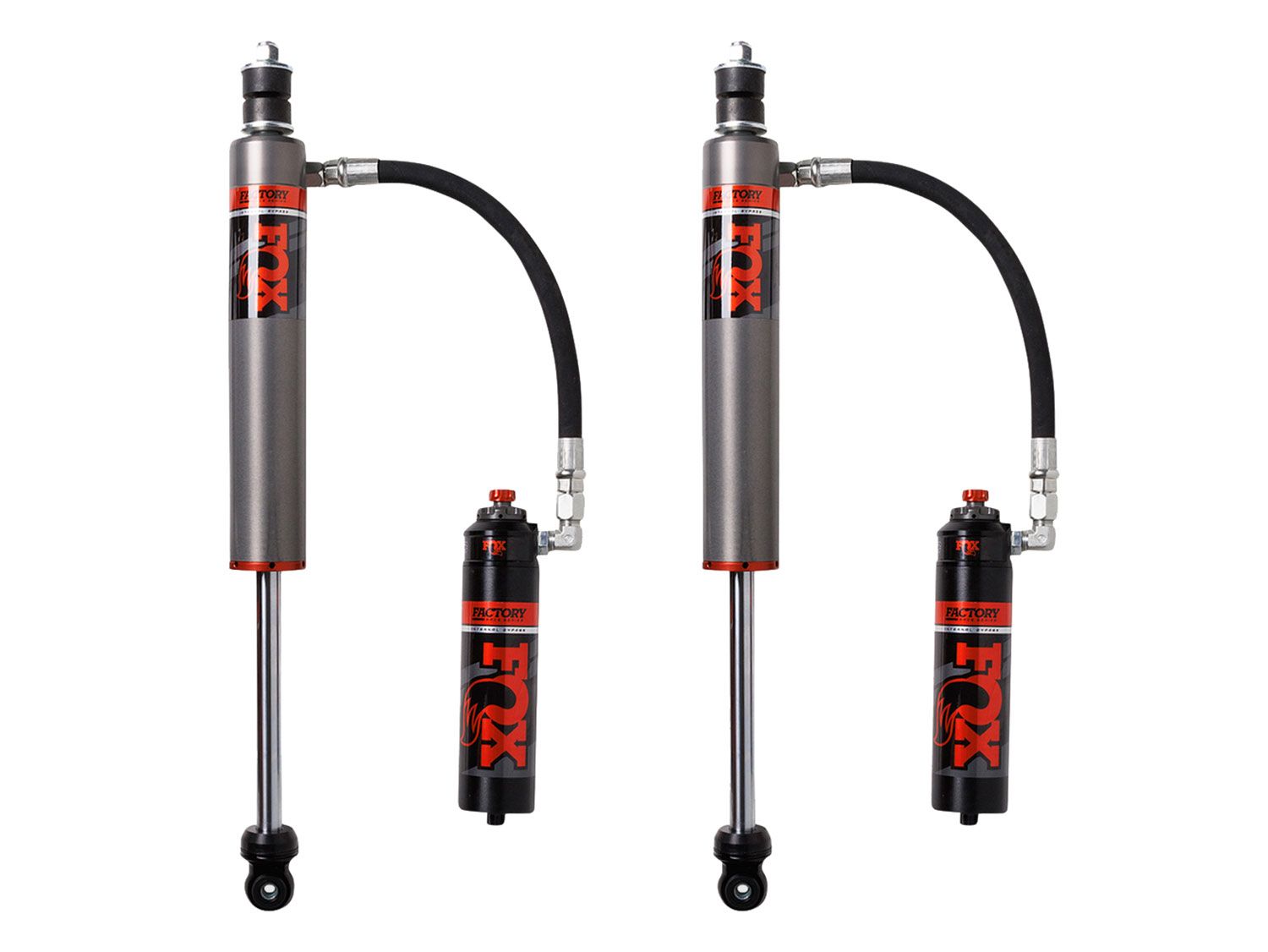

Tacoma 2005-2023 Toyota (w/2-3" lift) - Fox 2.5 Factory Race Series Shocks (REAR Pair)

FOX Factory Race Series 883-26-124 2.5 Internal Bypass shocks for the Toyota Tacoma offer the ultimate in bolt-on suspension performance. Designed with position- and velocity-sensitive damping, these shocks feature FOX’s patented Internal Bypass technology for superior control across rugged terrain. The result is a smoother, more confident ride with progressive damping zones that effectively manage bottom-outs, top-outs, and landings.

Engineered for serious off-roaders, these shocks utilize Type III anodized 2.5-inch aluminum bodies for exceptional heat dissipation and corrosion resistance. The Dual Speed Compression (DSC) adjuster lets you fine-tune performance based on driving conditions, while external reservoirs house internal floating pistons (IFP) to keep oil and nitrogen separate, ensuring consistent damping even under extreme use. Whether you’re crawling over rocks or charging through desert terrain, FOX Factory Race Series shocks deliver the high-speed support and ride quality your Tacoma needs to dominate any environment.

DSC Adjusters

Each reservoir is equipped with a Dual Speed Compression (DSC) adjuster, which allows you to dial in high-speed and low-speed compression settings. With the DSC adjusters, you can swiftly tailor your shocks to suit different loads, environmental conditions, and your preferred driving style. Adjustments are made simply by turning the low or high-speed dials to your desired settings (10 low-speed settings, 12 high-speed settings). Meanwhile, the high-flow piston ensures stability across various terrains. FOX shocks are meticulously engineered to accommodate various activities, allowing you to unlock your truck's full potential on your next adventure.

Top Features & Benefits

• Patented Internal Bypass technology provides multiple zones of damping for improved ride control
• 2.5" Type III anodized aluminum shock bodies resist corrosion and wear
• Dual Speed Compression (DSC) adjusters allow fine-tuning for load, terrain, and driving style
• Progressive damping increases control through rough terrain and prevents hard bottom-outs
• External reservoirs increase oil capacity and regulate heat with internal floating piston (IFP)
• Bolt-on installation designed specifically for Toyota 4Runner
• Delivers a smooth, confident ride with enhanced high-speed off-road capability
• Note: Sold as a pair

Shock Specs

• Extended Length: 24.90"
• Compressed Length: 15.35"
• Travel Length: 9.55"
• Top Mount: Stem Top
• Bottom Mount: Eyelet
