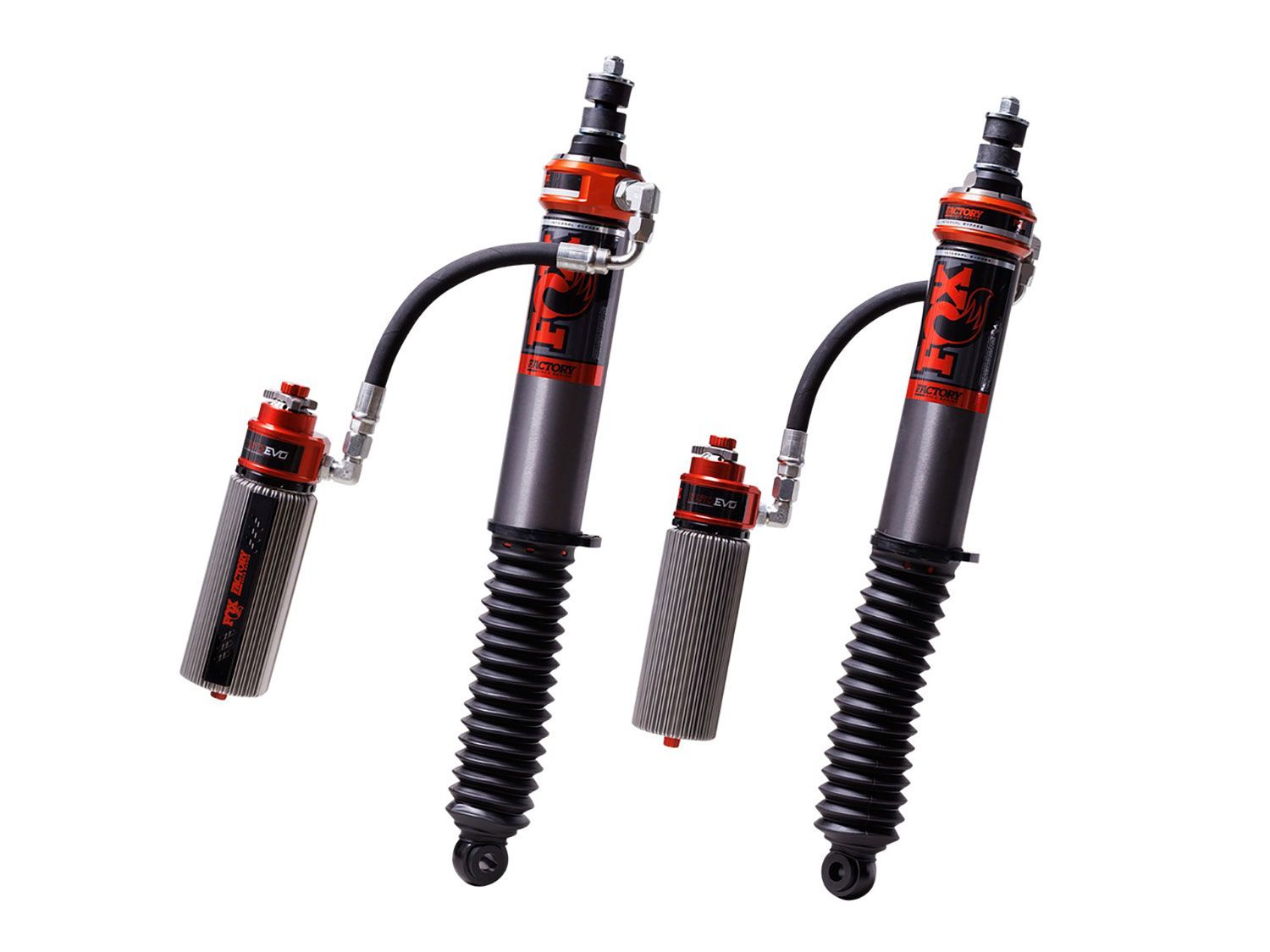

Land Cruiser 250 Series 2024-2026 Toyota (w/0-1.5" rear lift) - Fox Factory Race Series 3.2 Internal Bypass Shocks (REAR PAIR)

883-26-169 FOX Factory Race Series 3.2 Internal Bypass Rear Shock delivers race-proven suspension performance for Toyota Land Cruiser 250 Series platforms, as well as compatible LC250 and GX550 applications. Designed for drivers who demand maximum control and durability, this bolt-on system utilizes advanced internal bypass technology and Dual Speed Compression Evolution (DSC EVO) adjustment to provide exceptional performance both on high-speed terrain and technical off-road trails.

The large 3.2-inch impact-extruded and CNC-machined 6061-T6 aluminum shock body features a durable Type II anodized finish for corrosion resistance and long service life. FOX patented internal bypass technology creates multiple damping zones within the shock, allowing fluid to bypass the piston in the ride zone for comfort while progressively increasing damping force during heavy compression and rebound. This design helps control hard bottom-outs, reduce harsh top-outs, and improve landing stability.

A finned remote reservoir increases oil capacity for improved heat dissipation and houses an internal floating piston along with a DSC EVO adjuster. Using Variable Valve Control (VVC) technology, the high-speed compression circuit can be tuned independently without adding preload to the shim stack. This allows drivers to increase resistance to large impacts while maintaining excellent small-bump sensitivity. The result is a highly tunable suspension system delivering race-bred performance, improved articulation, and confident handling across demanding terrain.

Features and Benefits:

• 883-26-169 FOX Factory Race Series 3.2 Internal Bypass Rear Shock for Toyota Land Cruiser 250 Series
• Compatible with LC250, GX550, and 4Runner platforms
• 3.2" impact-extruded and CNC-machined 6061-T6 aluminum shock body
• Type II anodized finish for corrosion resistance and durability
• Patented internal bypass technology with position- and velocity-sensitive damping
• A finned remote reservoir increases oil capacity and improves cooling
• Dual Speed Compression Evolution (DSC EVO) adjuster for independent damping control
• Variable Valve Control (VVC) enables high-speed compression tuning without sacrificing small-bump sensitivity
• 7/8" hard chrome-plated steel shaft for maximum strength
• Redundant sealing pack with main seal, wiper seal, and scraper seal
• Vehicle-specific tuning maximizes suspension performance
• Stem top mount with eyelet bottom mount
• Travel: 9.52"
• Extended Length: 25.8"
• Compressed Length: 16.28"
• Series: Factory Race
