2025-2026 Toyota 4Runner - Fox 2.0 Performance Series Coil-Over (0" to 2.25" Front Lift)

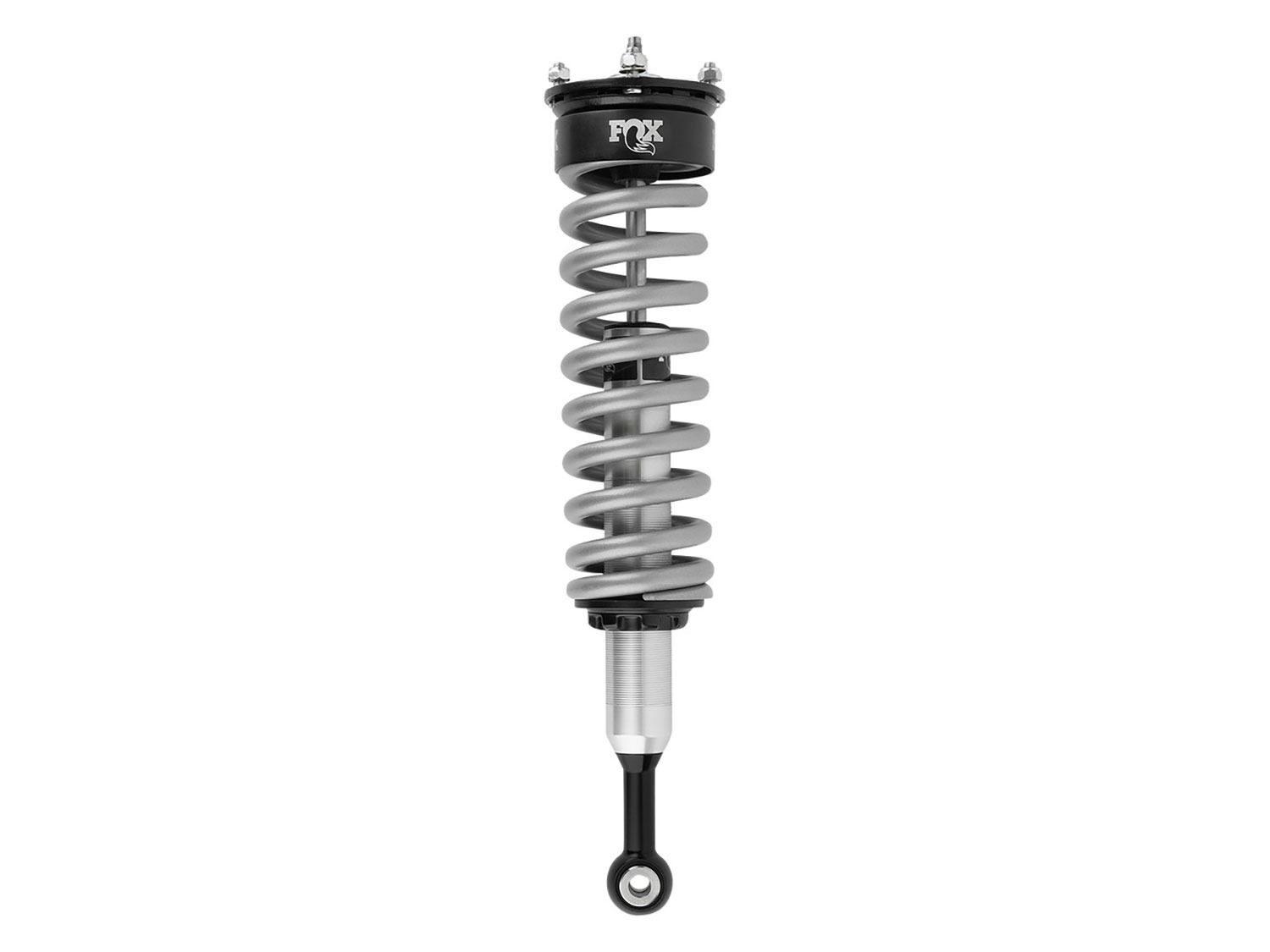

985-02-157 FOX Performance Series 2.0 Coil-Over IFP Shock is engineered as a direct bolt-on suspension upgrade for Toyota 4Runner applications. Designed to improve ride quality, leveling (provides 0 to 2.25 inches of front lift height), and off-road control, this coil-over shock combines precision construction with vehicle-specific tuning to deliver balanced performance on both pavement and rugged terrain.

The shock features a metal-impact-extruded aluminum body that improves heat dissipation and resists corrosion in harsh environments. A vehicle-specific OEM-style upper mount with a composite bushing helps isolate noise and vibration for a quieter ride. Adjustable spring preload rings allow easy ride height and preload tuning, while the included high-quality racing coil spring is selected to provide the optimal spring rate for the application.

Internally, the monotube design incorporates an Internal Floating Piston (IFP) that separates shock oil from the high-pressure nitrogen chamber. This design prevents oil aeration and maintains consistent damping performance under demanding conditions. The FOX Performance Series 2.0 Coil-Over IFP delivers predictable off-road handling while maintaining a comfortable on-road ride.

Features and Benefits:

• 985-02-157 FOX Performance Series 2.0 Coil-Over IFP Shock for Toyota 4Runner
• Provides 0 to 2.25 inches of front lift height (adjustable)
• Bolt-on installation with no modifications required
• Level the vehicle stance while maintaining OEM reliability
• Impact-extruded aluminum shock body improves cooling and corrosion resistance
• Internal Floating Piston (IFP) monotube design prevents oil aeration
• Vehicle-specific upper mount with composite bushing reduces noise and vibration
• Adjustable spring preload rings allow ride height and preload adjustment
• Factory-tuned precision valving for balanced on-road and off-road performance
• Includes a performance coil spring matched to the application
• Series: Performance
• Travel: 6.12"
• Extended Length: 24.24"
• Compressed Length: 18.12"
• Top Mount: OEM
• Bottom Mount: Eyelet
