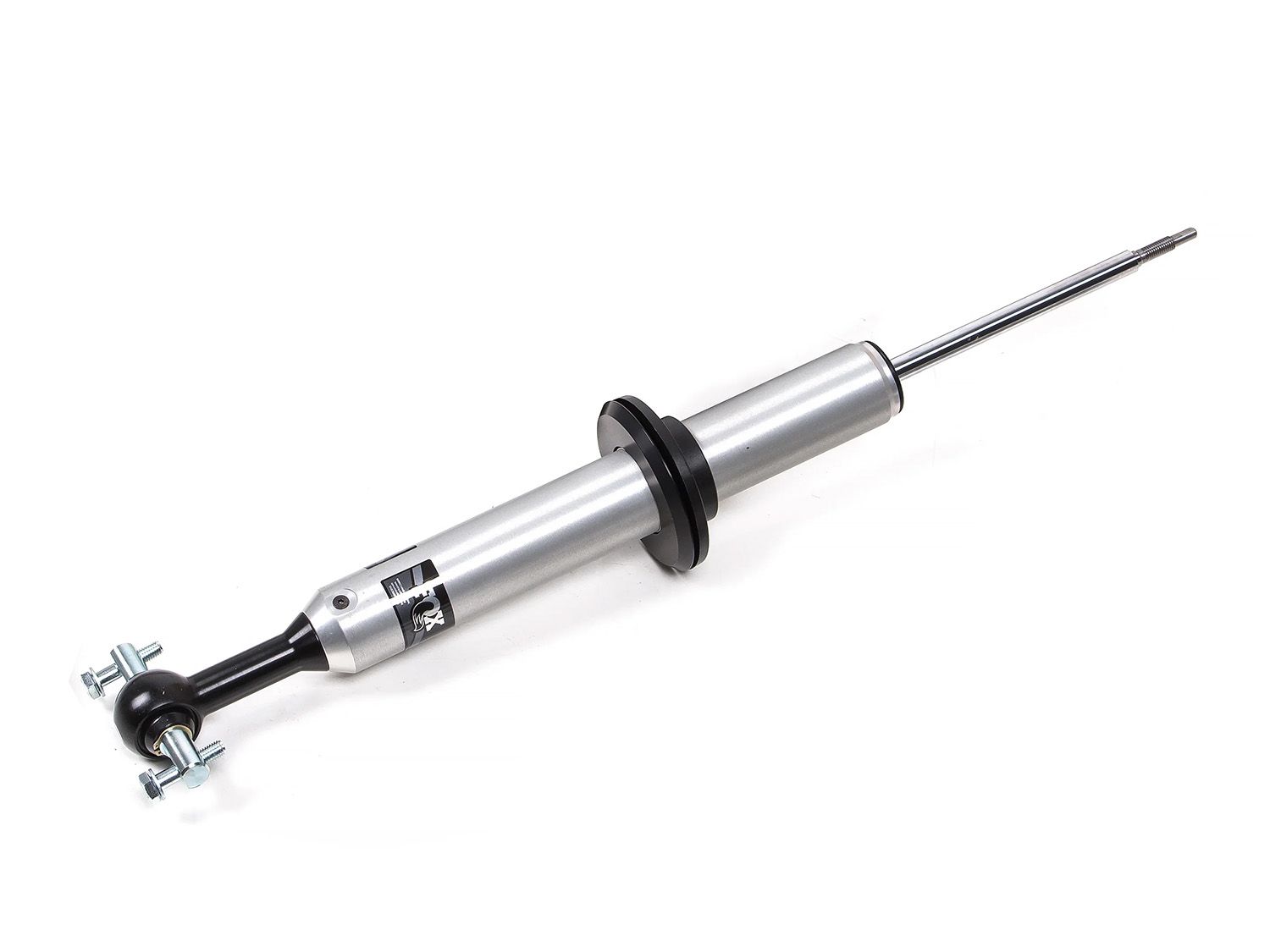

This Fox 986-62-009 Performance Series 2.0 Snap Ring IFP shock/strut is designed for Chevy Silverado 1500 4wd models that have an existing lift kit between 4 to 6 inches. Depending on the lift they will replace strut spacers or replace existing lift struts. These shocks are engineered for both superior on-road smoothness and precise off-road control.

Mono-tube Design

This Fox shock comprises a mono-tube internal nitrogen-charged reservoir enclosed by an Internal Floating Piston (IFP) segregating the charged gas from the shock oil. This feature prevents oil and nitrogen mixing, a scenario possible in stock twin-tube shocks. This segregation optimizes performance, leveraging the factory-tuned precision valving to its maximum potential.

Adjustable Lift Height

When installing the Fox Snap Ring shocks, you can choose two preset preload settings that enable a selection of 4”, and 6" front lift, providing adjustable height options. Included is a specially formed spring seat that allows the use of the factory springs and mounting hardware. This makes these shocks effectively a performance leveling kit.

Shock Construction

The one-piece 2-inch diameter shock body is built from 6061-T6 aluminum that is clear-coated to resist corrosion and rust. Mounting components are black-anodized. The 5/8-inch shock shaft is chrome-plated and heat-treated for durability.

Features and Benefits:

• Improves ride quality and off-road performance
• Internal IFP mono-tube reservoir design (Internal Floating Piston)
• 2-inch impact-extruded and CNC machined 6061-T6 anodized aluminum one-piece shock body
• Adjustable height: 4-inch and 6-inch settings (vehicle must have an existing 4 inch or 6 inch lift kit)
• Designed to replace strut spacers or existing lift struts (factory coils are required)
• The specially formed spring seat allows the use of factory coils and mounting hardware
• Massive 5/8" hard chrome-plated, heat-treated alloy steel shaft
• High-flow piston design based on race development
• Mono-tube Gas charged
• Estimated install: 3-4 hours
• Made in the USA

Shocks Specs

• Extended length: 23.25"
• Compressed length: n/a
• Travel length: 5.39"
• Top Mount: Stem
• Bottom Mount: Bar Pin
