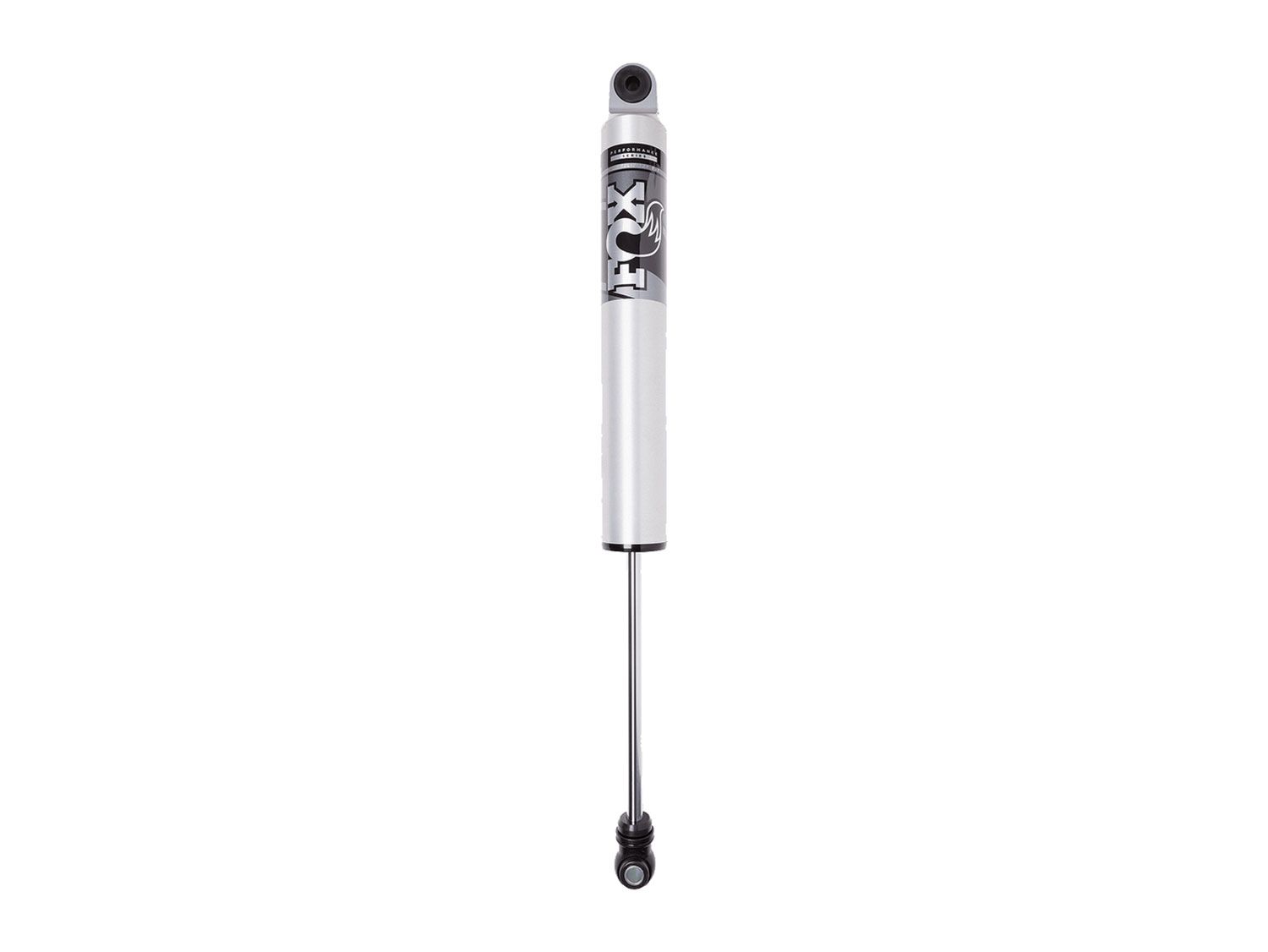

Wrangler JL 2018-2026 Jeep (w/3.5-4" lift) - Fox 2.5 Performance Series IFP HTO Shock (REAR)

The FOX 2.5 987-24-015 2.5 Performance Series Smooth Body HTO Shock for the Jeep Wrangler JL is a bolt-on shock absorber featuring position-sensitive technology, vehicle-specific valving, and larger pistons for enhanced road performance.

The 2.5-inch diameter 6061-T1 type II anodized aluminum "Smooth" body resists corrosion, efficiently dissipates heat, and looks awesome. This shock body incorporates an internal floating piston (IFP) to separate shock oil from high-pressure nitrogen, optimizing damping performance. The Hydraulic Top Out (HTO) technology provides position-sensitive rebound damping control, improving comfort and reducing harsh top-outs by directing shock oil through a secondary shim stack to slow the shock shaft speed. This is especially advantageous for vehicles with heavier, more aggressive tires and those that have been lifted beyond OEM specifications.

Upgrade to the bolt-on 2.5 Performance Series HTO Shocks for increased damping capacity, a smoother ride, and advanced position-sensitive rebound control. A great option for on and off-road conditions.

Features & Benefits:

• Large 2.5-inch impact-extruded 6061-T6 aluminum shock body
• Increased size improves oil capacity and dampening capabilities
• Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
• Excellent performance for on and off-road
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Corrosion-resistant finish
• Application-specific tune
• Fully rebuildable and re-tunable

Shock Specs

• Extended length: 30.72 inches
• Compressed length: 19.54 inches
• Travel: 11.19 inches
• Top mount: Eyelet
• Bottom mount: Eyelet
• Axle: Rear
• Fits models with 3.5 to 4 inches of suspension lift
