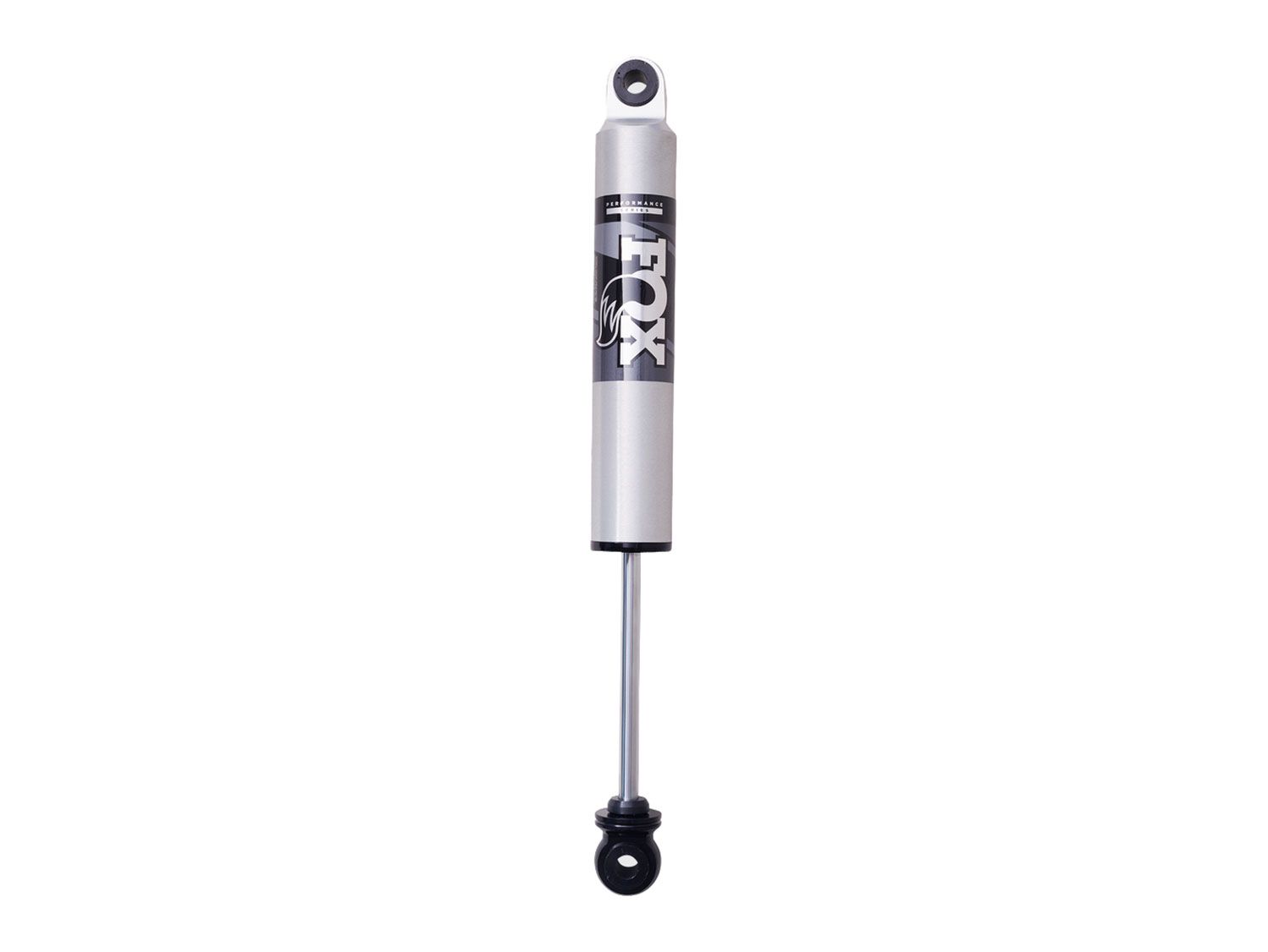

Ram 3500 2013-2026 Dodge (w/0-1.5" Rear Lift) - Fox 2.5 Performance HTO Shock (REAR)

The FOX 987-24-027 2.5 Performance Series HTO shock is a bolt-on suspension upgrade engineered for serious off-road performance and enhanced on-road comfort for the Dodge Ram 3500. Featuring position-sensitive damping, vehicle-specific valving, and larger pistons, this shock is built to handle aggressive tires and lifted applications. The 2.5-inch body, constructed from Type II anodized aluminum, resists corrosion and dissipates heat efficiently to maintain consistent performance in demanding conditions.

Equipped with FOX’s Internal Floating Piston (IFP) design, the shock keeps oil and nitrogen separated to eliminate aeration and maximize damping control. At the core of its performance is Hydraulic Top Out (HTO) technology, which slows rebound at full extension using a secondary shim stack. This helps reduce harsh top-outs and improves ride comfort, especially on vehicles with taller lifts or added weight. Whether you're tackling rugged terrain or cruising the pavement, FOX 2.5 Performance Series HTO shocks deliver confident, position-sensitive control and superior ride quality.

Features & Benefits:

• 2.5-inch shock body with Internal Floating Piston (IFP) design for optimized damping
• Hydraulic Top Out (HTO) technology offers position-sensitive rebound control.
• Vehicle-specific valving and larger pistons improve both on- and off-road performance.
• Type II anodized aluminum body efficiently dissipates heat and resists corrosion.
• Secondary shim stack slows shaft speed to reduce harsh top-outs and increase comfort.
• Ideal for vehicles with aggressive tires and higher-than-OEM lift setups
• Bolt-on installation for easy upgrade and increased damping capacity
• Delivers enhanced control and comfort across all terrain types
• Note: Sold individually, quantity (2) required

Shock Specs:

• Extended Length: 26.48"
• Compressed Length: 17.39"
• Travel Length: 9.09"
• Rear Lift Height: 2-3"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
