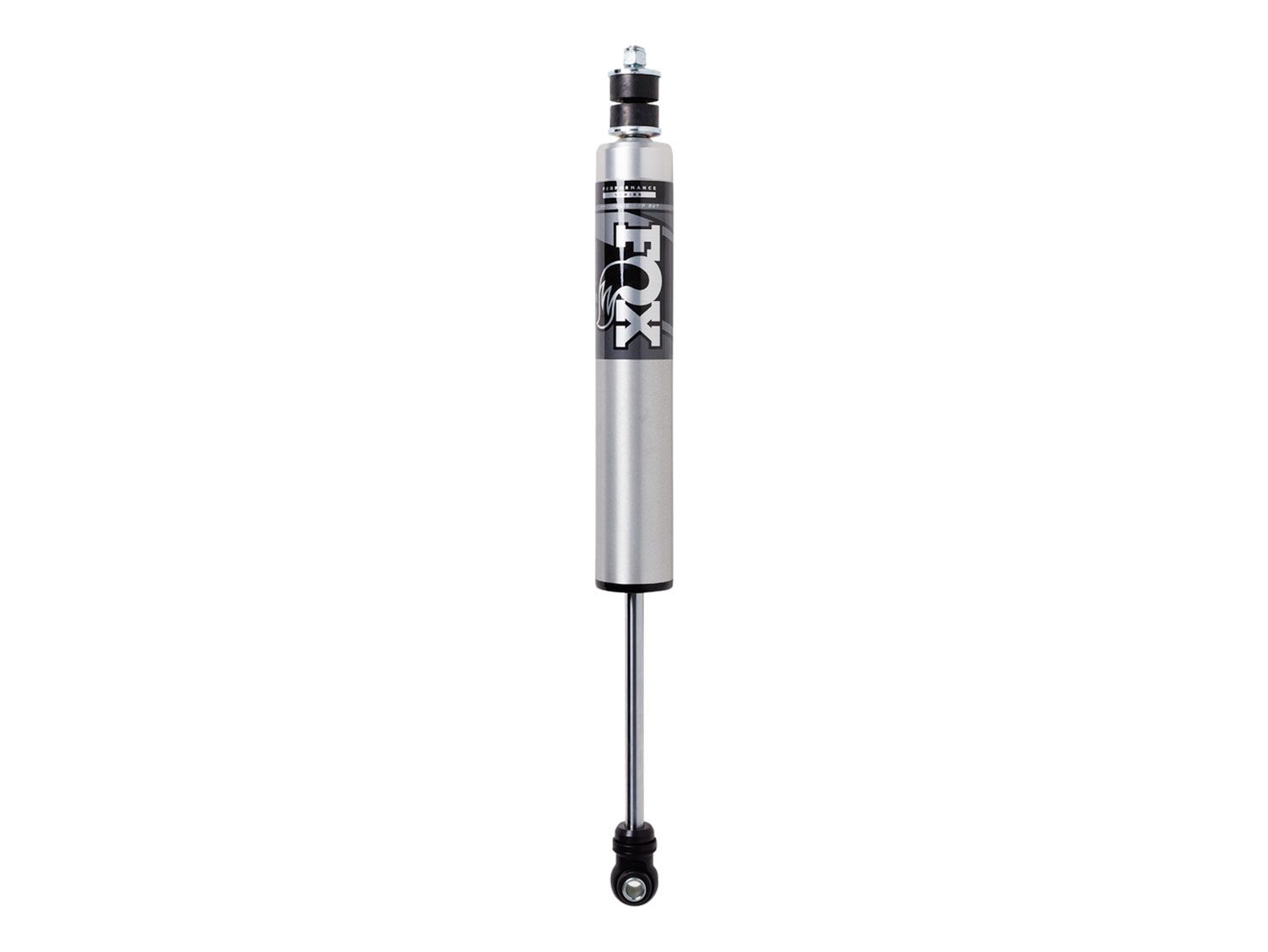

Ram 2500 2014-2026 Dodge (w/3-4" Front Lift) - Fox 2.5 Performance HTO Shock (FRONT)

The FOX 987-24-046 2.5 Performance Series HTO Shock is engineered to deliver superior on and off-road performance with advanced position-sensitive technology for Dodge Ram 2500 models. Designed as a direct bolt-on upgrade, these shocks feature vehicle-specific valving and large pistons to handle tough terrain while maintaining a smooth ride. The 2.5-inch type II anodized aluminum body provides excellent heat dissipation and corrosion resistance for long-term durability. An internal floating piston (IFP) separates the shock oil from high-pressure nitrogen, optimizing consistent damping. FOX’s innovative Hydraulic Top Out (HTO) technology delivers position-sensitive rebound control, reducing harsh top-outs and improving comfort, especially on lifted vehicles with heavier tires. Experience enhanced damping capacity and refined ride quality with FOX 2.5 Performance Series HTO Shocks.

Features & Benefits:

• Direct bolt-on installation with vehicle-specific valving
• 2.5-inch type II anodized aluminum body for superior heat dissipation and corrosion resistance
• Large piston design improves on-road comfort and off-road capability
• Internal Floating Piston (IFP) separates oil from nitrogen for consistent damping performance
• Hydraulic Top Out (HTO) technology provides position-sensitive rebound control
• Reduces harsh top-outs and increases comfort on lifted vehicles with heavy tires
• Optimized for vehicles running larger tires and higher-than-OEM ride heights
• Note: Sold individually, quantity (2) required

Shock Specs:

• Extended Length: 26.19"
• Compressed Length: 17.3"
• Travel Length: 8.89"
• Rear Lift Height: 3-4"
• Top Mount: Stem Top
• Bottom Mount: Eyelet
