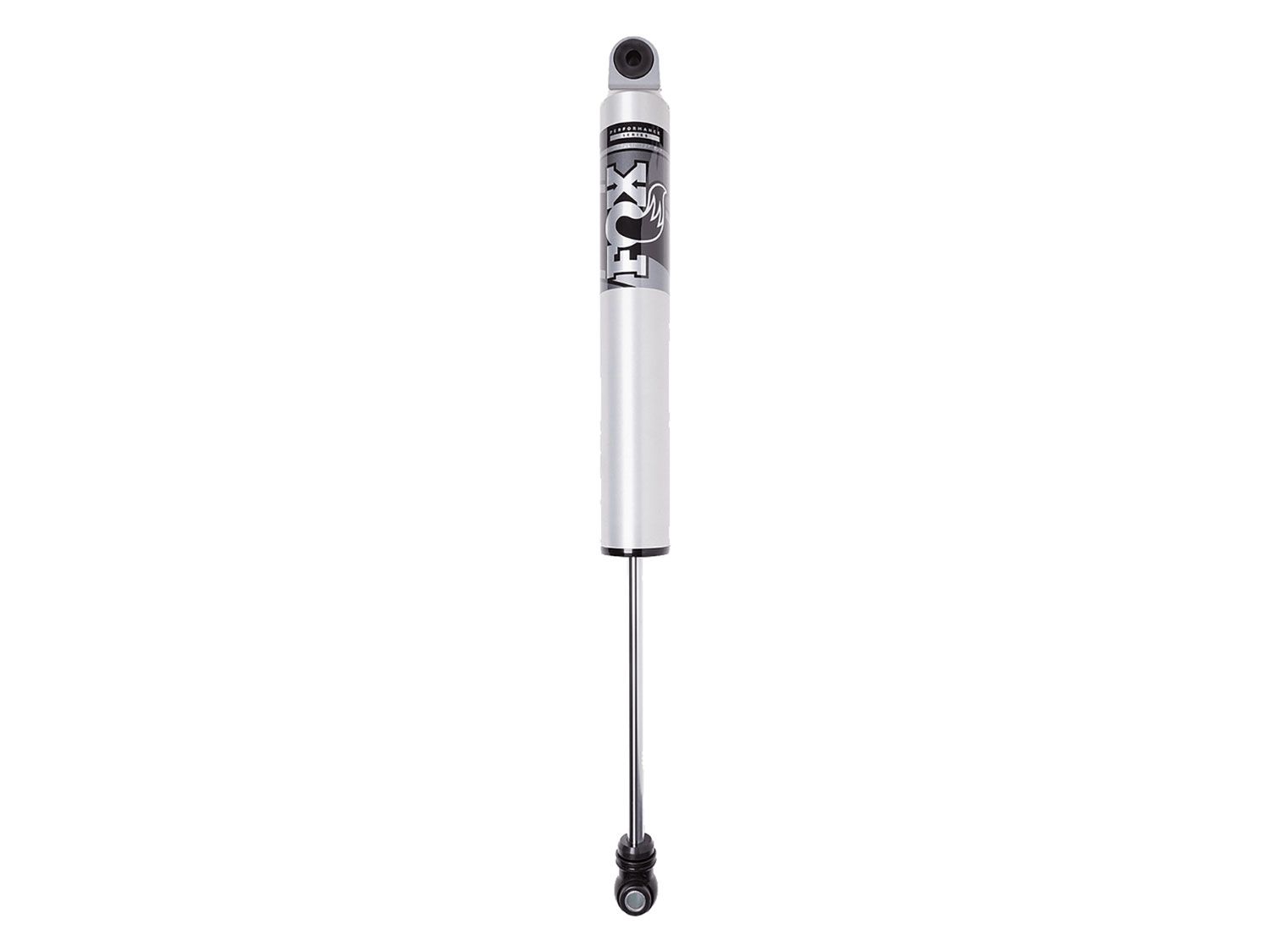

Wrangler JL 2018-2026 Jeep 4wd (w/4.5-6" lift) - Fox 2.5 Performance Series IFP HTO Shock (FRONT)

Upgrade your Jeep Wrangler JL with 987-24-060 FOX 2.5 Performance Series HTO Shock—designed to deliver enhanced on and off-road performance through race-bred, position-sensitive technology. This bolt-on solution features vehicle-specific valving and oversized pistons to dramatically improve ride comfort, control, and durability.

The shock’s 2.5-inch Type II anodized aluminum body ensures maximum heat dissipation and corrosion resistance, while the Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen for optimal damping. FOX’s innovative Hydraulic Top Out (HTO) technology adds rebound damping control, reducing harsh top-outs by forcing fluid through a secondary shim stack—especially beneficial for vehicles with lift kits or heavier off-road tires. Whether you're hitting the trails or cruising the highway, the FOX 2.5 Performance Series HTO Shock provides the comfort and control needed for today’s demanding truck and SUV builds.

Features & Benefits:

• Large 2.5-inch impact-extruded 6061-T6 aluminum shock body
• Increased size improves oil capacity and dampening capabilities
• Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
• Excellent performance for on and off-road
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8 inch hard chrome shaft
• Internal floating piston (IFP)
• Corrosion resistant finish
• Application specific tune
• Fully rebuildable and re-tunable

Shock Specs

• Extended length: 19.54 inches
• Compressed length: 30.72 inches
• Travel: 11.18 inches
• Top mount: Eyelet
• Bottom mount: Eyelet
• Axle: Front
• Fits models with 4.5-6" inches of suspension lift
