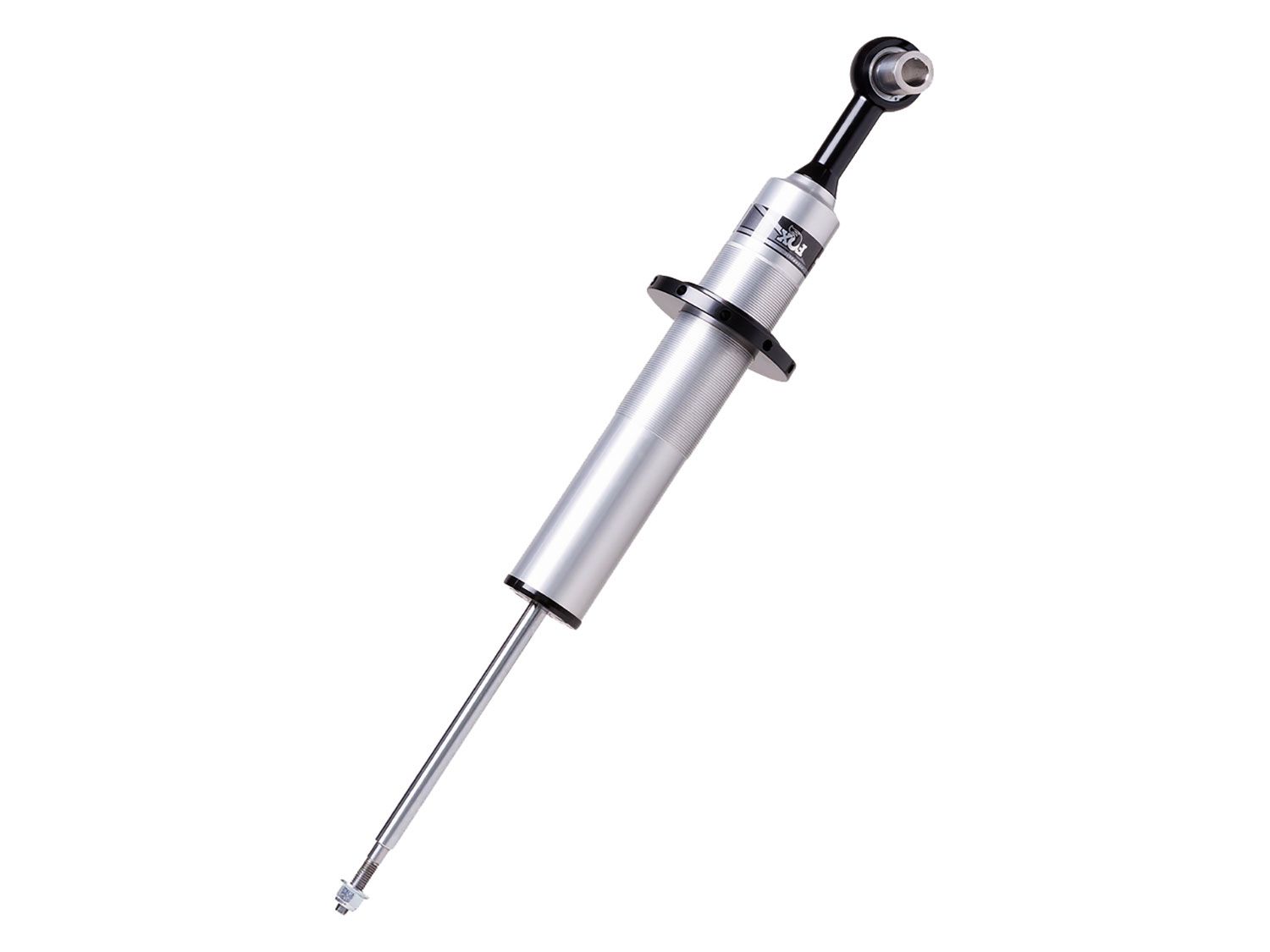

2021-2026 Ford Bronco Fox 2.5 Performance Series Rear Snap Ring HTO Shock (0-2" Rear Lift)

The FOX 987-62-001 2.5 Performance Series HTO shock is a high-performance, bolt-on upgrade for the Ford Bronco, engineered with position-sensitive damping and vehicle-specific valving to improve both on and off-road ride quality. Built with a 2.5-inch type II anodized aluminum body, it efficiently dissipates heat and resists corrosion. The internal floating piston (IFP) separates the shock oil from high-pressure nitrogen for consistent, optimized damping. Reusing the OE spring, these shocks deliver performance without the need for additional components.

Equipped with Hydraulic Top Out (HTO) technology, these shocks offer advanced rebound control by reducing harsh top-outs and improving comfort—especially useful when running larger tires or lifted suspension setups. HTO forces fluid through a secondary shim stack to manage shaft speed for a smoother ride across all terrains. Whether you're navigating city streets or tackling rugged trails, the FOX 2.5 HTO shocks enhance control, stability, and confidence in your Bronco's performance.

Features and Benefits:

• 2.5-inch type II anodized aluminum shock body for superior heat dissipation and corrosion resistance
• Adjustable snap-ring settings for rear lift heights from 0 to 2 inches
• Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen for consistent damping
• Hydraulic Top Out (HTO) technology reduces harsh top-outs and enhances ride comfort
• Position-sensitive rebound control ideal for off-road and lifted applications
• Reuses OE spring for simplified installation
• Vehicle-specific valving tuned for optimal performance on and off-road
• Bolt-on design for easy installation without additional components
• Improves damping capacity and ride quality under heavy loads or aggressive tires
• Made in the USA

Shocks Specs

• Extended length: 26.47"
• Compressed length: 18.5"
• Travel length: 7.97"
• Top Mount: Eyelet
• Bottom Mount: Reuse OE Spring
