Land Cruiser 250 Series 2024-2026 Toyota - Fox 2.5 Performance Series HD Tuned Coil-Over (0-2.25" Front Lift)

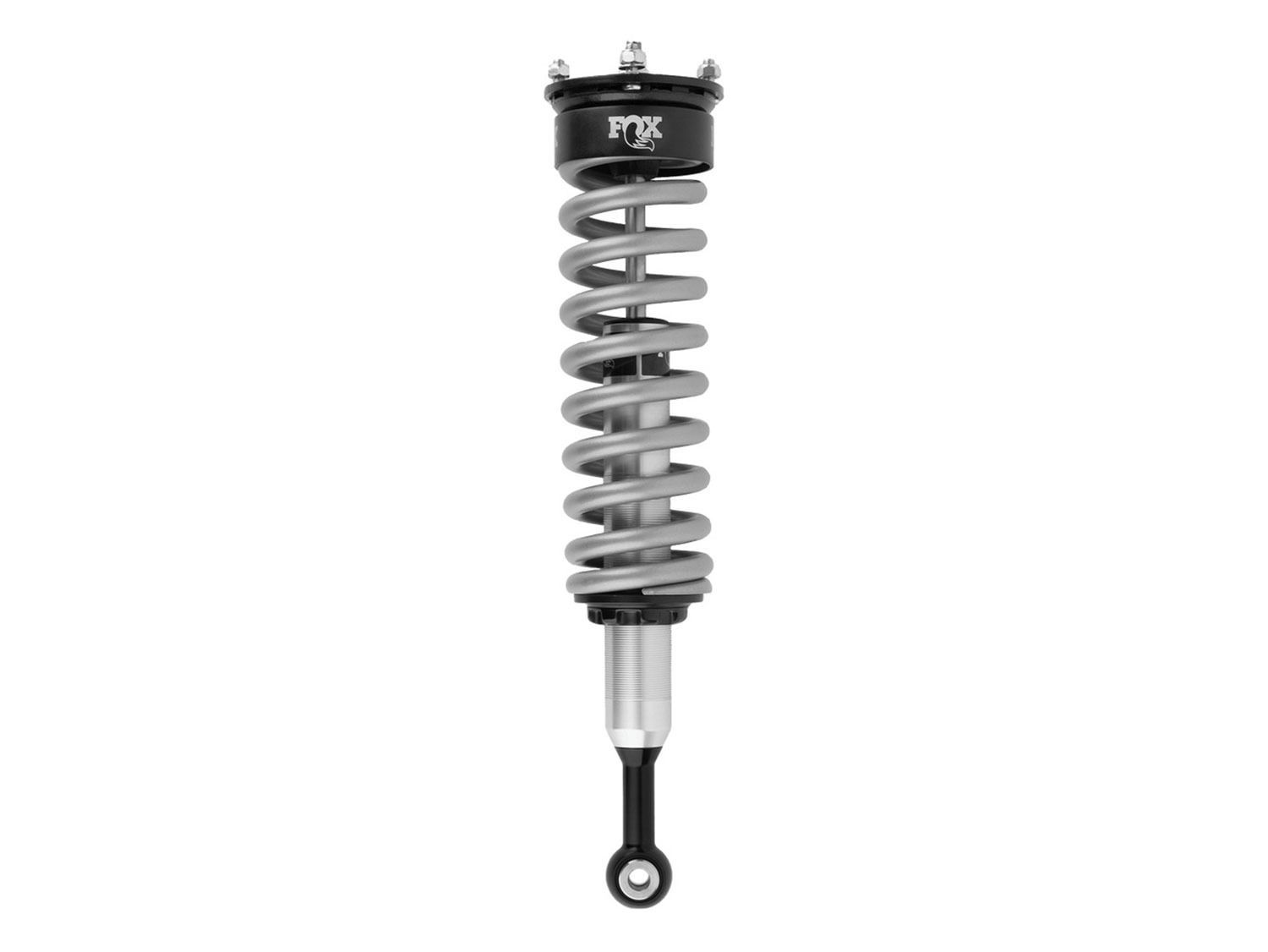

987-02-016 FOX Performance Series 2.5 Front HD Tuned Coilover is engineered for Toyota Land Cruiser 250 applications and delivers a true bolt-on performance upgrade. Designed with vehicle-specific valving for the Land Cruiser 250, this shock improves both on-road comfort and off-road control without compromising OEM reliability. The larger 2.5-inch shock body and increased piston size provide greater damping capacity while maintaining proper suspension geometry and ball joint integrity.

Built around a monotube design, this Performance Series shock utilizes a 2.5-inch impact-extruded 6061-T6 aluminum body with Type II clear anodizing for excellent heat dissipation and corrosion resistance. An internal floating piston (IFP) separates shock oil from high-pressure nitrogen, preventing aeration and ensuring consistent damping performance under demanding conditions.

With high-flow, velocity-sensitive damping and a 5/8-inch hard chrome-plated shaft, the 987-02-016 is designed to deliver controlled suspension movement across varying terrain. The OEM-style top mount and eyelet bottom mount make installation straightforward, making it a premium suspension solution for drivers seeking enhanced ride quality and increased off-road capability.

Features and Benefits:

• 987-02-016 FOX Performance Series 2.5 Front Shock for Land Cruiser
• Tuned for Heavy Duty use (front winch, HD bumper, etc)
• Provides 0 to 2.25 front lift
• Vehicle-specific valving for LC250, GX550, and 4Runner applications
• 2.5” impact-extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating for corrosion resistance
• Monotube design with internal floating piston (IFP)
• High-flow velocity-sensitive damping
• 5/8” hard chrome-plated shaft for durability
• Maintains OEM reliability and suspension behavior
• OEM top mount with eyelet bottom mount
• Travel: 6.46"
• Extended Length: 23.26"
• Compressed Length: 16.8"
• Series: Performance
