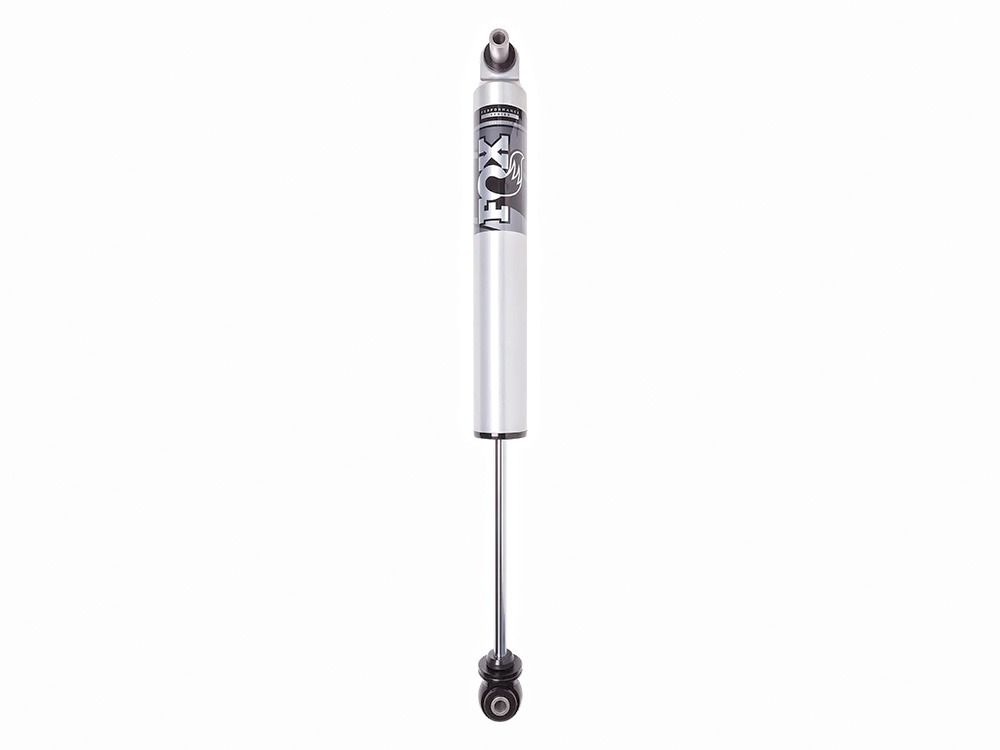

Ram 3500 2013-2025 Dodge 4wd (w/0-1.5" lift) - Fox 2.5 Performance Series IFP HTO Shock (FRONT)

The FOX 2.5 987-24-004 2.5 Performance Series Smooth Body HTO Shock for the Ram 3500 is a bolt-on shock absorber featuring position-sensitive technology, vehicle-specific valving, and larger pistons for enhanced road performance.

The 2.5-inch diameter 6061-T1 type II anodized aluminum "Smooth" body resists corrosion, efficiently dissipates heat, and looks awesome. This shock body incorporates an internal floating piston (IFP) to separate shock oil from high-pressure nitrogen, optimizing damping performance.

The Hydraulic Top Out (HTO) technology provides position-sensitive rebound damping control, improving comfort and reducing harsh top-outs by directing shock oil through a secondary shim stack to slow the shock shaft speed. This is especially advantageous for vehicles with heavier, aggressive tires and those lifted beyond OEM specifications.

Upgrade to the bolt-on 2.5 Performance Series HTO Shocks for increased damping capacity, a smoother ride, and advanced position-sensitive rebound control. A great option for on and off-road conditions.

Features & Benefits:

• Large 2.5-inch impact-extruded 6061-T6 aluminum shock body
• Increased size improves oil capacity and dampening capabilities
• Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
• Excellent performance for on and off-road
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Corrosion resistant finish
• Application specific tune
• Fully rebuildable and re-tunable

Shock Specs

• Extended length: 21.990 inches
• Compressed length: 14.800 inches
• Travel: 7.190 inches
• Top mount: Stem
• Bottom mount: Eyelet
